Taidacent OPA541 OP AMP High Power Monolithic Operational Amplifier 5A Current High Voltage Audio Amplifier Sound Amplifier Board
- Name: OPA541 High Voltage High Current Power Amplifier; Size: 96mm*64mm*41mm (length, width, height); Supply voltage range: ±10V~±40V
- The OPA541 module is a power operational amplifier capable of operating with a power supply up to 40V and providing continuous output current up to 5A. The internal current limiting circuit can be controlled by the user using a single external resistor to protect the amplifier and load from fault conditions.
+
+
Overview
Specs
Reviews
Name: OPA541 High Voltage High Current Power Amplifier;
Size: 96mm*64mm*41mm (length, width, height);
Supply voltage range: ±10V~±40V
The OPA541 module is a power operational amplifier capable of operating with a power supply up to 40V and providing continuous output current up to 5A. The internal current limiting circuit can be controlled by the user using a single external resistor to protect the amplifier and load from fault conditions.

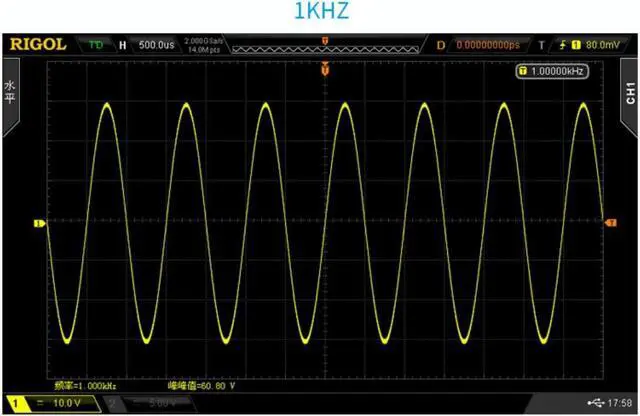

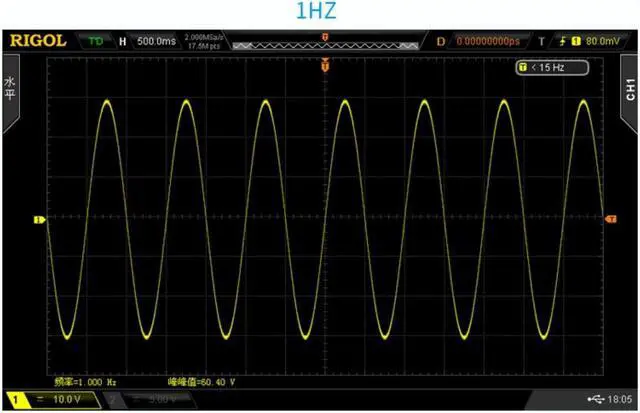

Suitable for motor-driven speaker drive, transformer drive and audio amplifier. It can also amplify triangle wave, sine wave and square wave signals.
The power consumption of the module is large, and the power supply requires a certain margin. It is recommended to use a power supply with a current driving capacity greater than twice the output current. The module can only be powered by dual power supplies. In order to avoid unnecessary interference, it is recommended to use a linear power supply, the power supply should not exceed plus or minus 40V.
The output signal is recommended to use the SMA to BNC cable to directly observe the effect of the oscilloscope. Poor contact or poor quality wires may cause signal attenuation or excessive noise.
Size: 96mm*64mm*41mm (length, width, height);
Supply voltage range: ±10V~±40V
The OPA541 module is a power operational amplifier capable of operating with a power supply up to 40V and providing continuous output current up to 5A. The internal current limiting circuit can be controlled by the user using a single external resistor to protect the amplifier and load from fault conditions.
Suitable for motor-driven speaker drive, transformer drive and audio amplifier. It can also amplify triangle wave, sine wave and square wave signals.
The power consumption of the module is large, and the power supply requires a certain margin. It is recommended to use a power supply with a current driving capacity greater than twice the output current. The module can only be powered by dual power supplies. In order to avoid unnecessary interference, it is recommended to use a linear power supply, the power supply should not exceed plus or minus 40V.
The output signal is recommended to use the SMA to BNC cable to directly observe the effect of the oscilloscope. Poor contact or poor quality wires may cause signal attenuation or excessive noise.
