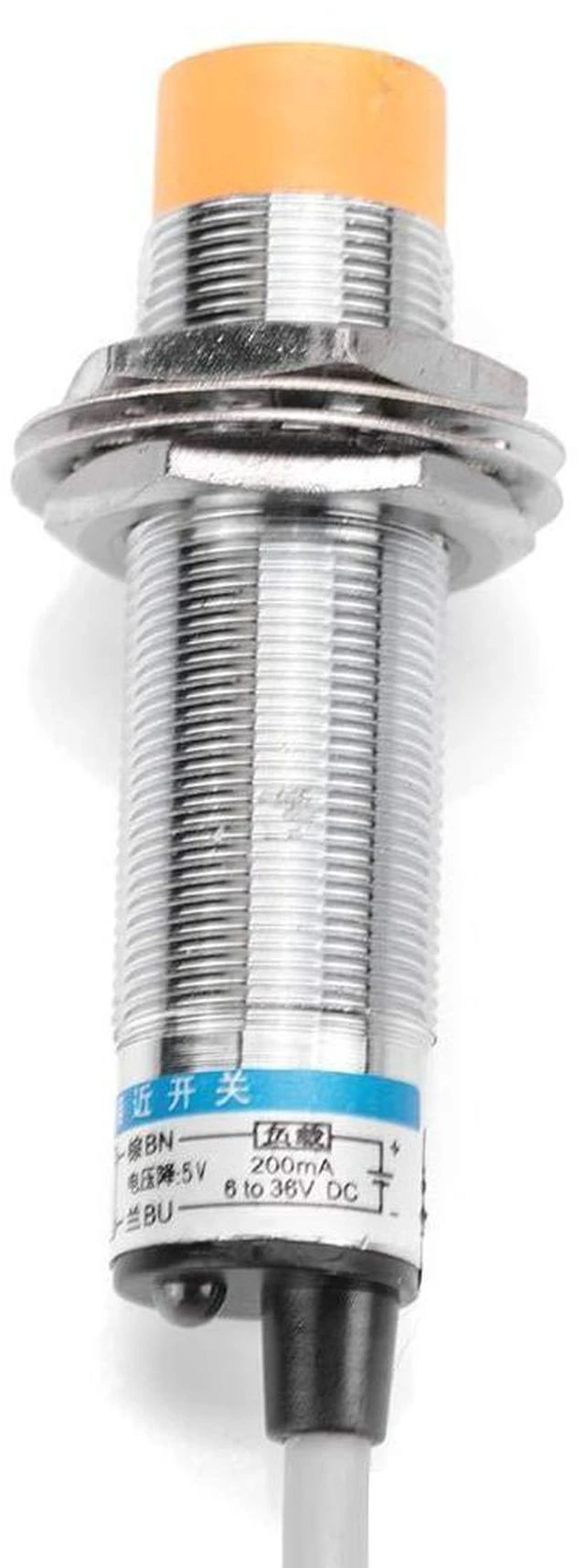

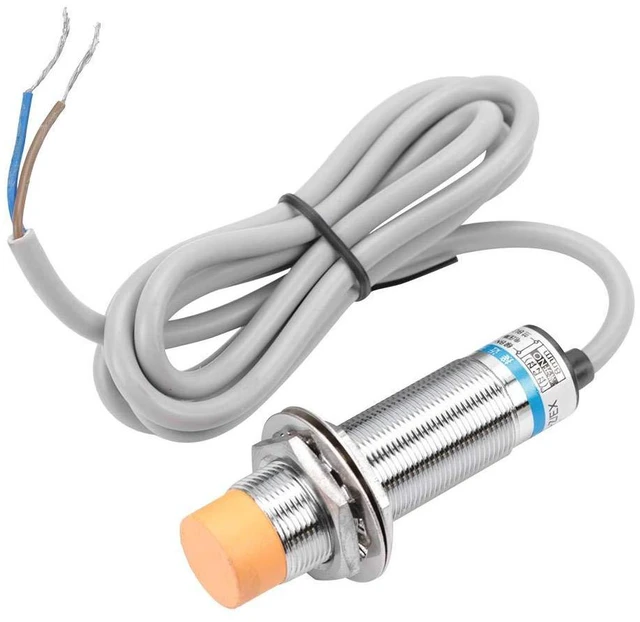

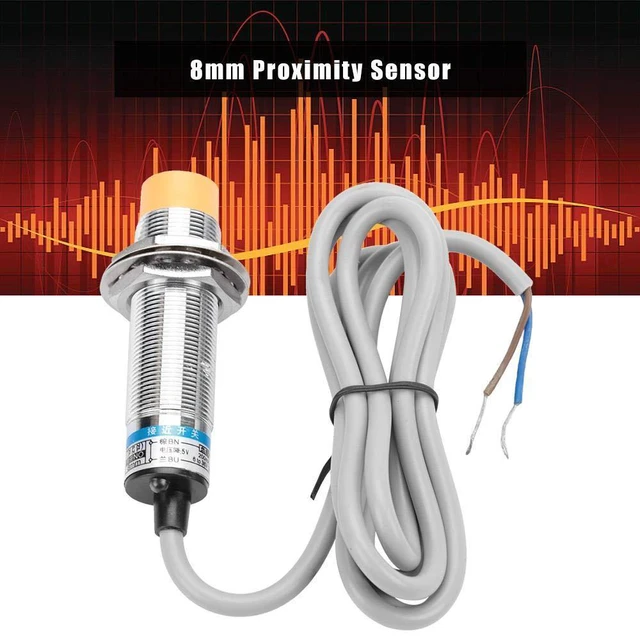

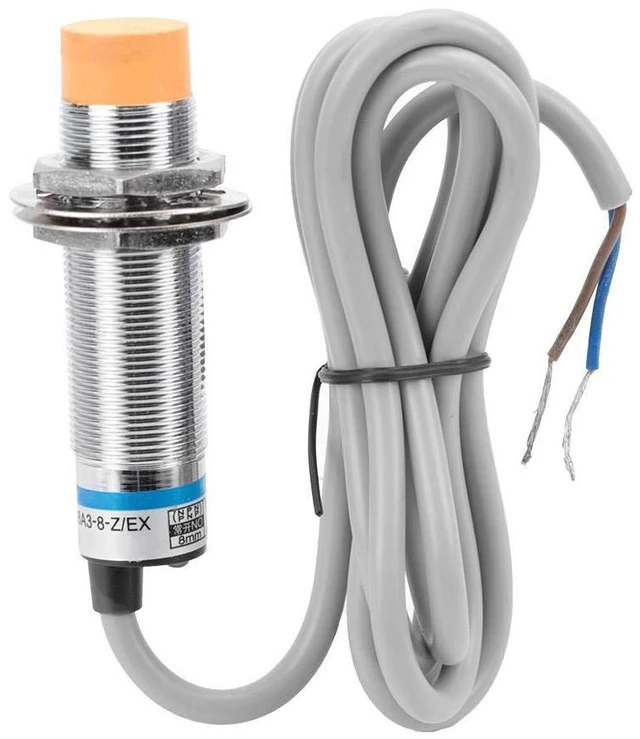

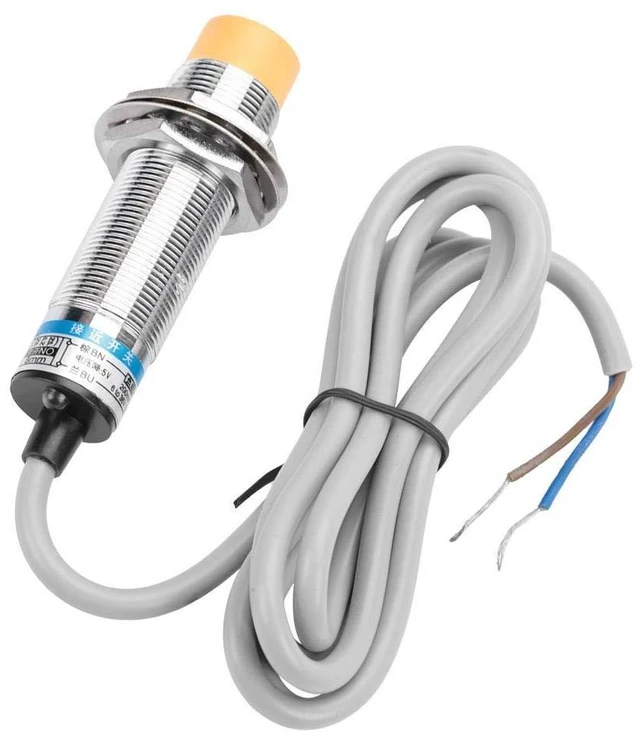

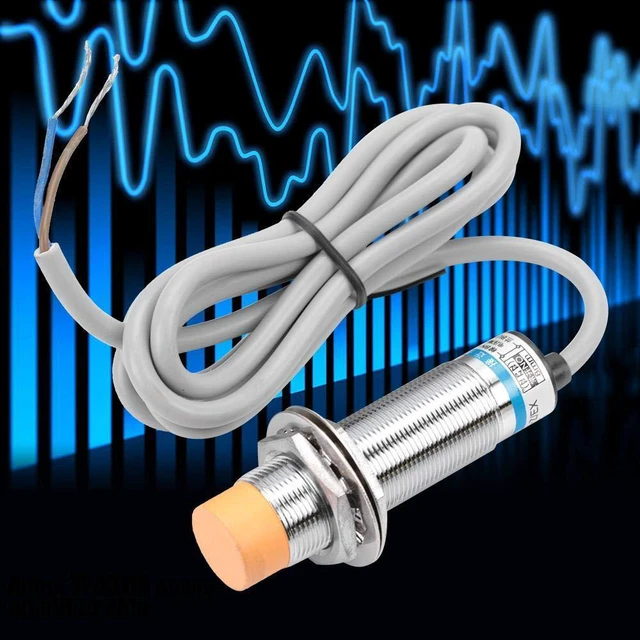

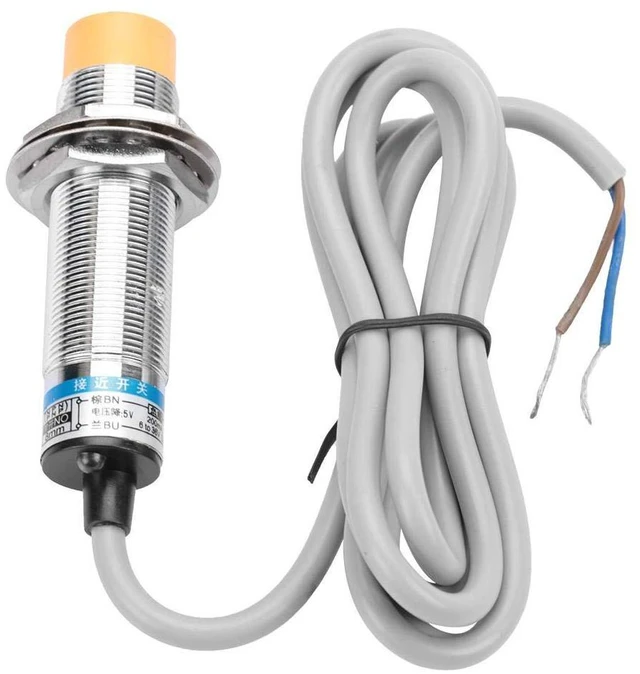

DC12-24V(6-36V) Proximity Switch2-Wire Normally Open Inductive Proximity Switch Sensor8mm NPN NO Proximity Switch Sensor

Features: This is a normally open proximity switch sensor with detection distance of 8mm to 10mm. When proximity switch is close to some target object, it will send out control. Widely used in automatic control industry for detecting, controlling, and non- switching. High sensitivity, quick response, Non- detection avoids the sensor and the target object from damages.
Specification: Detection
distance: 8mm±10%
Setting distance: 0-7mm
Delay distance: <10% of detection distance Detection object: Magnetic metal(The detection distance decreases when it is non-magnetic metal) Standard detection object: Iron 30*30*1mm Response frequency: 0.5kHz Supply voltage: DC12-24V (6-36V) impulse (P-P) below 10% Withstand voltage: AC1000V 50/60Hz 1min consumption: N.P type: <13mA, D type: <0.8mA, A type: <1.7mA Control output: N.P type: <300mA, D type: <200mA, A type: <400mA
Loop: N.P.D type: reverse connection, absorption, load short circuit, type A: absorption Ambient temperature and humidity: -30-65, 35-95%RH Temperature influence: Temperature range -30-65, at 23, ±15% detection distance; Temperature range -25-60, at 23, ±10% 0detection distance Insulation impedance: > 50M
Housing material: brass plating Detection ABS
Package list: 1 *
Inductive Proximity Switch Note:
1. Please allow slight error due to manual measurement.
2. Different monitor colors may be different. Thanks for your kind understanding.
