Solar Combiner Box, 1500V DC 32A 4P IP66 Insulated Switch Professional Power Solar PV DC Switch for System RV Boats (Basic)

Product description IP66 rated water and dust resistant Selected materials Use of high-strength waterproof ring. Waterproof and dustproof effect. Fast arc extinguishing Adopt magnetic double arc extinguishing, can effectively inhibit the arc Insulation and fireproof material Using imported PPE material Insulation and fireproof, use with confidence. Equipped with safety padlock Equipped with safety padlock, safe and reliable. The DC main switch is used to turn off all poles of the solar module. It is mounted on the string wire between the module and the grid inverter or charge controller. This is a high-quality circuit breaker.

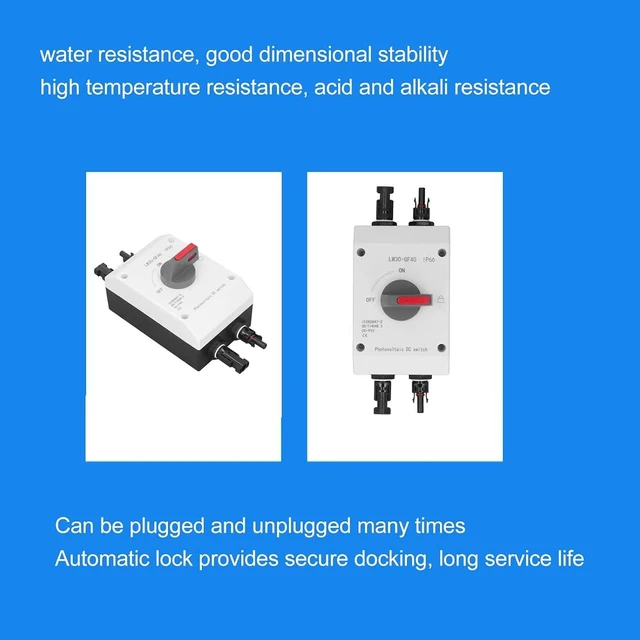

Depending on the configuration, it can switch up to 32A of switching current at voltages up to 1200V. Delicate housing, well selected materials, PC flame retardant material, good insulation, high water resistance, good dimensional stability, high temperature resistance, acid and alkali resistance. Can be plugged and unplugged repeatedly, automatic locking provides safe docking and long service life. Compact design, suitable for places with limited space. Guide rail mounting for easy installation. Load breaking up to 8 times rated current, making it ideal for motor isolation.

Application Scenarios Photovoltaic power generation Wind power generation New Energy Electrical Engineering Specification PV DC disconnect switch
Material: PC flame retardant Number of poles4P Max. rated voltage1200V Max.
insulation voltage: 1200V
Rated current: 32A
Waterproof grade: IP66
Standard: IEC60947-3
Ambient temperature: -25-+85
Insulation voltage: DC1500V
Connection: MC4/M20/M25 Packing List Isolation switch×1 Mounting screws×4 Expansion tube×4 Connector accessories×16 (4 sets) Special wrench×1 Outdoor fuse×2
