Micro Inverter, 120V 230V Solar Grid Tie Inverter IP65 DC to AC Control, Pure Sine Waving Inverter, MPPT Solar Input 20V-60V Output 80V-280V, for Solar System
- WITH HIGH EFFICIENCY: Micro inverter can independently control each component in parallel, to minimize safety risks. The maximum power point tracking function effectively tracks and locks the maximum power output of the solar panel. When the maximum power point of the solar panel is tracked, the power stable output is automatically locked. Two independent maximum power point track(MPPT)

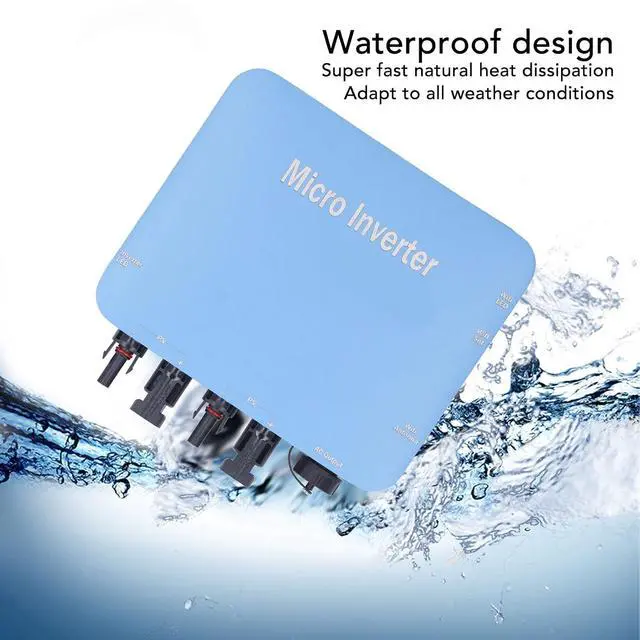

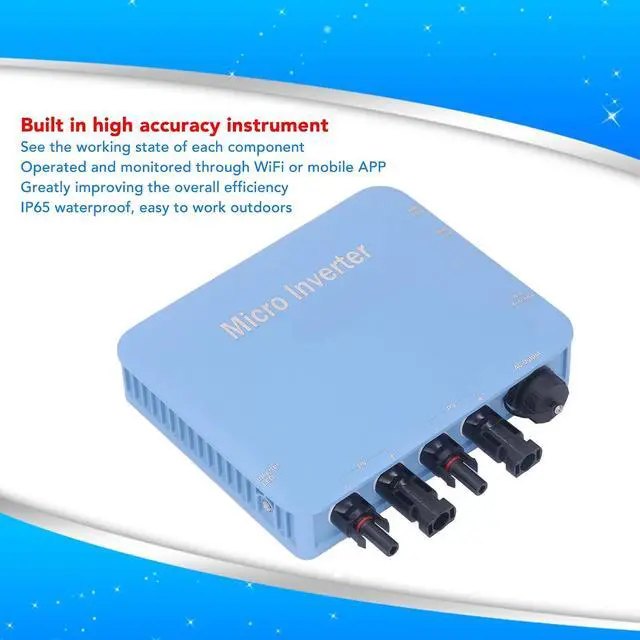

- CONTROL: Inverter built in instrument, you can see the working state of each component, can be operated and monitored through or mobile APP, greatly improving the overall efficiency. IP65 easy to work outdoors
- PURE SINE OUTPUT: Micro inverter output voltage is stable, pure, can adapt to almost all load electrical appliances

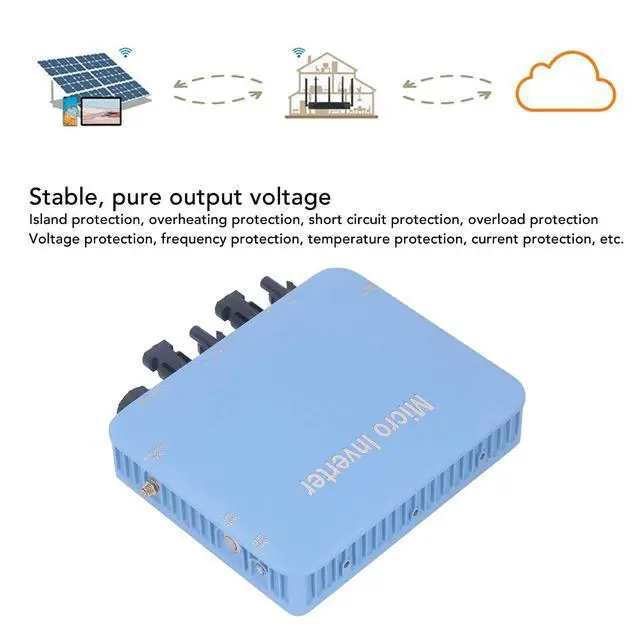

- MULTIPLE FEATURES: Solar inverter has island : when power grid failure or power failure inverter automatically stop output, overheating , short circuit , overload , voltage , frequency , temperature , current , etc.

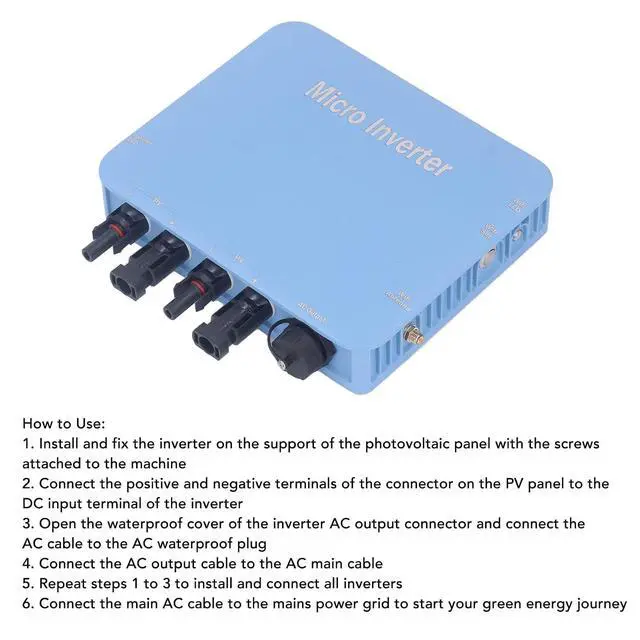

- SIMPLE INSTALLATION: Adopt standard input port, bring simpl
+
+
Overview
Specs
Reviews

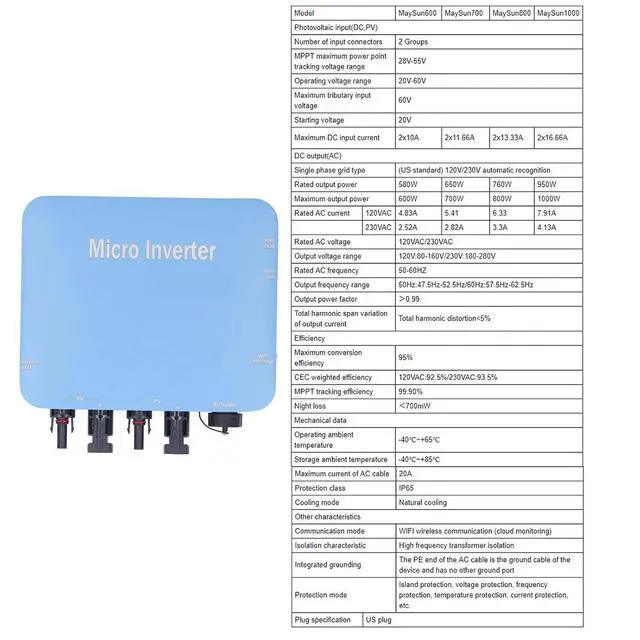

Specification: Item
Type: Micro
Grid Connected Inverter Model: MaySun600 MaySun700 MaySun800 MaySun1000 Photovoltaic input(DC, PV)
Number of input connectors: 2 Groups MPPT maximum power point tracking voltage range: 28V-55V
Operating voltage range: 20V-60V
Maximum tributary input voltage: 60V
Starting voltage: 20V
Maximum DC input current: 2x10A 2x 11.66A 2x 13.33A 2x 16.66A DC output (AC)
Single phase grid type: (US standard) 120V/230V automatic recognition
Rated output power: 580W 650W 760W 950W
Maximum output power: 600W 700W 800W 1000W
Rated AC current: 120VAC 4.83A 5.41 6.33 7.91A 230VAC 2.52A 2.82A 3.3A 4.13A
Rated AC voltage: 120VAC/230VAC
Output voltage range:
120V:
80-160V/230V: 180-280V
Rated AC frequency: 50-60HZ
Output frequency range:
50Hz: 47.5H
z- 52.5H z/60Hz: 57.5H z- 62.5H z
Output power: factor? 0.99 Total harmonic span of output current Total harmonic distortion
Efficiency Maximum conversion efficiency: 95%
CEC weighted efficiency:
120VAC: 92.5
%/230VAC: 93.5 %
MPPT tracking efficiency: 99.90 % Night loss? 700mW Mechanical data
Operating ambient temperature: -40? ~+65?
Storage ambient temperature: -40? ~+85? Maximum current of
AC cable: 20A
class: IP65
Cooling mode: cooling Other characteristics Communication mode communication (cloud monitoring) Isolation characteristic transformer isolation Integrated grounding The PE end of the AC cable is the ground cable of the device and has no other ground port mode Island, voltage, frequency, temperature, current, etc.
Plug specification: US plug

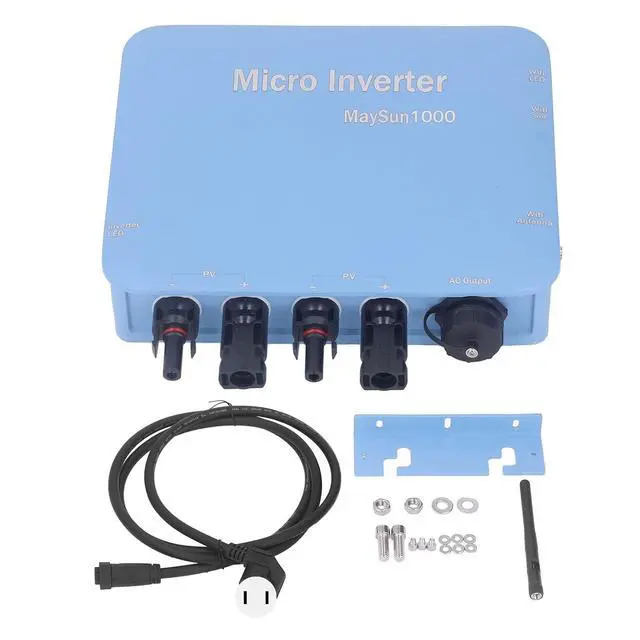

PackageList: 1 x Host 1 x Antenna 1 x AC Power Cable 1 x Mounting Bracket 5 x Mounting Screws 2 x Nut 8 x Gasket 1 x User
Type: Micro
Grid Connected Inverter Model: MaySun600 MaySun700 MaySun800 MaySun1000 Photovoltaic input(DC, PV)
Number of input connectors: 2 Groups MPPT maximum power point tracking voltage range: 28V-55V
Operating voltage range: 20V-60V
Maximum tributary input voltage: 60V
Starting voltage: 20V
Maximum DC input current: 2x10A 2x 11.66A 2x 13.33A 2x 16.66A DC output (AC)
Single phase grid type: (US standard) 120V/230V automatic recognition
Rated output power: 580W 650W 760W 950W
Maximum output power: 600W 700W 800W 1000W
Rated AC current: 120VAC 4.83A 5.41 6.33 7.91A 230VAC 2.52A 2.82A 3.3A 4.13A
Rated AC voltage: 120VAC/230VAC
Output voltage range:
120V:
80-160V/230V: 180-280V
Rated AC frequency: 50-60HZ
Output frequency range:
50Hz: 47.5H
z- 52.5H z/60Hz: 57.5H z- 62.5H z
Output power: factor? 0.99 Total harmonic span of output current Total harmonic distortion
Efficiency Maximum conversion efficiency: 95%
CEC weighted efficiency:
120VAC: 92.5
%/230VAC: 93.5 %
MPPT tracking efficiency: 99.90 % Night loss? 700mW Mechanical data
Operating ambient temperature: -40? ~+65?
Storage ambient temperature: -40? ~+85? Maximum current of
AC cable: 20A
class: IP65
Cooling mode: cooling Other characteristics Communication mode communication (cloud monitoring) Isolation characteristic transformer isolation Integrated grounding The PE end of the AC cable is the ground cable of the device and has no other ground port mode Island, voltage, frequency, temperature, current, etc.
Plug specification: US plug
PackageList: 1 x Host 1 x Antenna 1 x AC Power Cable 1 x Mounting Bracket 5 x Mounting Screws 2 x Nut 8 x Gasket 1 x User
