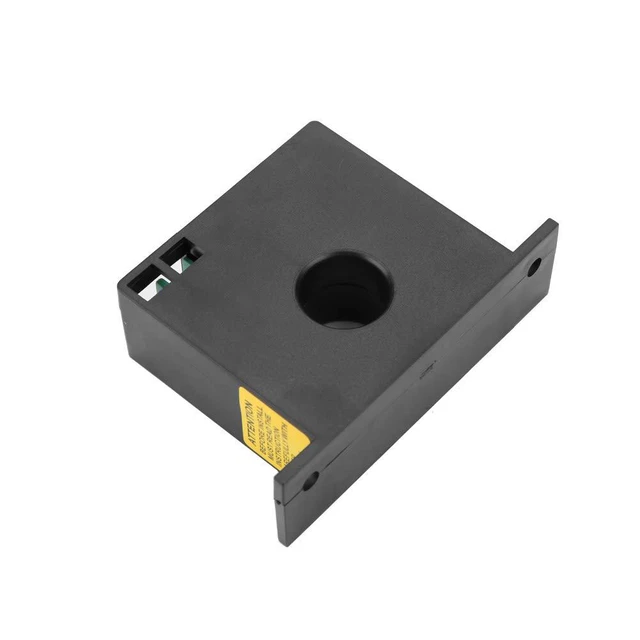

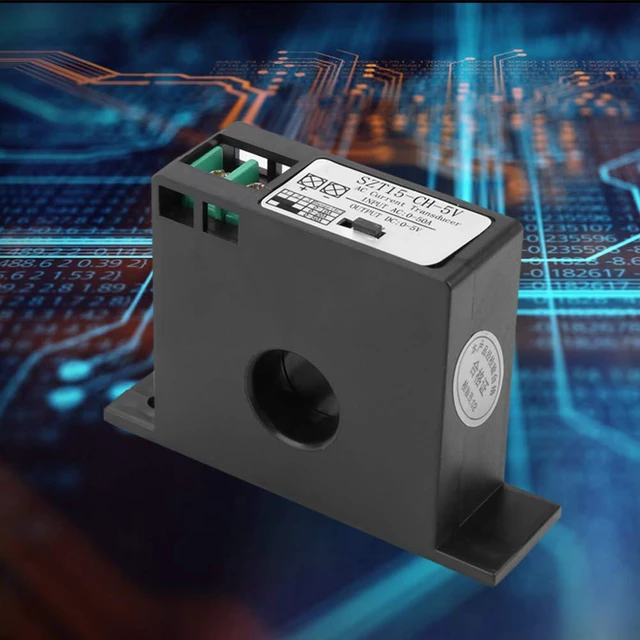

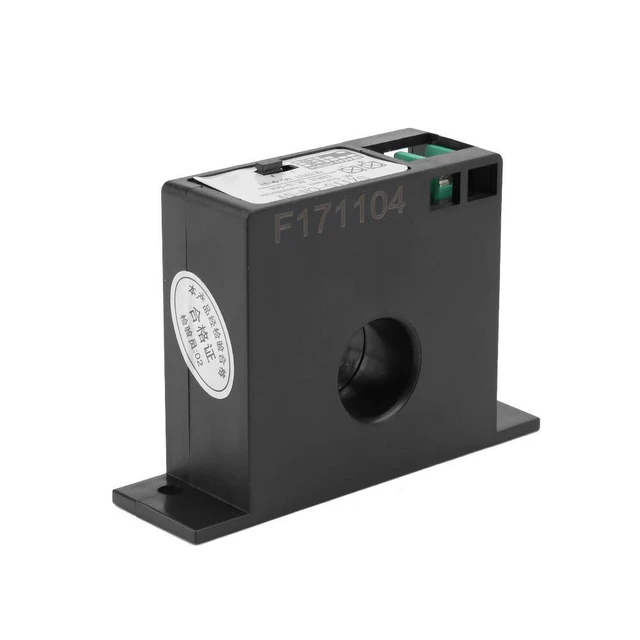

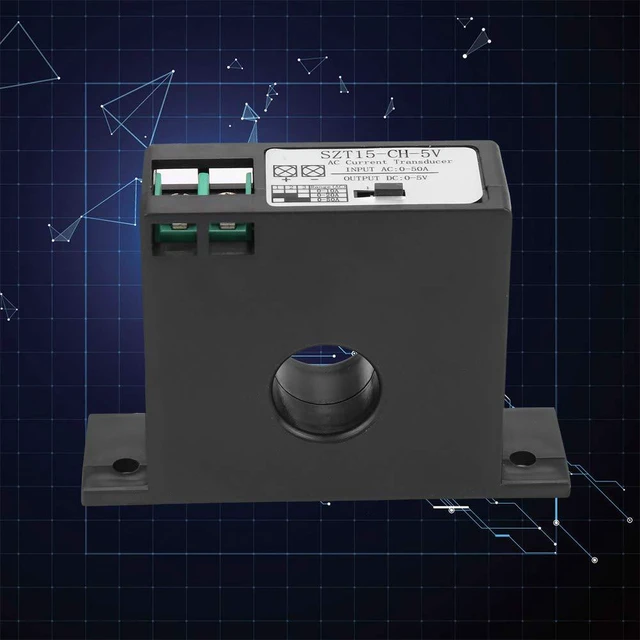

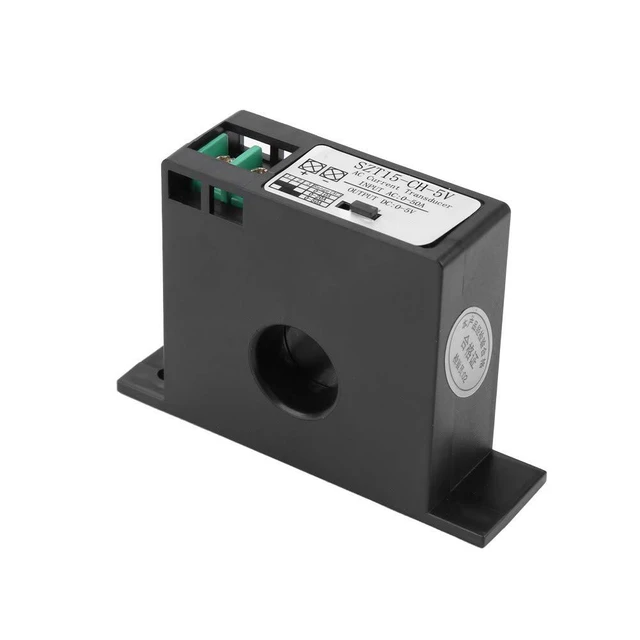

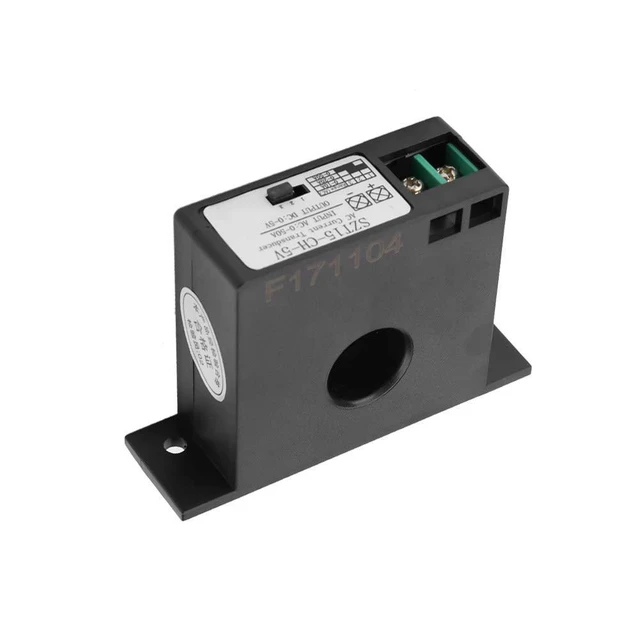

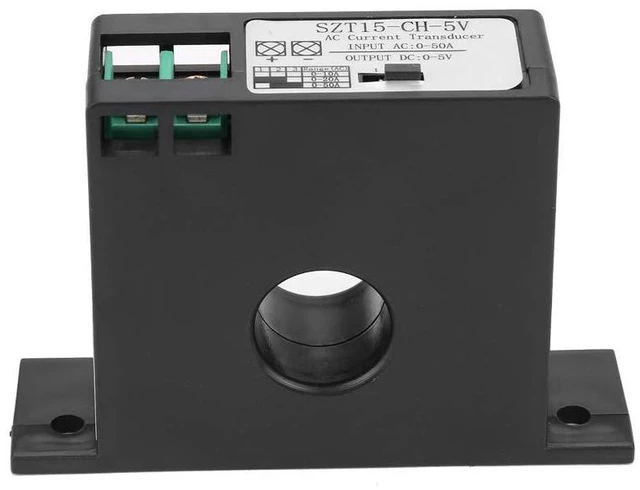

SelfPowered AC Current Transmitter, Current Transducer, for AC Current Monitoring AC Current Measurement

1. Mutual inductance current monitoring has high current detection accuracy and isolation of input and output.
2. Self-powered, no external power supply required.
3. Easy to install and use, no need to connect into the circuit when measuring.
4. Measured current AC 0-10/20/50A, output 0-5V.
5. Straight-through structure design, isolation withstand voltage up to 2000V.
Spec:
Features:
1. Mutual inductance current monitoring has high current detection accuracy and isolation of input and output.
2. Self-powered, no external power supply required.
3. Easy to install and use, no need to connect into the circuit when measuring.
4. Measured current AC 0-10/20/50A, output 0-5V.
5. Straight-through structure design, isolation withstand voltage up to 2000V.
6. Hysteresis is less than 1% and can be used under strong magnetic conditions.
7. The outer casing is made of self-extinguishing material ABS.
8. Suitable for AC current measurement and monitoring, AC motor overload, electronic switch of automatic control system and so on.
Specification:
Model: SZT15-CH-5V
Supply power: Not required
Output type: 0-5V
Input straight-through current: AC 0-10A/20A/50A
Switch on minimum: 0.5 ± 0.2A
Maximum overload of straight-through current: 200%
Accuracy: ±1%
Power consumption:? 1W
Leakage current:? 1mA
Hysteresis:? 1%
Linearity: Straight-through
wire diameter: 0.35 -20mm
Response time:? 200ms
Withstand voltage: 2000VAC 50/60Hz 1min
Working environment: -20~60?, 5-95%RH: 61.5 *90*26mm / 2.4 * 3.5 * 1.0 in
Hole diameter: 20mm / 0.8 in
Package weight: Approx. 98g/ 3.4 oz
Package list: 1 * AC
Current Transmitter Note:
1. Due to the difference between monitors and light effects, the pictures may not reflect the actual color of the item.
2. Please allow slight error due to manual
