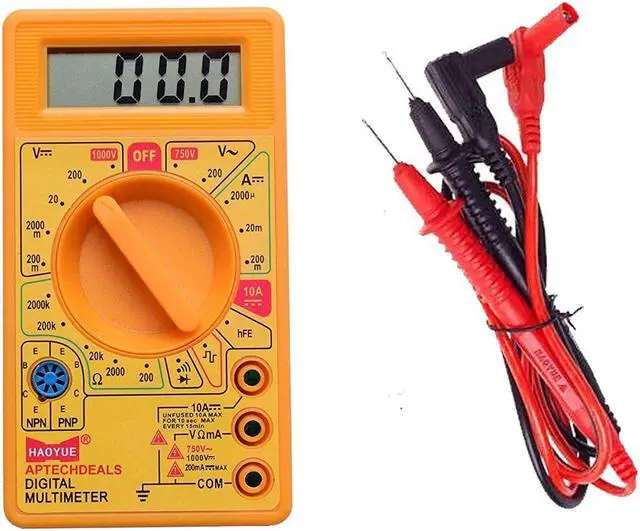

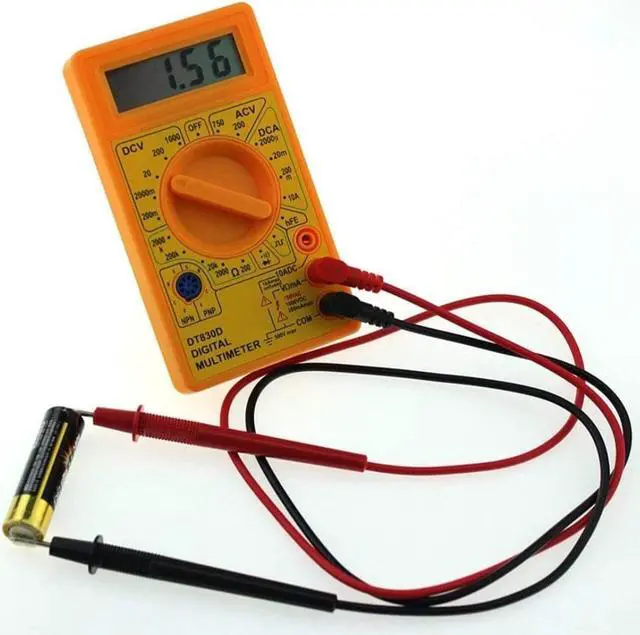

Digital Voltmeter Ammeter Ohmmeter Multimeter Volt AC DC Tester Meter

Description:

High Quality and Brand New

LCD Digital Multimeter Large Display(15mm) with Back ground Light

The meter is a handheld 3-1/2 digital mutimeter for measuring DC and AC Voltage, DC Current, Resistance, Diode, Transistor test

Portable and compact design, easy to operate and the readings indicated directly on the screen

Diode assembly test / Transistor P-N junction test / Transistor HFE test

Overload Protection: F 200 mA / 250 V fuse. 10 A range not fused

With battery operated (Free)

Continuity test with buzzer sound in circuit

Low battery voltage indication

Max display: 1999, Auto polarity display. 3-1 / 2 digits large LCD display with max

It can be use to overhaul all kinds of circuit boards

Ideal teaching instrument for students, and ideal for use in fields, such as laboratory, workshop, and home application

Features:

DC Voltage: 2V / 20V / 200V / 600V

AC Voltage: 200V / 600V

DC Current: 20µA / 200µ A / 2mA / 20mA / 200mA / 10A

Resistance: 200Ω / 2KΩ / 20KΩ / 200KΩ / 2MΩ

Size: Approx. 138 mm × 69 mm × 31 mm

Weight: Approx. 160 g

Maximum voltage between terminals and Earth Ground: CAT II 600 V

Fuse Protection: F 200 mA / 250 V

Power: 9 V Battery NEDA 1640

LCD Display: 1999 Counts, updates 2 to 3 per second

Measuring method: Dual-slope integration ADC

Over-range Indication: "1" on the display

Polarity Indication: Negative symbol

Operating Environment: 0 °C to 40 °C

Storage Temperature: -10 °C to 50 °C

Package included:

1 x Digital Multimeter

1 x Set of test leads (black+red)

1 x Battery

1 x Manual
