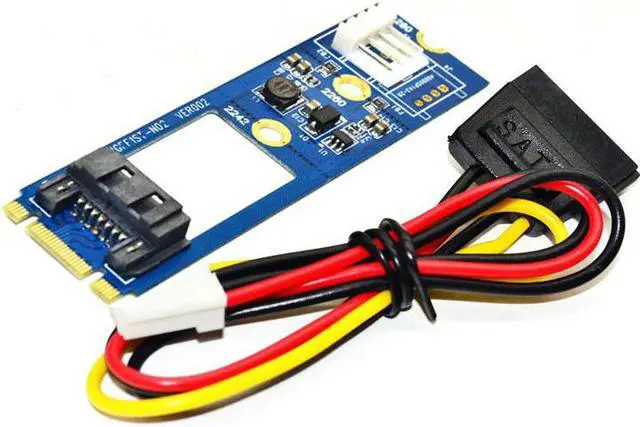

NGFF to 7 Pin SATA III 3 7Pin SSD Adapter Converter Board Card NGFF1ST-N02 for 2242 2260 2280 SSD

Product description:

Extend the NGFF slot on the motherboard to the SATA 7PIN connector. The adapter board only connects signals from the KEY B-M connector to the SATA 7PIN connector. Therefore, the adapter card does not need to be driven. If you do not recognize the interface, please check whether the SATA signal KEY-B, the card is basically not a failure, please know. This card supports 2242 2260 2280 size motherboard, the default is 2280 If you want to use other sizes, just cut along the V-CUT line in the middle of the PCB, with power can be directly inserted SSD SATA hard drive.

Note:

Extend the KEY B-M slot on the motherboard to the SATA 7PIN connector. The adapter board only connects the signal from the carrier to the

SATA 7PIN connector. Therefore, the adapter does not need to be driven. If you do not recognize the hard disk, please check whether the SATA signal interface, the card is basically not a fault, please know. This adapter does not have a power supply. Power the HDD from the power SATA port of the host. Size for manual measurement, there may be a 0 to 2 cm error, belongs to the normal phenom.

And due to the difference between different monitors, the picture may not reflect the actual color of the item. Thank you!

Specification:

Connects NGFF () Key B&M motherboard to SATA III device

Compliant with PCI Express specification 1.0.

Compliant with SATA 3.0 specification.

Supports data transfer up to 6.0Gb/s.

Supports socket 2 (B Key)

4 screw holes 2230/2242/2260/2280 available.

Easy installation & no driver required.

Supports any OS, like Windows, WinCE & Linux etc.
