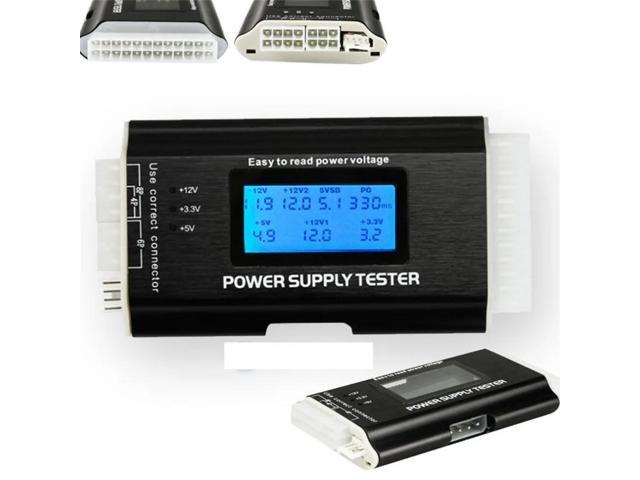

PC Power Supply Tester Checker 20/24 pin SATA HDD ATX BTX Meter LCD Hot Sale Drop Shipping

20/24 pin ATX - connector Power Supply Tester for PC-power Supply/ATX /BTX /ITX Compliant

Features:

100% Brand New.

The power supply tester is a robust voltage, tester for PC-power supply, ATX . BTX and ITX compliant, power supplies can be tested.

LCD`s indicate the status of voltage .The PC / SPS is suitable for the ambitious hobby user , as well as for a quick functional check in specialized trade.

The methods of operation:

Plug power supply 24 PIN and P4 , P6 or P8 into the corresponding jack of the power test suite

Power on the supply of power, will hear \"DuDu\" ring , if no flicker then the power supply output voltage is normal.

If a certain voltage signal was not detected, or the detected voltage value over the normal, will issue a \"DuDu\" long buzzer ; if the corresponding voltage value or PG flicker too, then the power is failed.

Specification:

Weight: 139g

Size ( about ): 12 x 6.5 x 1.5 cm

Voltage source : 20/24 pin ( ATX - connector )

Voltage test : +12V , -12V , +5V , -5V , +3.3V , +5V Stand by (SB) 12V power Good ( PG )

Connectors : Floppy, HDD , CDROM , SATA , 4pin ( P4 ) , 8pin ( Dual-CPU ) , 6pin ( PCI-Express )

Packet content:

1 x Power supply tester
