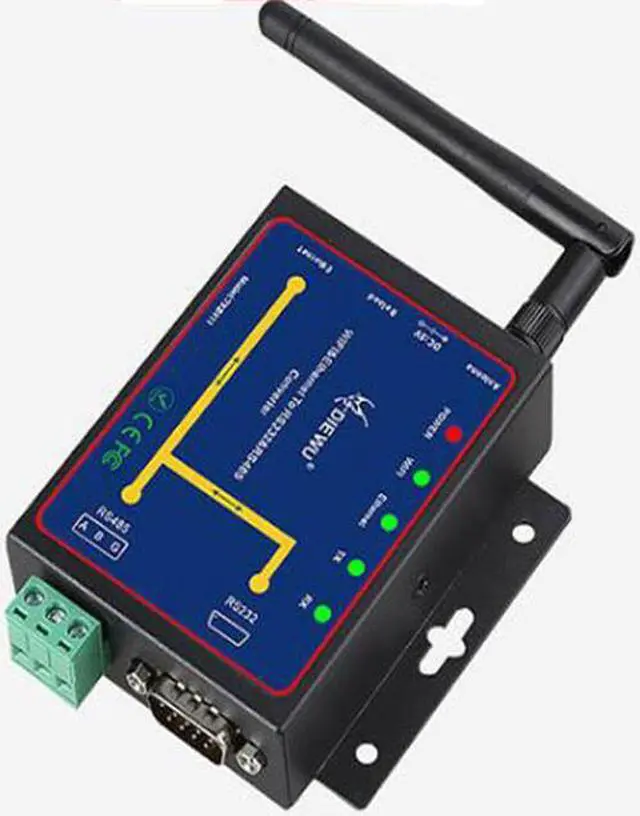

Wifi & Ethernet RJ45 To RS232 & RS485 WIFI Serial device Server converter Module support TCP server, TCP client, UPD,Virtual Serial port

Model number


TXB011

Chipset


MTK

UART port


1 *RS232, 1*RS485

UART working mode


TCP server, TCP client, UPD,Virtual Serial port

WIFI Standard


IEEE 802.11.b/g/n

LED Indicator


WIFI, Link/ACT,Power, TX/RX

Baud rate


RS232:300bps~230400bps

RS485: 300bps~115200bps

Dimension


78*72*23mm

Power Input


DC5V

Power Consumption


Max1.5W

Environment


Operating Temperature: -20 ?-70 ?

Relative Humidity: 10%-90%(non-condensing)

Storage Temperature: -40?-85?

Relative Humidity: 10%-90%(non-condensing)
Note
the main product (without affecting the normal use, the configuration has increased or decreased)
Compare the detail sizes with yours, please allow 1-3cm error, due to manual measurement.
Due to the different display and different light, the picture may not show the actual color of the item. Thanks for your understanding.
