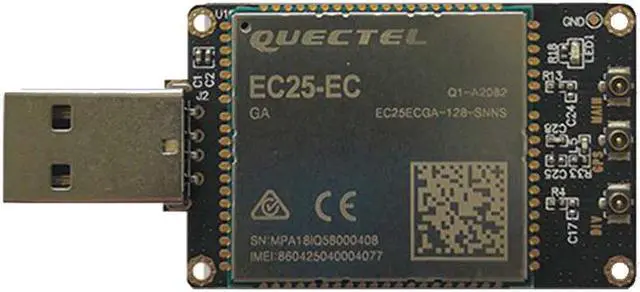

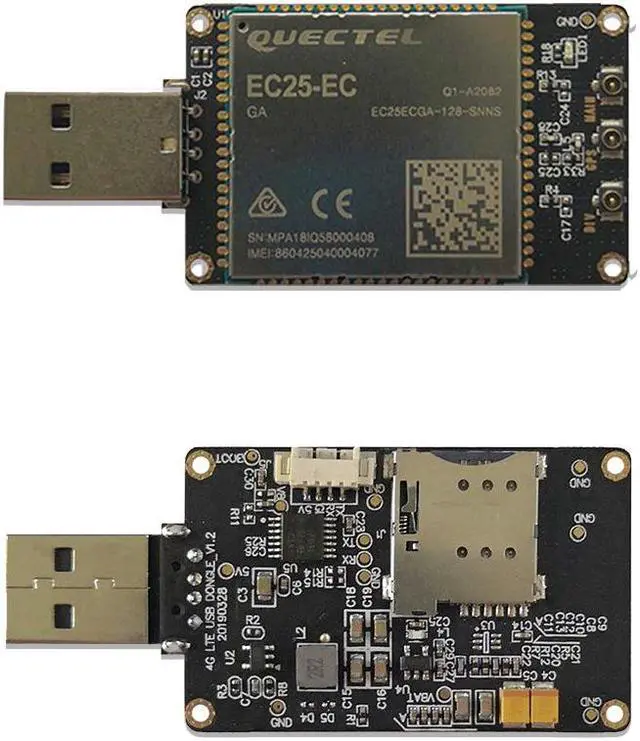

EXVIST 4G LTE USB Dongle W/EC25-EC LCC IoT/M2M-optimized LTE Cat 4 Module W/SIM Card Slot Industrial Grade
- Advantages - Equipped with Quectel EC25-EC IoT/M2M-optimized LTE Cat 4 module, which enables it be able to delivers maximum data rates up to 150Mbps downlink and 50Mbps uplink.
- Application - Widely used for quick network connection which enables you to let your devices like Windows, Linux, Android connect to 4G network directly after installing related driver and insert your local SIM card.
- Reliability - Adopts industrial electric circuit design, DC-DC power chip to make sure the module can always be working fine and never offline even under severe environment.
- Drivers - Very important to install the corresponding driver before connecting to the Internet. If failed, it won't be able to receive the 4G signal and get it working.
- Interfaces - 1x Micro SIM card slot (corner facing outside when plugging in the SIM card), 1x TTL(3.3V for RX, TX), 1x 4G main antenna(IPEX), 1x 4G aux antenna(IPEX), 1x GPS antenna(IPEX)
+
+
Overview
Specs
Reviews

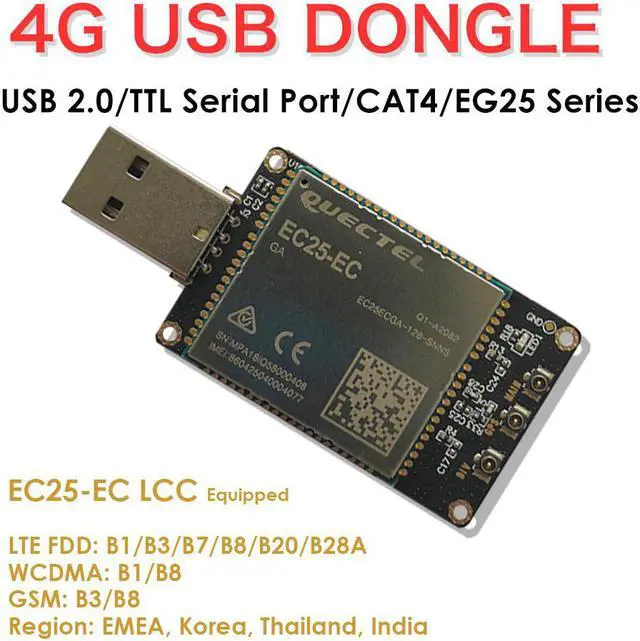

Specification of EC25-EC LCC
LTE FDD: B1/B3/B5/B7/B8/B20
WCDMA: B1/B8
GSM: B3/B8
Region: EMEA, Korea, Thailand, India
Features
This 4G LTE dongle is equipped with Quectel EC25-EC IoT/M2M-optimized LTE Cat 4 module, which enables it be able to delivers maximum data rates up to 150Mbps downlink and 50Mbps uplink. It also can be used for Windows, Linux, Android after installing the corresponding drivers.
This dongle adopts the industrial level electric circuit design and DC-DC power chip. The maximum current for this dongle is 3A, which can ensure it can working all fine even under severe environment.

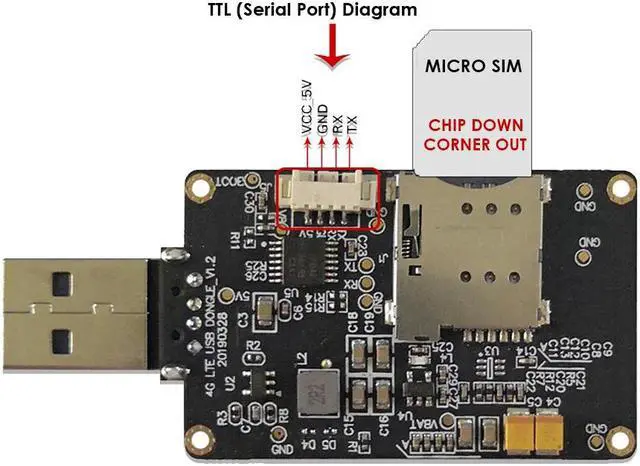

It has Micro SIM card slot(Corner facing outside when plugging in the SIM card). TTL(3.3V for RX, TX)

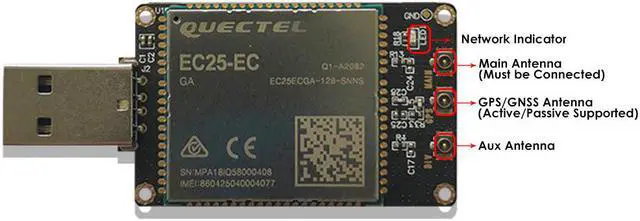

4G Main Antenna(FPC Antenna x1 Attached), Aux Antenna, GPS/GNSS Antenna(Active/Passive Antenna Supported). LED Indicator depends on 4G Module(Power On-Slowly Flash, Search Signal-Quickly Flash, 4G Connected-Quickly & Stable Flash).
Parameters
Dimension: 49.9mm(L)x30mm(W).
For bands available for this dongle, please refer to the specification of EC25-EC.
LED indicator will be always on when it it working.
It's necessary to install corresponding drivers.
Package Contents
1x 4G USB Dongle W/LTE Cat 4 Module EC25-EC Only
1x FPC Antenna Attached
