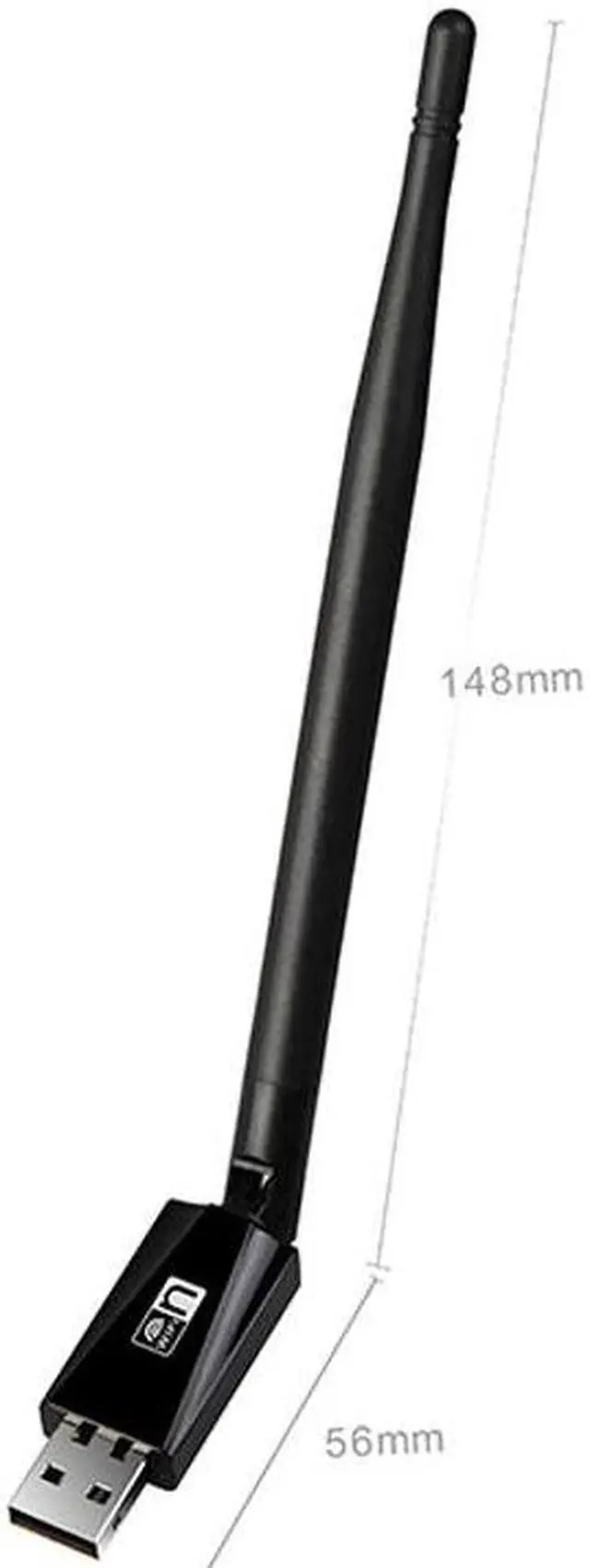

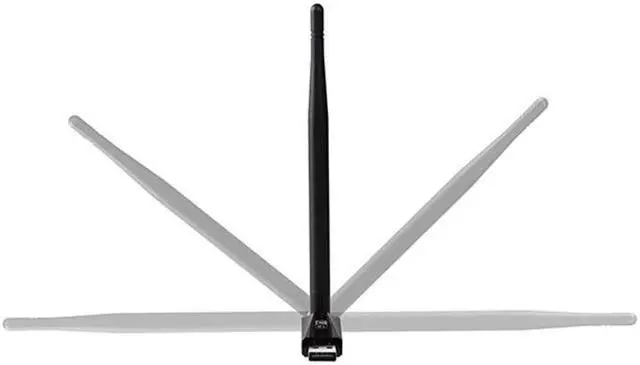

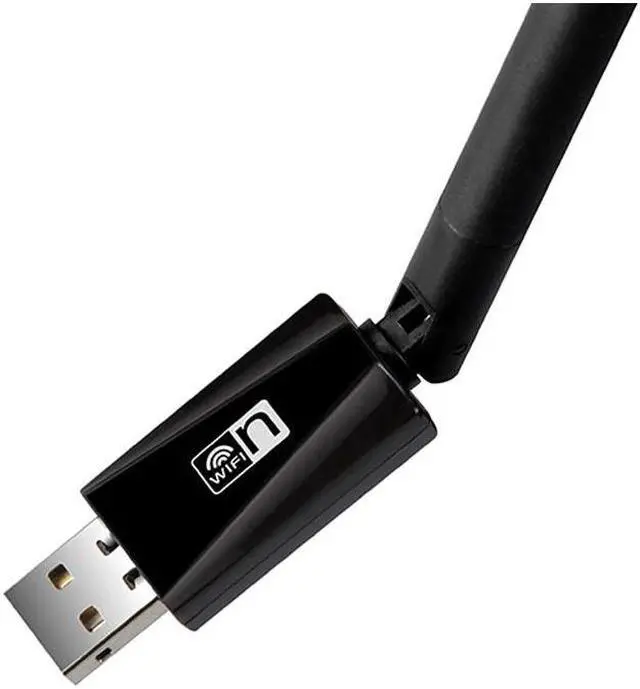

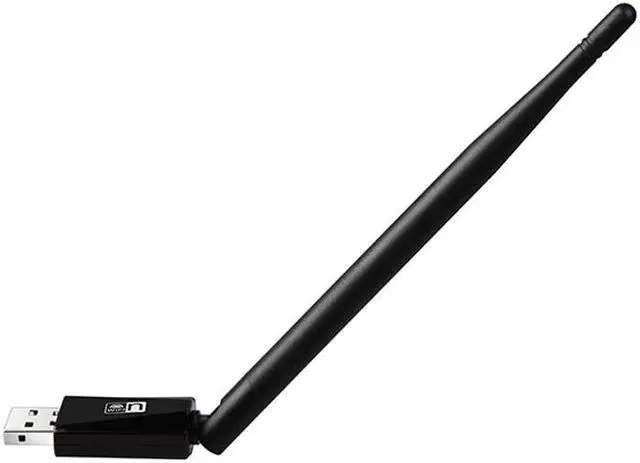

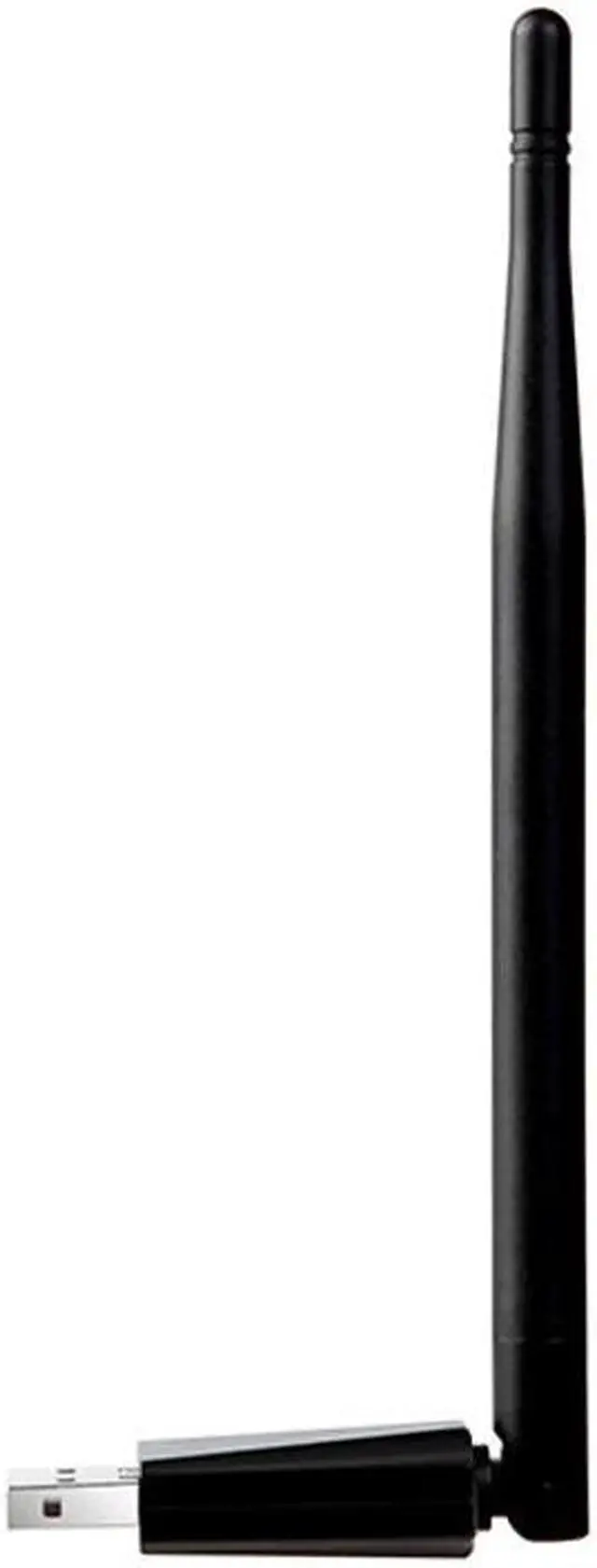

802.11n 5dBi WIFI Antenna USB Wireless Network LAN Card MT7601 chipset 150Mbps Wireless Wifi Hotspot Adapter Dongle

802.11n 5dBi WIFI Antenna USB Wireless Network LAN Card MT7601 chipset 150Mbps Wireless Wifi Hotspot Adapter Dongle

Feature1) 150Mbps transmission rate

2) 2.4G frequency band

3) USB2.0 interface

4) Built-in antenna, the signal is more stable

5) Plug and play

6) Compatible with popular market operating systems

7) Adaptation area: IPC / set top box / NVR / DVB

The 150M Mini Wireless USB Adapter complies with IEEE 802.11n (Draft 2.0), IEEE 802.11g and IEEE 802.11b standards and has a wireless transmission rate of up to 150 Mbps. With MIMO technology, an external smart antenna provides better wireless transmission performance, stability and wireless coverage. At the same time, using technology, it can automatically avoid channel interference and take advantage of channel bundling. The product supports 64/128/152-bit WEP/advanced encryption and security mechanisms such as WPA/WPA2, WPA-PSK/WPA2-PSK and QSS (Fast Security Settings) for fast security settings, making it easy to set up wireless security. In addition, the product features priority services to ensure priority processing of bandwidth-sensitive data such as video and voice. The product is also compatible with IEEE 802.11g products and other IEEE 802.11n products.

Product parameters

interface

USB

Antenna

5dbi

Antenna mode

Centralized control (Infrastructure) and Peer-to-Peer (Ad-Hoc)

Transmission rate

150Mbps

Chipset

MT7601

Data modulation

BPSK,QPSK,CKK,OFDM(BPSK/QPSK/16-QAM/64-QAM)

Safety features

WPA/WPA2

Sensitivity

150M-68dbm@10%PER

54M-68dbm@10%PER

Transmission distance

100~300 meters

2.4Ghz
