$577.99
Ships from China.
Sold by Partaker Mini PC‘s Marketplace
Hot SellerShipped by Partaker Mini PC‘s Marketplace
Meet Your Seller

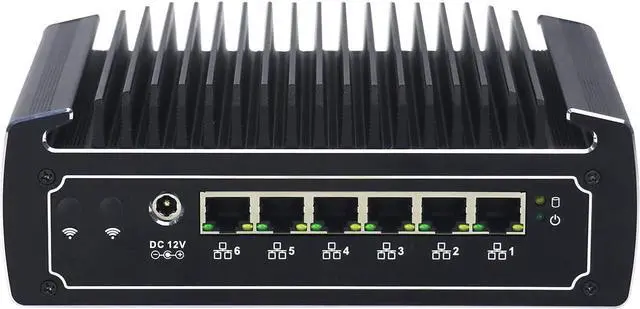

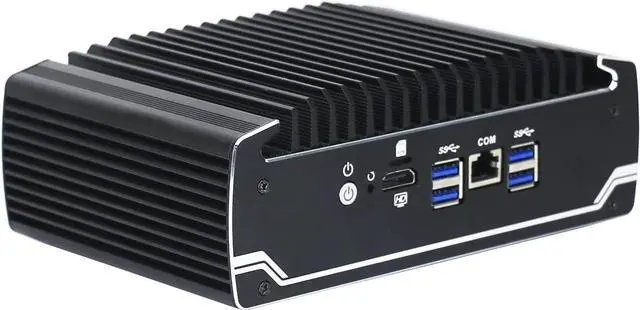

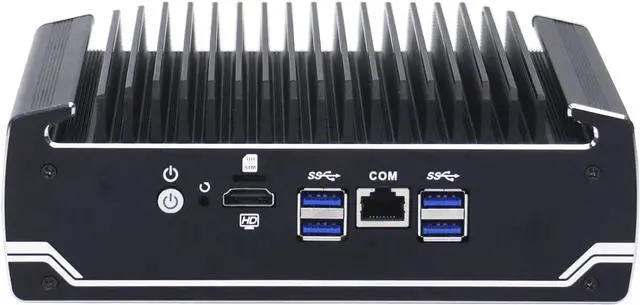

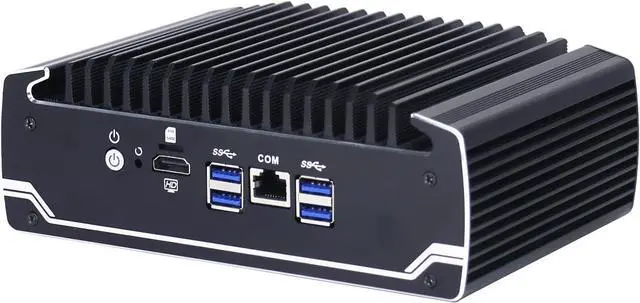

Partaker Micro Firewall Appliance, Mini PC, OPNsense, VPN, Router PC, 3865U 3867U, C1, AES-NI, SIM Slot, HDMI, COM, 6 x I210 LAN, 8G RAM, 128G SSD - OEM
- Dual-core 1.8GHz processor with 2MB cache | Two DDR4 slots supporting up to 32GB RAM
- Six gigabit Ethernet ports + console COM | Four USB 3.0 & HD video output
- Flexible storage: mSATA + 2.5" SATA bay | Expandable with Mini PCIe (WiFi/4G compatible)
- Compact aluminum chassis (186×126.5×66mm) | Wide-range 12V DC input with auto power-on
- Certified CE/FCC/ROHS | Ideal for firewall, routing and network security applications
+
+
Overview
Specs
Reviews
Model Number: Partaker C1
Chassis: Aluminum
CPU: Intel Celeron Processor 3865U / 3867U, ship one of them
AES-NI Supported: Yes
Memory: 2 x SODIMM DDR4-2133, max. 32GB
Storage: 1 x mSATA SSD, 1 x 2.5 Inch SATA SSD/HDD
Network Card: Intel I210-AT 10/100/1000M LAN
I/O Interface: Power ON/OFF, Reset, Nano SIM Slot, HDMI, 4 x USB 3.0, COM, DC_IN, 6 x LAN
Expansion: 1 x half height MINI PCIE slot for WiFi, 1 x full height MINI PCIE slot for mSATA/4G module, 2 choose 1
Power: DC100-240V AC/50-60hz, 12V5A
Work Temperature: 0°C ~ +50°C Commercial HDD, -20°C ~ +50°C Industrial SSD, surface air flow
Work Humidity: 0%~95% non-condensing
TDP: 15W
Cooling system: Fanless
Size: 186 x 126.5 x 66mm
Weight: 1.5 kgs
Packing List: Firewall appliance, power supply, power cord, warranty card
Function: Supports hardware auto power on enabled default, Timing boot, WOL, PXE boot, Watchdog 0~255 level
Installation: Supports Desktop, Din Rail, VESA wall-mounted and other fixing methods, default as desktop method
System Compatibility: Any freebsd based router systems, linux distros, or win. os supported.
Compatibility: firewalls for pfsense, untangle, opnsense, sophos xg and other popular open-source software solutions
4-12 LAN/WAN Ports, Different CPU, Nano Type, Mini Type, 1U/2U rackable, 9-15 inch rackable, all are available in our shop,
Bookmark Partaker store, for customization needs and other needs, we shall be glad to supply, contact us to get a timely reply.
Chassis: Aluminum
CPU: Intel Celeron Processor 3865U / 3867U, ship one of them
AES-NI Supported: Yes
Memory: 2 x SODIMM DDR4-2133, max. 32GB
Storage: 1 x mSATA SSD, 1 x 2.5 Inch SATA SSD/HDD
Network Card: Intel I210-AT 10/100/1000M LAN
I/O Interface: Power ON/OFF, Reset, Nano SIM Slot, HDMI, 4 x USB 3.0, COM, DC_IN, 6 x LAN
Expansion: 1 x half height MINI PCIE slot for WiFi, 1 x full height MINI PCIE slot for mSATA/4G module, 2 choose 1
Power: DC100-240V AC/50-60hz, 12V5A
Work Temperature: 0°C ~ +50°C Commercial HDD, -20°C ~ +50°C Industrial SSD, surface air flow
Work Humidity: 0%~95% non-condensing
TDP: 15W
Cooling system: Fanless
Size: 186 x 126.5 x 66mm
Weight: 1.5 kgs
Packing List: Firewall appliance, power supply, power cord, warranty card
Function: Supports hardware auto power on enabled default, Timing boot, WOL, PXE boot, Watchdog 0~255 level
Installation: Supports Desktop, Din Rail, VESA wall-mounted and other fixing methods, default as desktop method
System Compatibility: Any freebsd based router systems, linux distros, or win. os supported.
Compatibility: firewalls for pfsense, untangle, opnsense, sophos xg and other popular open-source software solutions
4-12 LAN/WAN Ports, Different CPU, Nano Type, Mini Type, 1U/2U rackable, 9-15 inch rackable, all are available in our shop,
Bookmark Partaker store, for customization needs and other needs, we shall be glad to supply, contact us to get a timely reply.
