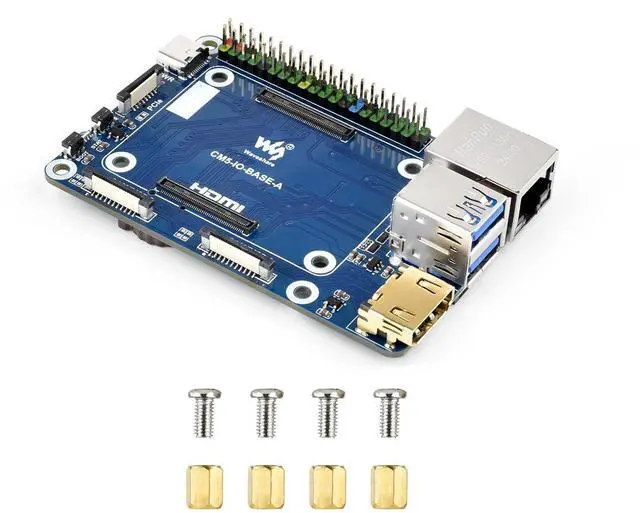

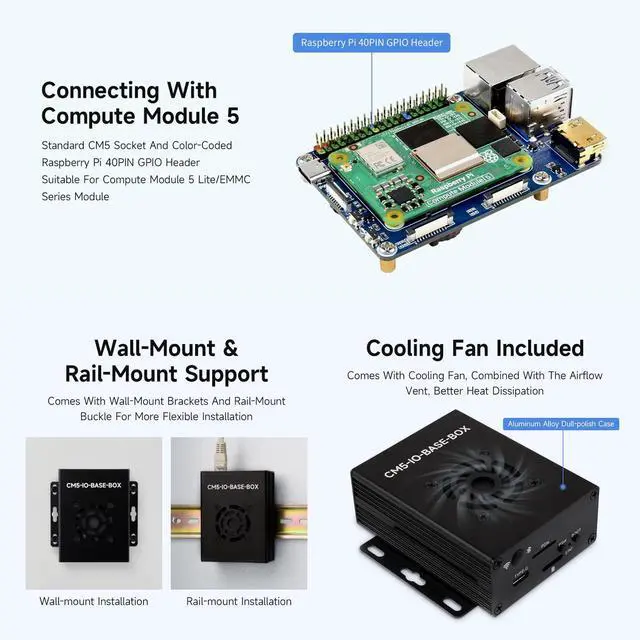

CM5 Mini Base Board (A) Designed, Compatible with Raspberry Pi Compute Module 5

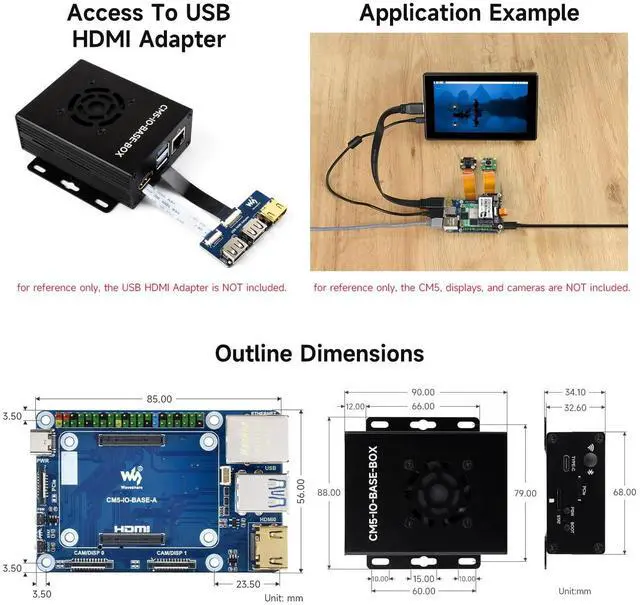

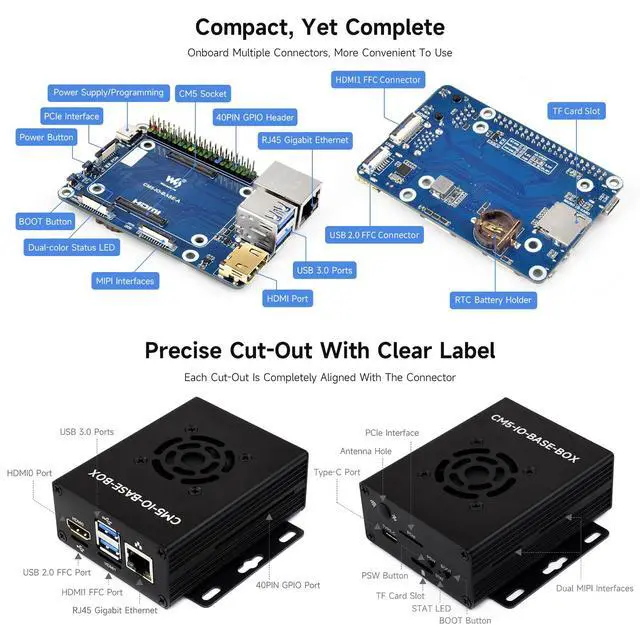

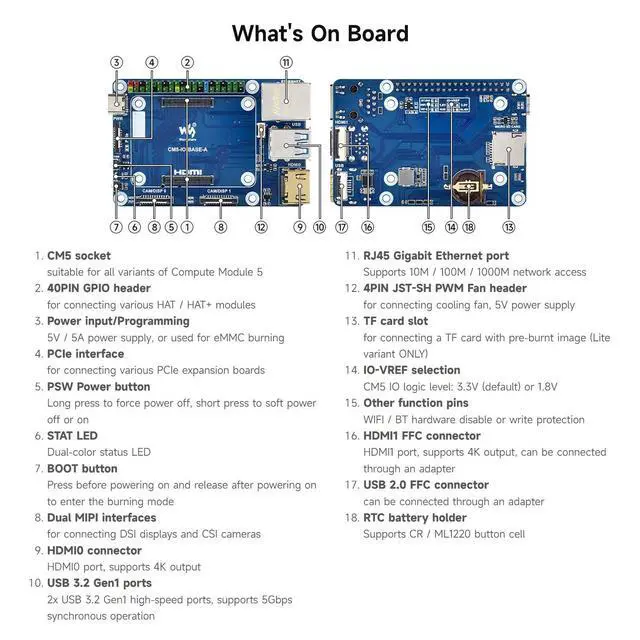

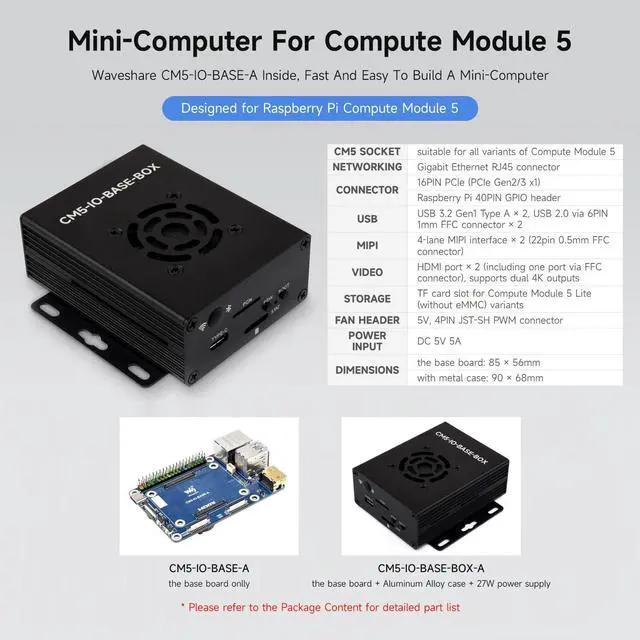

- Compatible with Compute Module 5: This board features a CM5 socket that supports all variants of the Raspberry Pi Compute Module 5.; Dual Networking and Connectivity Options: Includes a Gigabit Ethernet RJ45 connector, along with a 16-pin PCIe Gen2/3 x1 interface for added expansion.; USB and MIPI Interfaces: Offers two USB 3.2 Gen1 Type-A ports, two USB 2.0 ports via a 6-pin FFC connector, and dual 4-lane MIPI interfaces for camera or display connectivity.; Video Output and Dual 4K Support: Equipped with two HDMI ports, one of which connects via FFC, supporting dual 4K video output.; Power and Size: Requires a 5V DC power input at 5A, with dimensions of 85 × 56mm for compact design.; Rich WiKi Resources: We provide official Wiki resources, please visit our store and click the wiki page to get resources.
+
+
