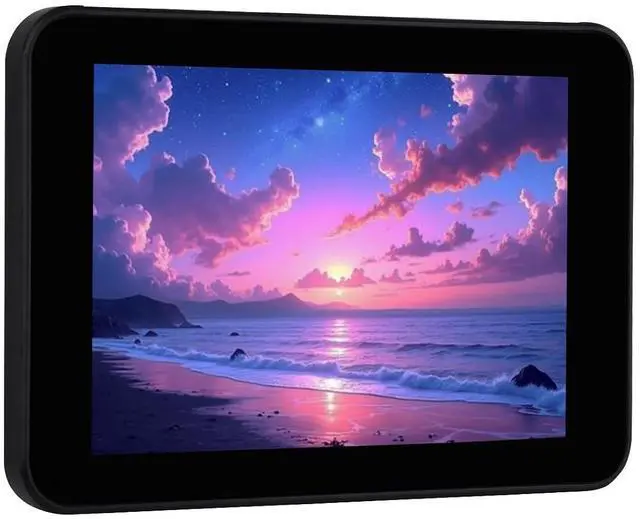

ESP32-S3 3.5inch Capacitive Touch Display Development Board Type B, 320×480, IPS, 262K Color, QSPI, Onboard Camera Interface, Wi-Fi and Bluetooth 5, ESP32 with Display, with Protective Case
- Equipped with ESP32-S3R8 Xtensa 32-bit LX7 dual-core processor, up to 240MHz main frequency Supports 2.4GHz Wi-Fi (802.11 b/g/n) and Bluetooth 5 (LE), with onboard antenna Built in 512KB of SRAM and 384KB ROM, with onboard 8MB PSRAM and an external 16MB Flash memory; Type-C connector, improving device compatibility, easier to use Onboard 3.5inch IPS capacitive touch display for clear color picture display, 320 × 480 resolution, 262K color Built-in AXS15231B LCD & touch controller, using QSPI and I2C communication respectively; Onboard QMI8658 6-axis IMU (3-axis accelerometer and 3-axis gyroscope) for detecting motion gestures Onboard PCF85063 RTC chip, powered by main Lithium battery through AXP2101 chip, with reserved RTC battery header for connecting a backup battery, ensuring RTC function during the replacement of the main battery; Onboard PWR and BOOT programmable buttons for easy custom function development Onboard 3.7V MX1.25 Lithium battery recharge/discharge header Adapting I2C, UART, USB, and multiple GPIO pins, for connecting peripherals and debugging; Onboard TF card slot for extended storage and fast data transfer, suitable for applications such as data recording and media playback, simplifying circuit design Onboard camera interface, compatible with mainstream cameras such as OV5640 Adopts AXP2101 IC for efficient power management, supports multiple voltage outputs, battery charging, battery management, and battery life optimization, etc.
+
+
