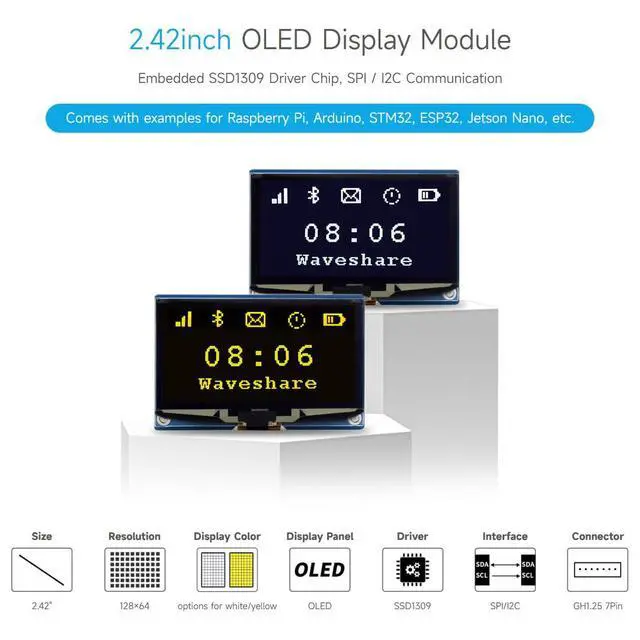

2.42inch OLED Display Module, 128×64 Resolution, SPI / I2C Communication, White Version
- White Version-Embedded SSD1309 Driver Chip, SPI / I2C Communication; Ultra-narrow bezel, conpact size, with onboard voltage translator; Adopts 4-wire SPI and I2C interfaces, better compatibility, fast data rate; Comes with online development resources; Compatible with Raspberry Pi, STM32, ESP32, Jetson Nano, etc.
+
+
Overview
Specs
Reviews
Product description 1.8 inch LCD Module Add to Cart 1.83 inch LCD Module Add to Cart 1.9 inch LCD Module Add to Cart 2inch LCD Module Add to Cart 2.4 inch LCD Module Add to Cart 2.42 inch OLED Module Add to Cart 2.42 inch OLED Module (C) Add to Cart Customer Reviews 4.8 out of 5 stars 7 5.0 out of 5 stars 4 4.3 out of 5 stars 16 4.0 out of 5 stars 122 4.6 out of 5 stars 60 3.8 out of 5 stars 31 4.7 out of 5 stars 4 Price $ 15.99 $15.
99 $ 15.99 $15. 99 $ 18.99 $18. 99 $ 17.99 $17. 99 $ 18.99 $18. 99 $ 19.99 $19. 99 $ 19.99 $19. 99 TYPE TFT IPS IPS IPS TFT OLED OLED COLOR 65K colorful 65K colorful 262K colorful 262K colorful 65K colorful White Yellow RESOLUTION 128×160 240×280 170×320 240×320 240×320 128×64 128×64 DISPLAY SIZE (MM×MM) 34.50 × 28.30 30.20 × 35.23 22.70 × 42.72 30.60 × 40.80 36.72 × 48.96 55.01 × 27.49 55.01 × 27.49 INTERFACES 4-wire SPI 4-wire SPI 4-wire SPI 4-wire SPI 4-wire SPI 4-wire SPI, I2C 4-wire SPI, I2C DRIVER ST7735S NV3030B ST7789V2 ST7789 ILI9341 SSD1309 SSD1309 DIMENSION (MM×MM) 56.5 × 34.0 33.0 × 40.0 51.2 × 27.3 58.0 × 35.0 70.5 × 43.3 61.50 × 39.50 61.50 × 39.50 PINHEADER PH 2.0 connector GH 1.25 connector GH 1.25 connector PH 2.0 connector PH 2.0 connector GH 1.25 connector GH 1.25 connector
99 $ 15.99 $15. 99 $ 18.99 $18. 99 $ 17.99 $17. 99 $ 18.99 $18. 99 $ 19.99 $19. 99 $ 19.99 $19. 99 TYPE TFT IPS IPS IPS TFT OLED OLED COLOR 65K colorful 65K colorful 262K colorful 262K colorful 65K colorful White Yellow RESOLUTION 128×160 240×280 170×320 240×320 240×320 128×64 128×64 DISPLAY SIZE (MM×MM) 34.50 × 28.30 30.20 × 35.23 22.70 × 42.72 30.60 × 40.80 36.72 × 48.96 55.01 × 27.49 55.01 × 27.49 INTERFACES 4-wire SPI 4-wire SPI 4-wire SPI 4-wire SPI 4-wire SPI 4-wire SPI, I2C 4-wire SPI, I2C DRIVER ST7735S NV3030B ST7789V2 ST7789 ILI9341 SSD1309 SSD1309 DIMENSION (MM×MM) 56.5 × 34.0 33.0 × 40.0 51.2 × 27.3 58.0 × 35.0 70.5 × 43.3 61.50 × 39.50 61.50 × 39.50 PINHEADER PH 2.0 connector GH 1.25 connector GH 1.25 connector PH 2.0 connector PH 2.0 connector GH 1.25 connector GH 1.25 connector
