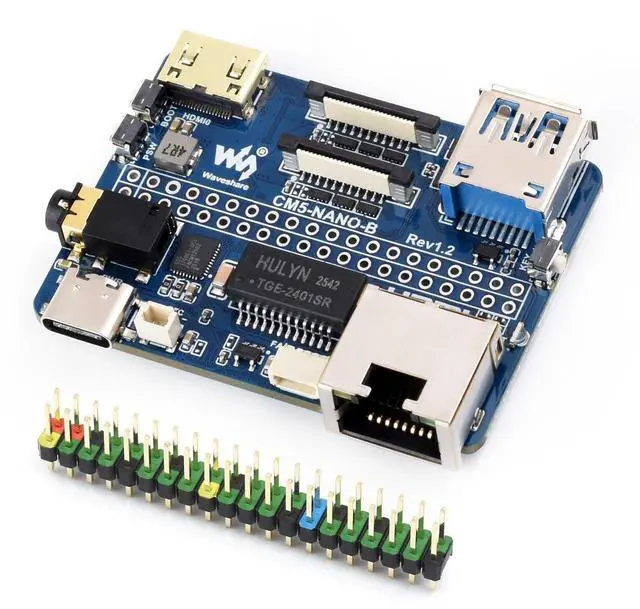

Nano Base Board (B), Compatible with Raspberry Pi Compute Module 5, Same Size As The CM5, Base Board for Compute Module 5 Lite/eMMC

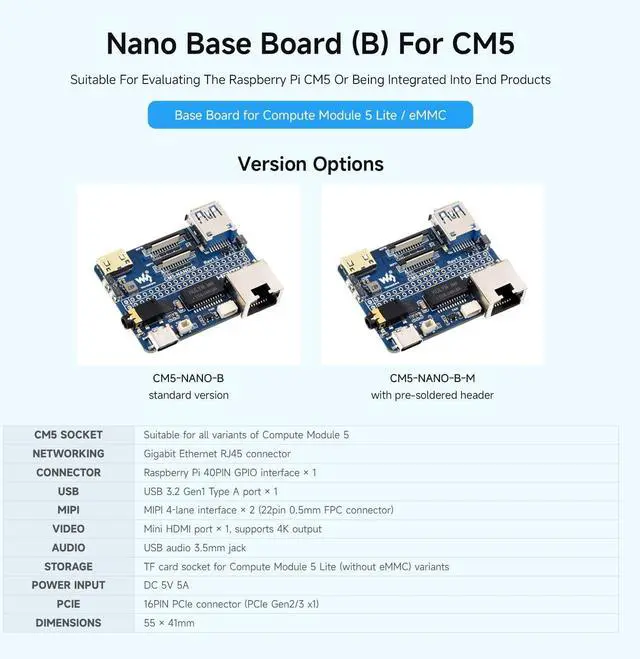

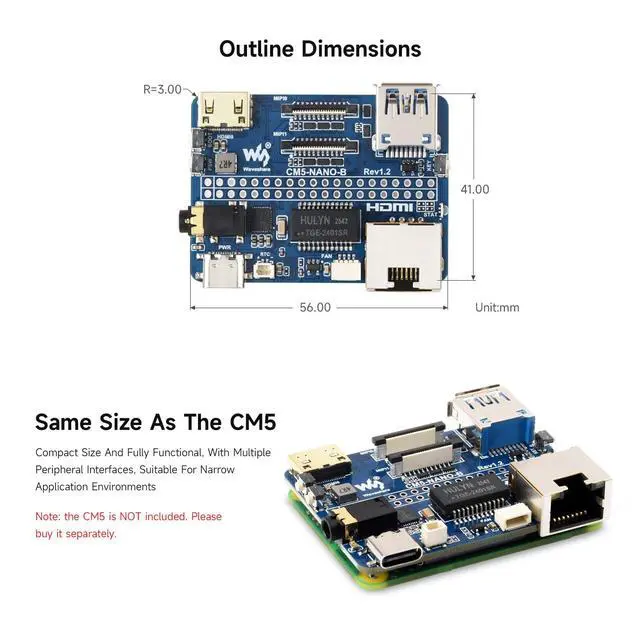

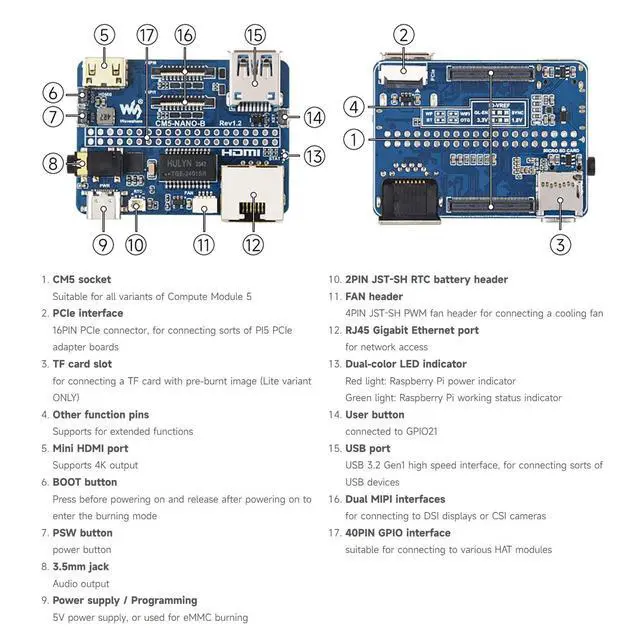

- Compatibility: Features a CM5 socket compatible with all variants of the Compute Module 5.; Networking and USB Ports: Includes a Gigabit Ethernet RJ45 connector and a USB 3.2 Gen1 Type A port × 1.; Display and Audio: Supports video output via a Mini HDMI port (4K output) and includes a USB audio 3.5mm jack for audio.; Storage and Expansion: Offers a TF card socket for Compute Module 5 Lite variants (without eMMC) and a 16-pin PCIe connector (PCIe Gen2/3 x1).; Power and Dimensions: Powered by a DC 5V 5A input, with compact dimensions of 55 × 41mm.; Rich WiKi Resources: We provide official Wiki resources, please visit our store and click the wiki page to get resources.
+
+
