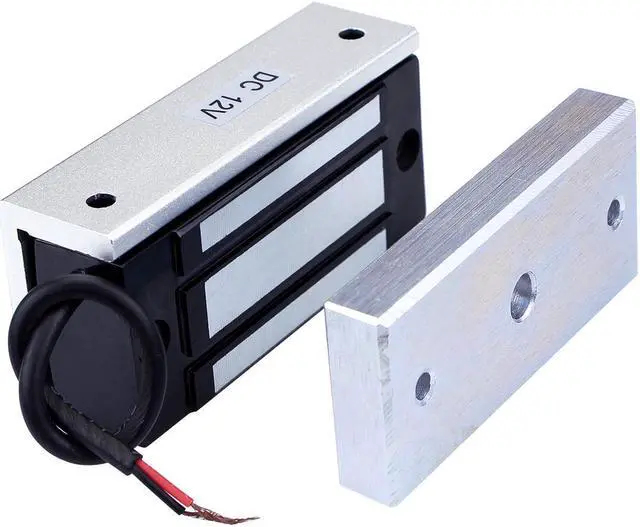

AUTENS Electric Magnetic Door Lock 12V 60kg Mini DC EM Locks Holding Force Electromagnetic for Door Entry Access Control

Description An electromagnetic lock, magnetic lock, is a locking device that consists of an electromagnet and an armature plate used for access control door locks. By attaching this to the door frame and the armature plate to the door, a current passing through the electromagnet attracts the armature plate, holding the access control door lock shut. Unlike an electric strike access control door lock a magnetic lock has no interconnecting parts. it is possible to bypass the lock by disrupting the power supply. According to the different doors, sometimes will need U brackets or L&Z brackets to support mounting.

Can work with networking access control system. The whole system includes electric lock, power supply, access controller, exit button, door bell or RFID cards.

Specification

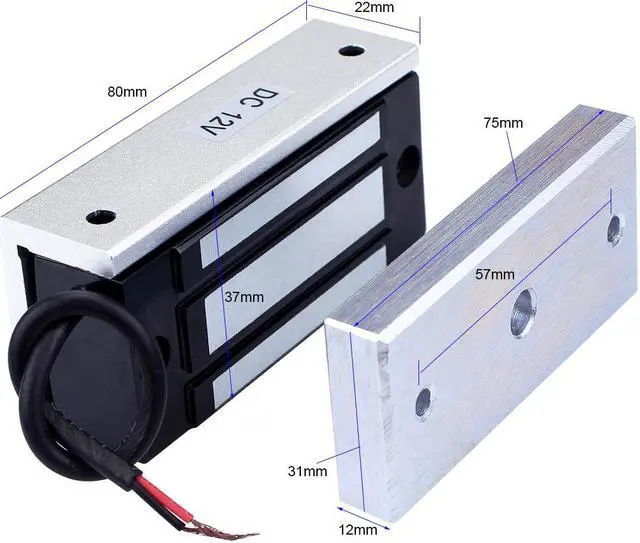

Lock Size: 80x 38x 24 mm (L x W x D)
Armature plate: 75x 31x 12 mm (L x W x D)
Maximum tension: 60kg (100Lbs) straight line Rally
Input voltage: DC12V +10%

Operating Current: 12V/300mA
Surface Temperature: Within +20 degree below ambient temperature
Suitable temperature: -10to +55 DEGREE(14-131F)
Suitable Humidity: 0 to 90% relative humidity
Shell: Anodized plating processing
The lock processing: environmentally friendly zinc plating processing
Suction plate processing: environmental protection zinc plating processing

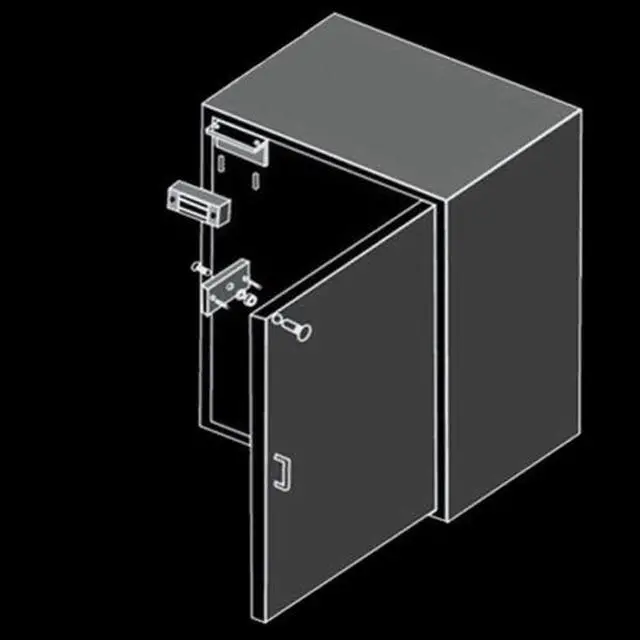

Applicable door type: file cabinet, shopping cabinet and other small doors

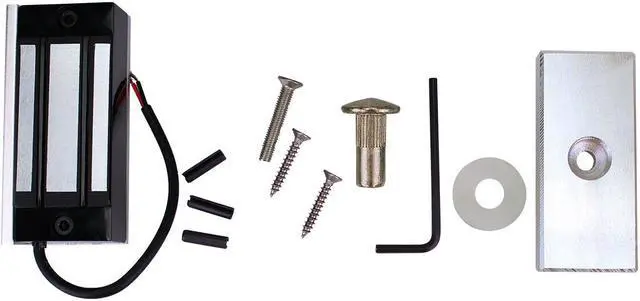

Packing List

1 * Electric Magnetic Lock
1 * Screws Kit
1 * User Manual
