H96 MAX X3 Android 9.0 TV Box Amlogic S905X3 4GB 32GB 2.4G 5G Wifi Bluetooth 1000M USB3.0 AV SPDIF Up to 8K Top Box

H96 Max X3-S905X3

System

CPU

Amlogic S905X3 64-bit quad core ARM® Cortex A55 CPU

GPU

G31 MP2 GPU processor

Memory

DDR3: 4GB

Flash

eMMC32GB

WiFi

IEEE 802.11 a/b/g/n ; 2.4G / 5G

Bluetooth

BT 4.0 (Support Voice Remote)

Moudle

Plastic : Black Color

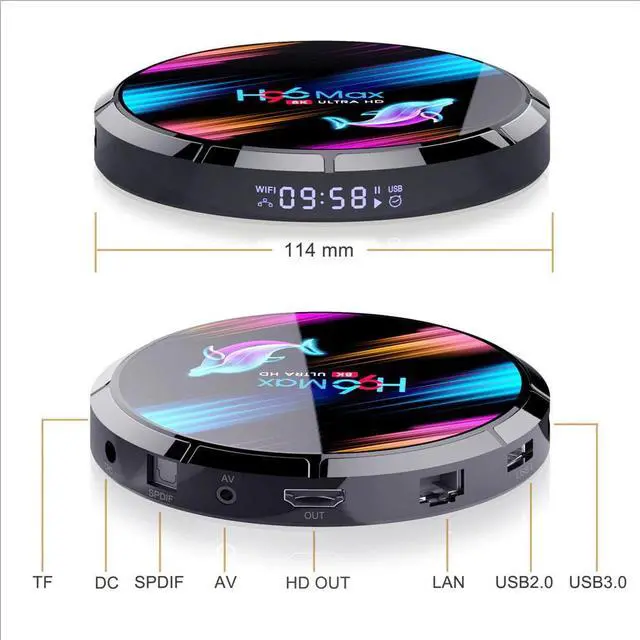

I/O

1*HDMI: HDMI 2.1 ,Support HDMI CEC, Dynamic HDR and and 8Kx4K@24 max resolution output

1*AV OUT: 480i/576i standard definition output

2*USB: 1 * USB 3.0 ; 1*USB 2.0

1*IR Reciver: Remote Reciver Connect

1*RJ45: Ethernet Interface;Support 100M/1000M

1*TF CARD: Support 4GB/8GB/16GB/32GB/64GB

SPDIF: Support

1*DC: 5V/2A

Power

DC 5V/2A; LED indicator, Working: Blue;

Software

OS

Android 9.0

Video

Amlogic Video Engine (AVE) with dedicated hardware decoders and encoders

Support multi-video decoder up to 4x1080P@60fps

Supports multiple secured video decoding sessions and simultaneous decoding and encoding

Video/Picture Decoding

VP9 Profile-2 up to 8Kx4K@24 fps

H.265 HEVC [email protected] up to 8Kx4K@24 fps

AVS2-P2 Profile up to 8Kx4K@24 fps

H.264 AVC @L5.1 up to 4Kx2K@30fps

MPEG-4 ASP@L5 up to 1080P@60fps (ISO-14496)

WMV/VC-1 SP/MP/AP up to 1080P@60fps

AVS-P16(AVS+) /AVS-P2 JiZhun Profile up to 1080P@60fps

MPEG-2 MP/HL up to 1080P@60fps (ISO-13818)

MPEG-1 MP/HL up to 1080P@60fps (ISO-11172)

RealVideo 8/9/10 up to 1080P@60fps

Multiple language and multiple format sub-title video support

Audio

Low-power VAD
