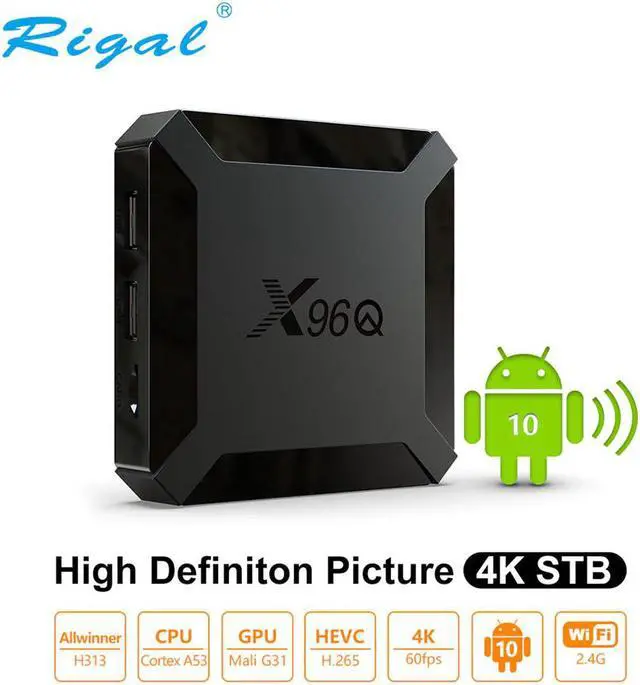

Set-Top Box X96Q Android 10.0 TV box HDMI 2.0 2GB/16GB Smart TV Box HD 2.4G WiFi Brasil Google Play Youtub Media Player

X96Q (H313)

CPU+GPU

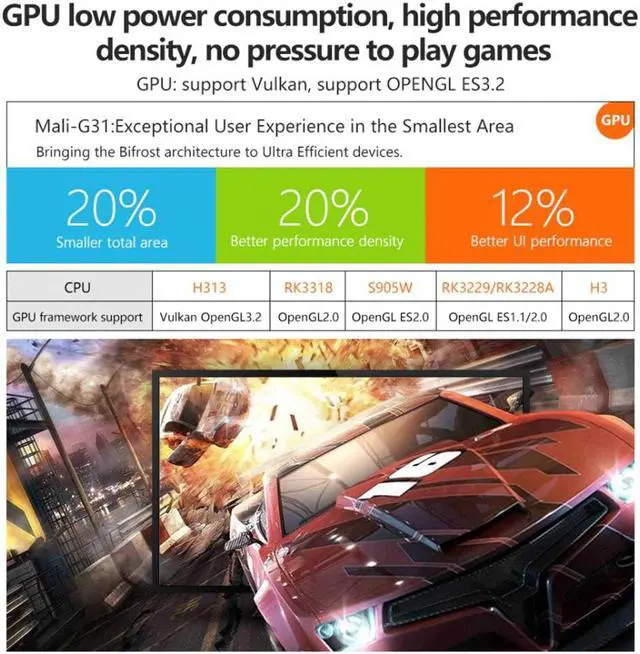

Allwinner H313 Quad Core ARM Cortex A53 ,G31 OPenGL  ES3.2

Memory + Flash

DDR3:2GB+ eMMC:16GB

WiFi

IEEE 802.11 b/g/n

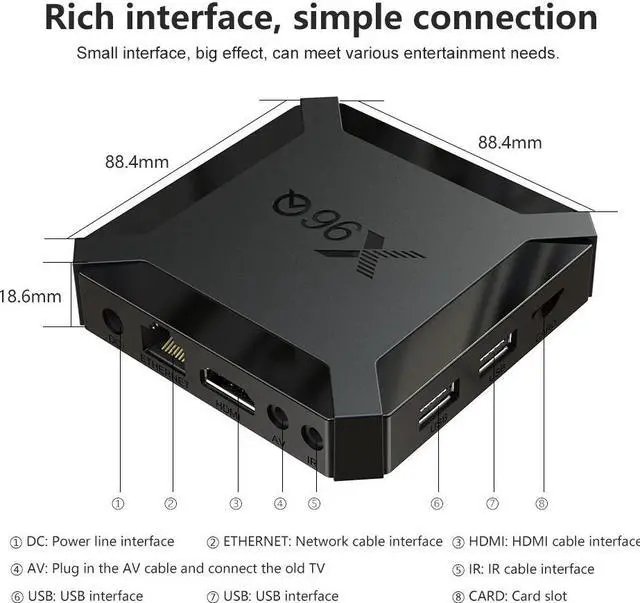

I/O

1*HDMI

4K*2K UHD Output, HDMI 2.0A

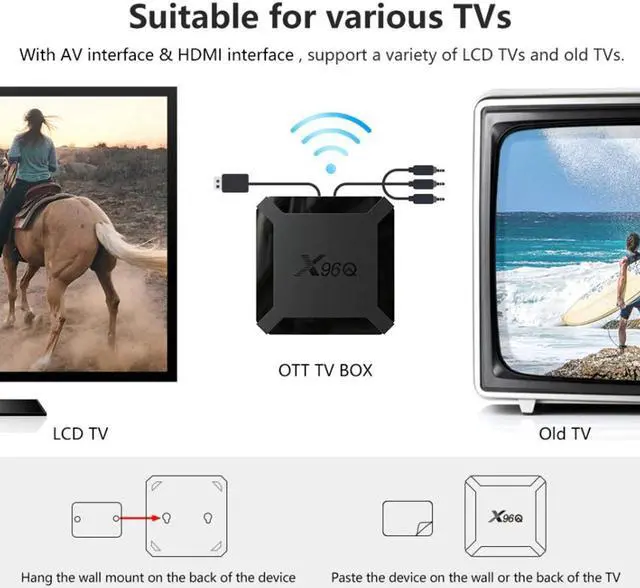

1*AV OUT

480i/576i standard definition output

2*USB

1* USB Host Port ,1*USB Device

1*IR Reciver

Remote Reciver Connect

1*RJ45

Ethernet Interface

1*TF CARD

Support 4GB/8GB/16GB/32GB/64GB

Power

DC 5V/2A;LED indicator,Working :Blue; Standby:Red

OS

Android 10.0

Video

Supports video decoding up to 4K@60fps

Supports multi-formats:

H.265 [email protected] up to 4K@60fps

VP9 Profile 2 up to 4K@30fps

AVS2 JiZhun 10bit Profile up to 4K@30fps

H.264 BP/MP/@L4.2 up to 4K@30fps

H.263 BP up to 1080p@60fps

MPEG-4 SP/ASP@L5 up to 1080p@60fps

MPEG-2 MP/HL up to 1080p@60fps

MPEG-1 MP/HL up to 1080p@60fps

Xvid up to 1080p@60fps

Sorenson Spark up to 1080p@60fps

VP8 up to 1080p@60fps

AVS/AVS+ JiZhun Profile up to 1080p@60fps

WMV9/VC1 SP/MP/AP up to 1080p@60fps

JPEG HFIF file format up to 45MPPS

H.264 BP/MP/

H.264 supports I/P frame, and only supports single reference frame

MJPEG/JPEG baseline

Maximum 16-megapixel(4096 x 4096) resolution for H.264 encoding

H.264 encoding capability: 1080p@60fps

JPEG snapshot performance of 1080p@60fps independently

Supports the constant bit rate(CBR)ariable bit rate(VBR) bit rate control mode, ranging from 256kbit/s to

100Mbit/s

Encoding of eight regions of interest(ROIs)

Audio

Supports MP3, AAC, WMA, RM, FLAC, Ogg
