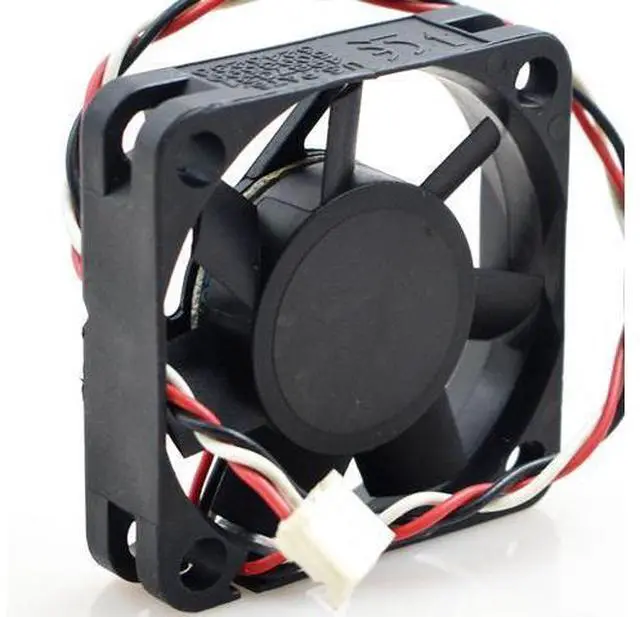

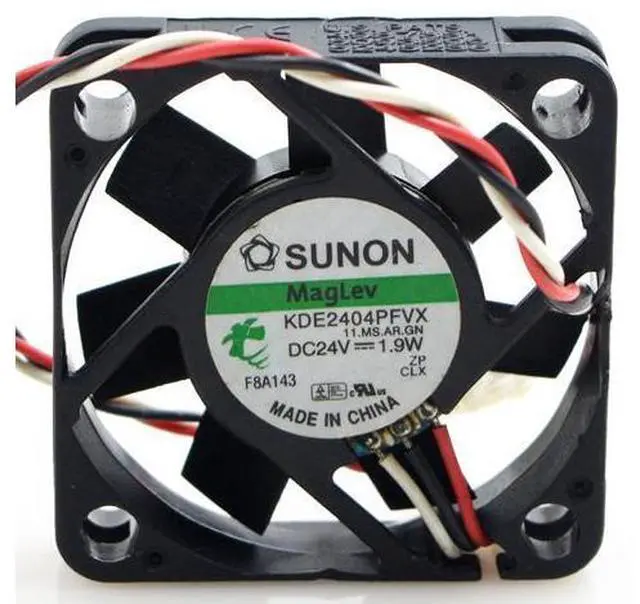

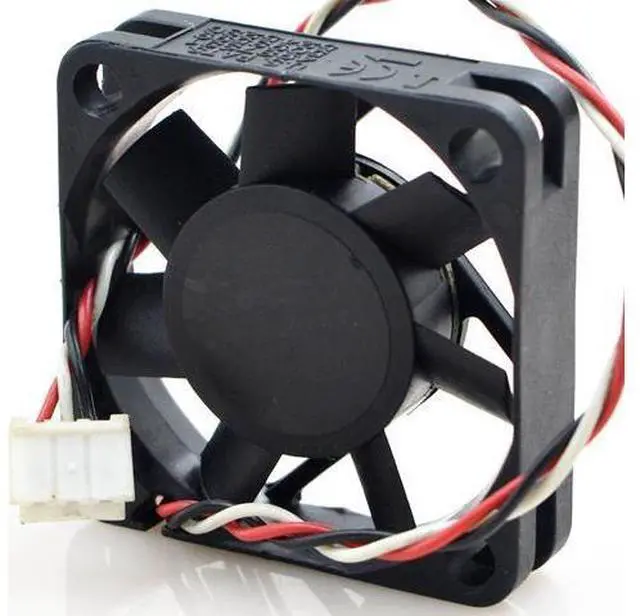

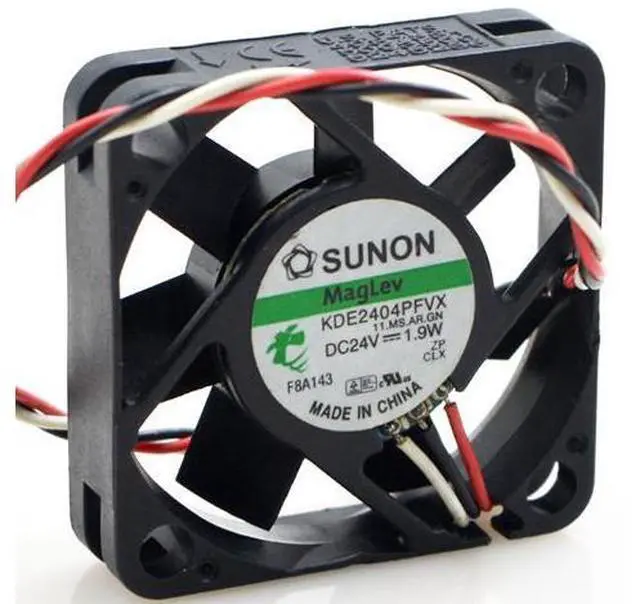

KDE2404PFVX Double Ball Bearing Cooling Axial Fan DC 24V 1.9W 4010 40*40*10mm
- Hydro Bearing
+
+
Overview
Specs
Reviews
Model: KDE2404PFVX
Rated voltage: DC24VInput
power: 1.9WF
an size: 40 X 40
X 10mmBearing type: magnetic
suspensionWiring method: red
black / whiteInterface: 2 lines / 3 lines can be taken under the noteLine length: 15CM
life: 10.0000 hours (25 °, 45 ~ 85% relative humidity environment)Fan frame: injection molding, PBT + 30% glass fiber + VO grade flame retardant;
Fan: injection molding, PBT + 30% glass fiber + VO grade flame retardant;
Fan rotation: counterclockwise from fan blade;
Operating temperature: -10 degrees Celsius to +70 degrees Celsius;
Storage temperature: -40 degrees Celsius to +70 degrees Celsius;
Power supply range: plus or minus 15% of rated power supply;
Insulation resistance: greater than 500 megohms;
Withstand voltage: drain current 0.5 mA 500V / 1 minute;
Working life: ambient temperature of 25 degrees when 80, 000 hours
Rated voltage: DC24VInput
power: 1.9WF
an size: 40 X 40
X 10mmBearing type: magnetic
suspensionWiring method: red
black / whiteInterface: 2 lines / 3 lines can be taken under the noteLine length: 15CM
life: 10.0000 hours (25 °, 45 ~ 85% relative humidity environment)Fan frame: injection molding, PBT + 30% glass fiber + VO grade flame retardant;
Fan: injection molding, PBT + 30% glass fiber + VO grade flame retardant;
Fan rotation: counterclockwise from fan blade;
Operating temperature: -10 degrees Celsius to +70 degrees Celsius;
Storage temperature: -40 degrees Celsius to +70 degrees Celsius;
Power supply range: plus or minus 15% of rated power supply;
Insulation resistance: greater than 500 megohms;
Withstand voltage: drain current 0.5 mA 500V / 1 minute;
Working life: ambient temperature of 25 degrees when 80, 000 hours
