Noctua NV-SPH1, Powered Fan Hub Set with NV-PS1 230/115V AC to 12V DC Power Supply and NV-FH2 8-Way Fan Splitter Board, Ideal for Powering 12V PC Fans Off The Mains (Black)

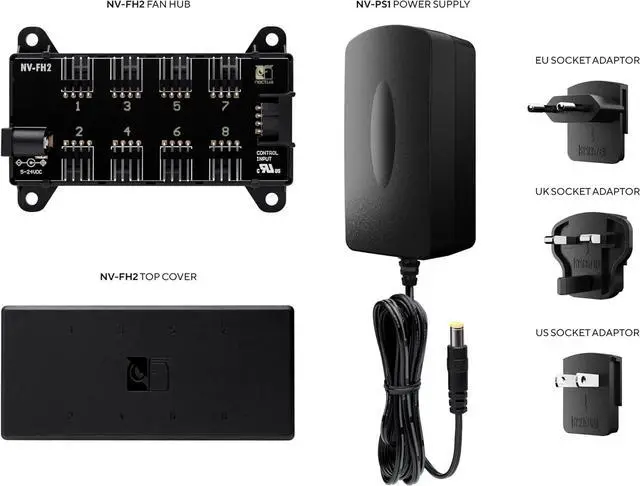

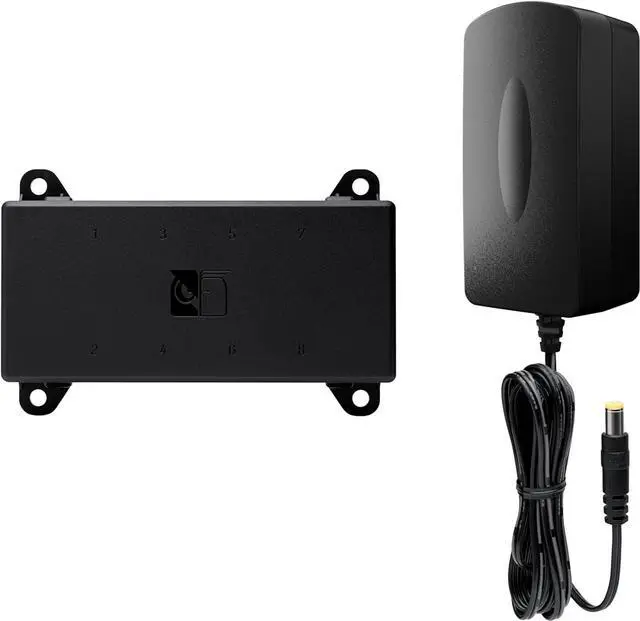

Combining the NV-FH2 8 channel PWM fan hub with the NV-PS1 230/115V 24W power supply, the NV-SPH1 powered hub set is the ideal solution for powering up to eight 12V fans off the mains for home, office or multi-purpose ventilation applications. For stepless speed control of PWM fans, the optional NA-FC1 controller can be connected to the 4-pin input of the NV-FH2, and if more than eight fans are required, additional NV-FH2 hubs can be daisy-chained. Both the NV-FH2 and the NV-PS1 carry CE, UKCA and UL certifications, are fully compliant with all applicable safety standards. In short, the NV-SPH1 is a complete premium set for powering multiple 12V fans from wall outlets and can be easily expanded with the optional NA-FC1 controller as well as additional NV-FH2 boards.

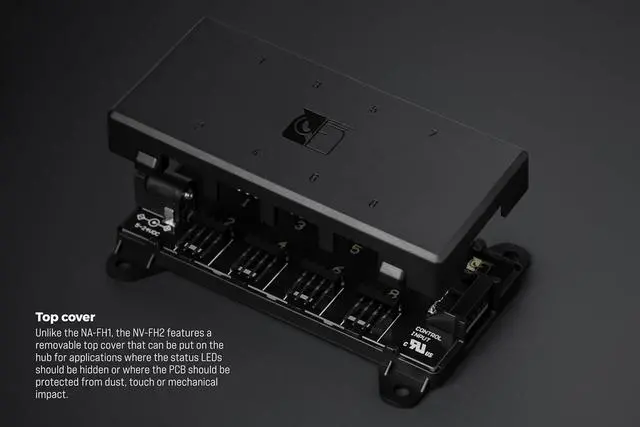

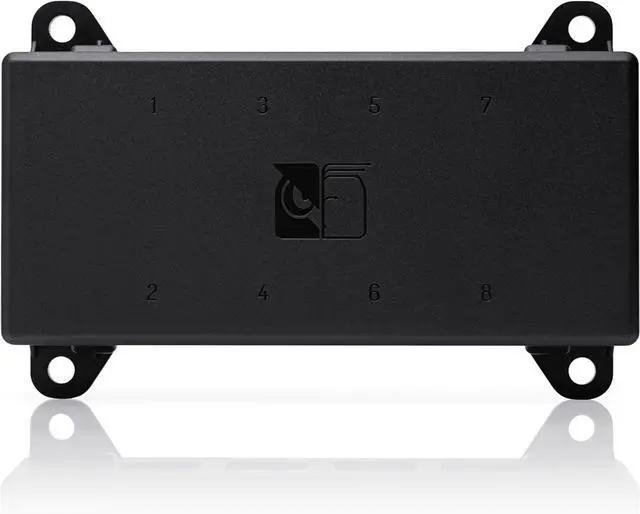

The NV-FH2 is a premium-grade 8 port fan splitter board that can take power via its 5.5mm barrel connector input and use its 4-pin PWM input for RPM monitoring and PWM control. With its removable clip-on cover, magnetic fixture and extra screw holes, its highly flexible and right at home in just about any application.

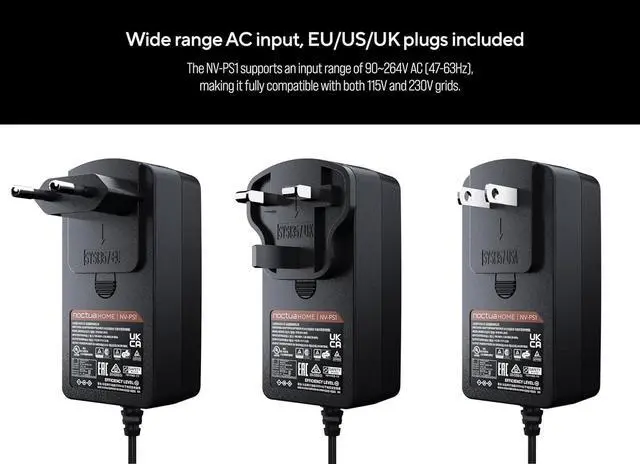

Output connectors8x 4-pin PWMInput connectors1x 5.5mm (outer diameter) / 2.1mm (inner diameter) barrel connector, 1x 4-pin PWMMax. power via barrel conector60 WMax. power via 4-pin PWM input22 WOperating voltage5-24 VOperating temperature-40°C to +60°CFlammability classUL-94 V-0Safety standardsEN 62368-1, EN 55035, EN 55032, UL-62368CertificationsCE, UKCA, ULSize93x62x12.5mm (without cover) / 93x62x19mm (with cover)Weight47 gFan compatibilityAll Noctua 24V, 12V, and 5V fans, many third party fansInput voltage90~264 V ACInput frequency47~63 HzStandby power consumption0.075 WProtectionOver voltage, over current, short-circuitsProtection classIIOperating temperature0~40 °COperating humidity8~90 %Safety standardsEN 60950-1:2006+A11+A1+A12+A2, EN 62368-1, IEC 62368-1:2014, UL 60950-1 (2nd Edtion), CAN/CSA C22.2 No. 60950-1-07 (2nd Edition)EMC standardsEN 55032 Class B, FCC Part 15 Subpart B Class BInput connectors (included)type C (CEE 7/16, for Europe, Russia, Brazil, South Africa, etc.), type A (NEMA 1-15, for USA, Canada, Mexico, Japan, etc.) and type G (BS 1363, for UK, Ireland, Singapore, etc.)Output connector5.5mm (outer diameter) / 2.1mm (inner diameter) barrel with NA-AC10 4-pin PWM adaptor cableCable length1.5 m

NV-FH2 fan hub

NV-FH2 Specifications

NV-PS1 Specifications
