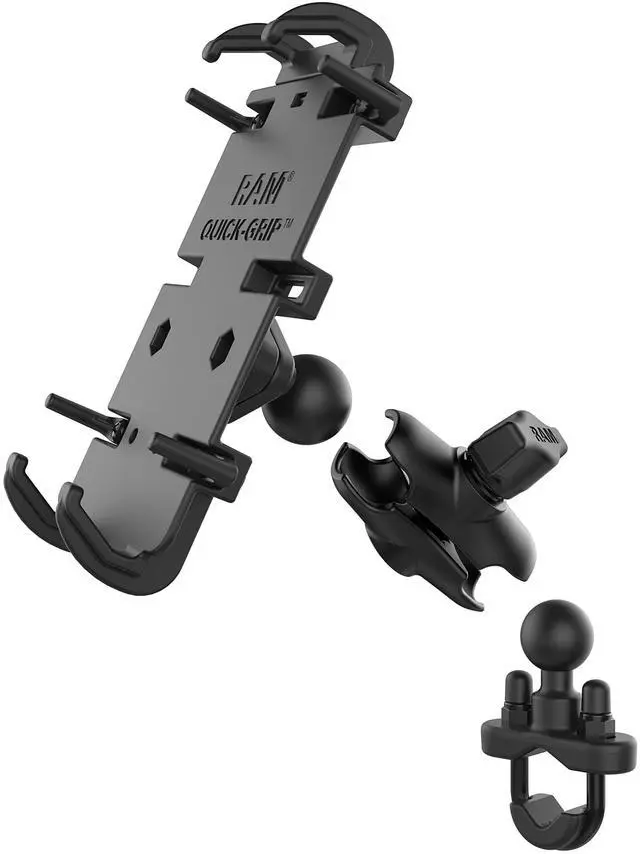

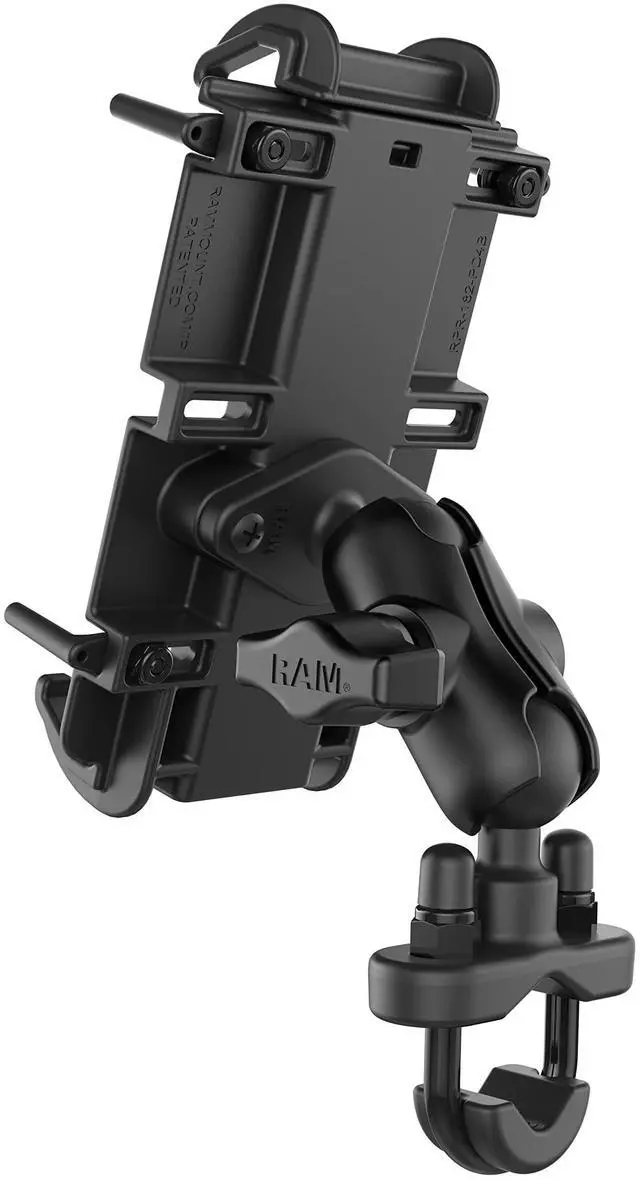

RAM Mounts Quick-Grip XL Phone Mount with Handlebar U-Bolt Base

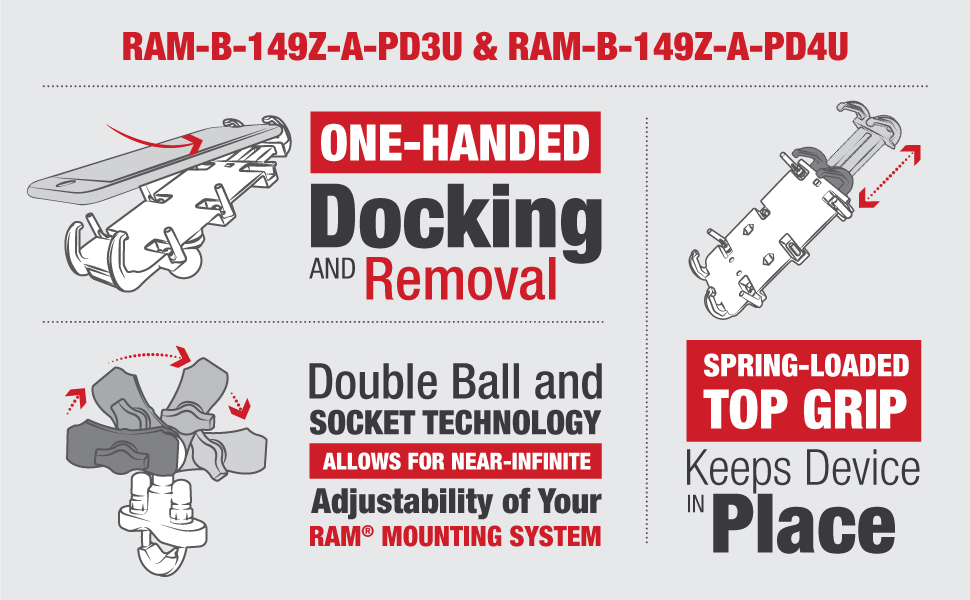

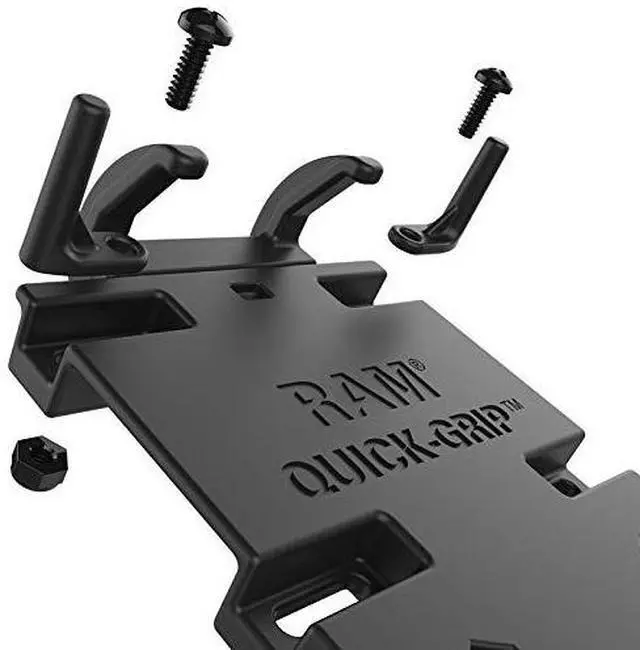

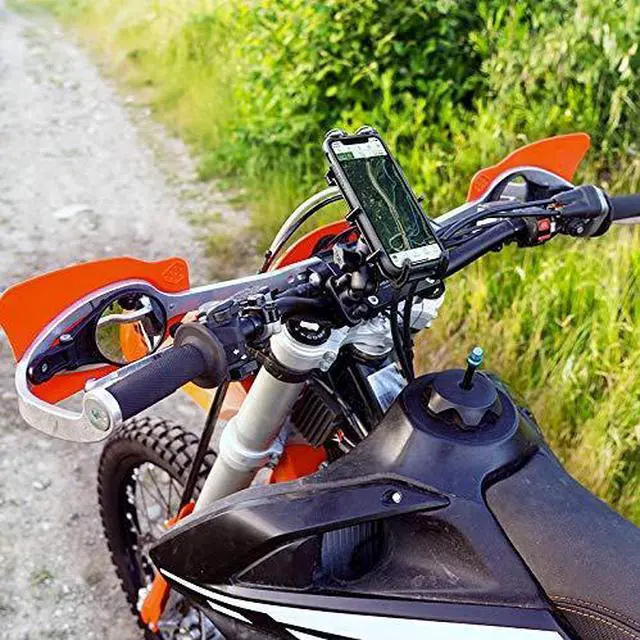

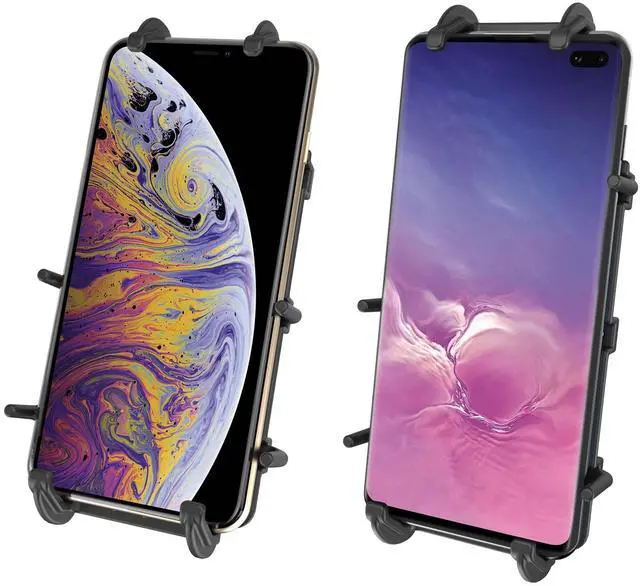

This version of the spring-loaded RAM Quick-Grip holder provides a secure fit for a variety of large phones and other devices. The adjustable side keepers ensure that devices like GPS units and Bluetooth speakers within the listed compatible dimensions will also fit in the holder. Included is a short RAM double socket arm and zinc-coated handlebar U-Bolt base that accommodates rails from .5” to 1.25” in diameter.
Technical Specifications

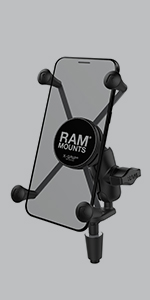

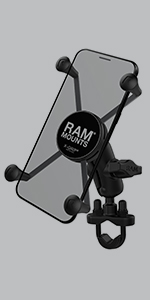

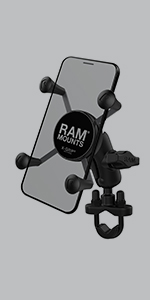

 RAM Mounts X-Grip Phone Mount with Handlebar U-Bolt Base RAM-B-149Z-A-UN7U |  RAM Mounts X-Grip Large Phone Mount w/ Handlebar U-Bolt Base RAM-B-149Z-A-UN10U |  RAM Mounts Quick-Grip XL Phone Mount w/ Handlebar U-Bolt Base RAM-B-149Z-A-PD4U |  RAM Mounts X-Grip Phone Mount w/ RAM Tough-Claw Small Clamp RAM-B-400-HOL-UN7BU |  RAM Mounts X-Grip Large Phone Mount w/ Motorcycle Fork Stem RAM-B-176-A-UN10U | |
|---|---|---|---|---|---|
| Customer Reviews | — | — | — | — | — |
| Price | — | — | — | — | — |
| Base | Handlebar U-Bolt Base | Handlebar U-Bolt Base | Handlebar U-Bolt Base | RAM Tough-Claw Small Clamp Base | Motorcycle Fork Stem |
| Holder | RAM X-Grip Small Phone Mount | RAM X-Grip Large Phone Mount | RAM Quick-Grip XL | RAM X-Grip Small Phone Mount | RAM X-Grip Large Phone Mount |
| Phone Width Range | 1.875" - 3.25" | 1.75" - 4.5" | 2.625" - 3.625" | 1.875" - 3.25" | 1.75" - 4.5" |
| Phone Depth Range | .875" max | .875" max | .72" max | .875" max | .875" max |
| Phone Height Range | no data | no data | 5.75" - 7.25" | no data | no data |
| Arm Size | Small | Small | Small | Medium | Small |
RAM Mounts Quick-Grip XL Phone Mount with Handlebar U-Bolt Base
This version of the spring-loaded RAM Quick-Grip holder provides a secure fit for a variety of large phones and other devices. The adjustable side keepers ensure that devices like GPS units and Bluetooth speakers within the listed compatible dimensions will also fit in the holder. Included is a short RAM double socket arm and zinc-coated handlebar U-Bolt base that accommodates rails from .5” to 1.25” in diameter.
Technical Specifications

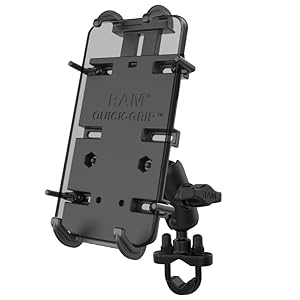

| Part Number | RAM-B-149Z-A-PD4U |
| Hardware Included | Assembly Hardware, (1) 1/4"-20 U-Bolt for .5" - 1" Rails, (1) 1/4"-20 U-Bolt for 1" - 1.25" Rails, (2) 1/4"-20 Nylock Nuts, (2) Rubber Caps, (1) U-Bolt Spacer |
| Holder Dimensions | Height Range: 5.75" - 7.25", Width Range: 2.625" - 3.625", Max Depth: .72" |
| Clamp Range | .5" - 1.25" diameter |
| Socket-to-Socket Length | 1.75" |

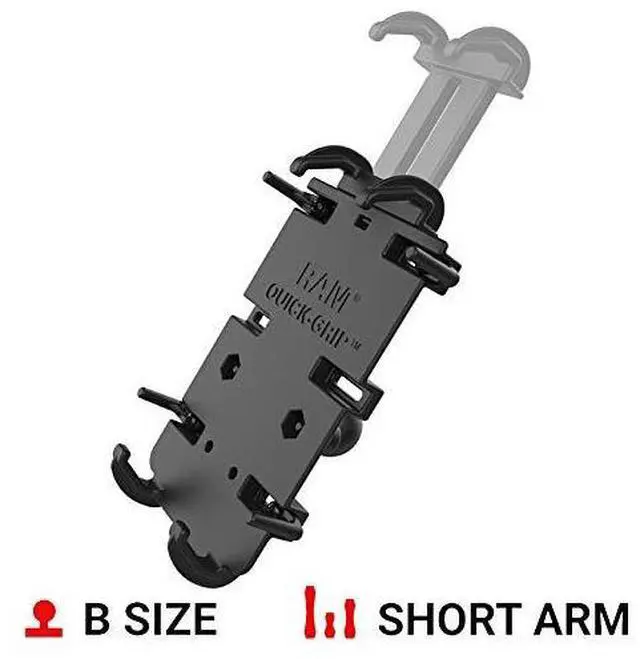

| Ball/Socket Size | B Size (1") |
| Weight Capacity | Standard Use: 2 lbs, Heavy-Duty Use: 1 lb |
| Materials | Marine-grade aluminum, High strength composite |
| Packaging Type | Poly Bag |
| Weight | 0.8 lbs. |
| Additional Information | Exposure to vibrations, like those generated by high-powered motorcycle engines, might impact iPhone cameras. |
