Prologue PLS80B In Ceiling Speaker 8" With Back Box 15 Watts 8 Ohms White

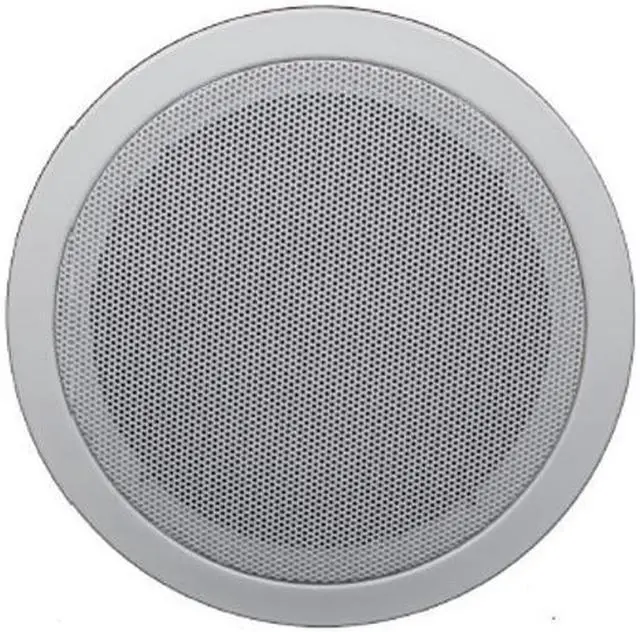

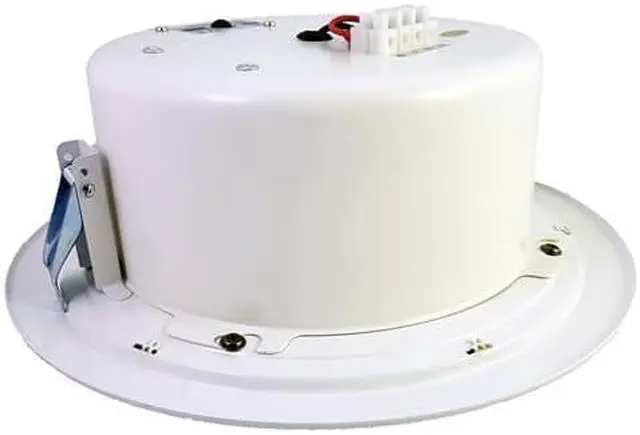

PROLOGUE In Ceiling Speaker 8" With Whizzer Cone 15Watts Commercial Type White Commercial ceiling speaker. 8'' woofer with whizzer cone. Comes complete with grille, back box, transformer and connecting block. Can be used with 70v network or 8 ohms applications. Four power settings for 70v. All metal construction with back can for fire rated installations. Strong screw type connecting block for maximum flexibility. Provisions for harness installation. Ideal for large commercial applications. Paint finish and color meets standard ceiling tiles. Easy to install. FEATURES. 8 inch speaker with wizard cone, 15w.

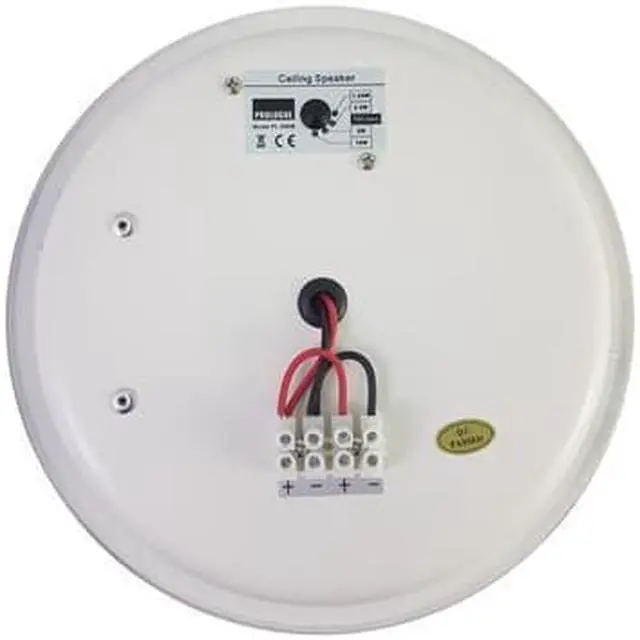

70volt transformer with different taps: 10, 5, 2.5, 1.25 watts. Can also be used as 8 ohms when connected directly at the speaker. Designed for ceiling mount with or without railing. Rails not included (AR-62). Easy to install.. White semi-gloss finish, can be painted to match any decor. Back can for fire rated installations SPECIFICATIONS. 8 inch speaker with whizzer cone,. 20 watts Peak Power, 10 watts RMS.
Frequency response: 87 Hz - 18 KHz.
Sensibility: 92 dB DIMENSIONS.
Diameter: 268mm ( 10.5 '').
Depth: 80mm ( 3.14 ''). Cutout for the ceiling 205mm (8'').
Weight: 1.2 kg
