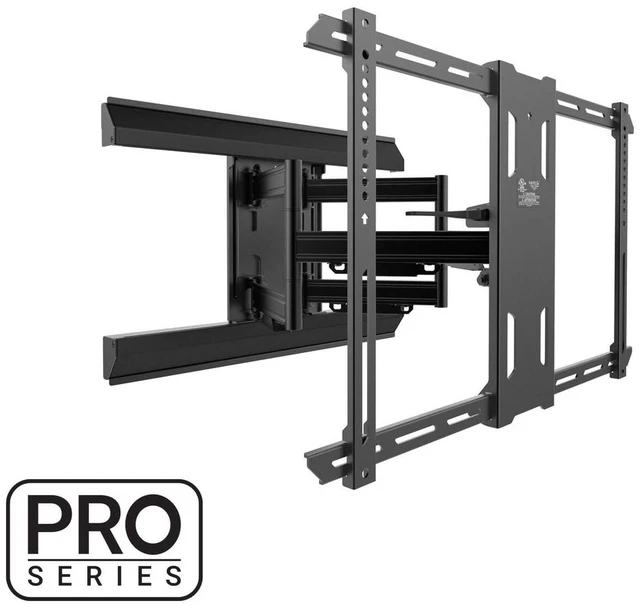

Kanto Pro Series PMX660 Full Motion TV Wall Mount with 22" Extension

The Kanto PMX660 gives you more freedom to position large TVs without letting wall studs decide exactly where the screen sits. Designed for TVs from 37 to 80 inches, this full motion mount supports up to 125 pounds and extends 22 inches from the wall. Its articulating arms, horizontal offset, wide swivel range, and toolless tilt make it easier to create a comfortable viewing position.

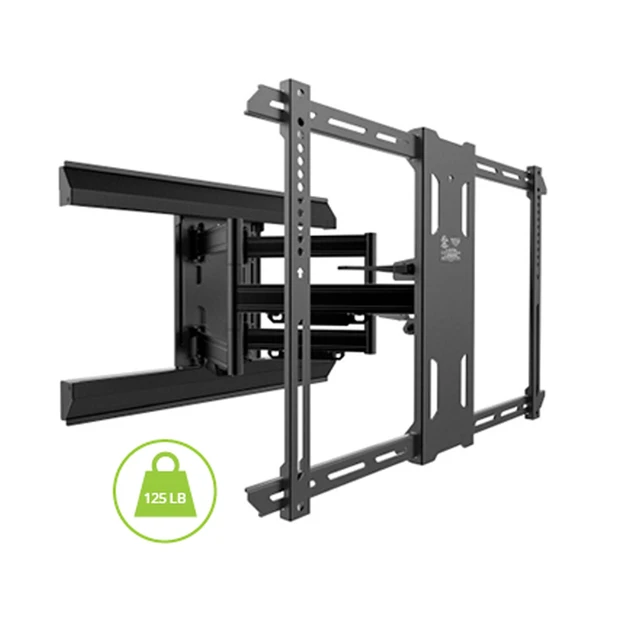

The Kanto PMX660 uses a solid steel frame to safely support TVs weighing up to 125 pounds, or 57 kilograms. It maintains that weight capacity even when you extend the mount fully from the wall.

Its adjustable brackets support VESA patterns ranging from 200x100 to 600x400. As a result, the mount works with a broad selection of compatible televisions between 37 and 80 inches.

Need to move your screen forward from a recessed area or position it beyond a fireplace? The Kanto PMX660 extends up to 22 inches, or 55.9 centimetres, from the wall.

Think of the articulating arms like a controlled extension system for your TV. You can pull the screen forward when needed, adjust its direction, and push it back when you want a cleaner profile.

The Kanto PMX660 provides up to 180 degrees of swivel, allowing the TV to turn as much as 90 degrees left or right depending on screen size. This range helps you direct the screen toward different seating areas instead of designing the entire room around one fixed viewing position.

Why settle for one viewing angle when your seating arrangement changes throughout the room? The tilt and swivel bracket gives you more control over exactly where the screen faces.

The Kanto PMX660 features a newly designed toolless tilt mechanism that lets you angle the television 12 degrees forward or 3 degrees backward. You can adjust the screen without reaching for additional tools whenever you want to refine your viewing angle.

The mount also includes adjustable horizontal leveling, giving you another way to fine-tune the TV's final position.

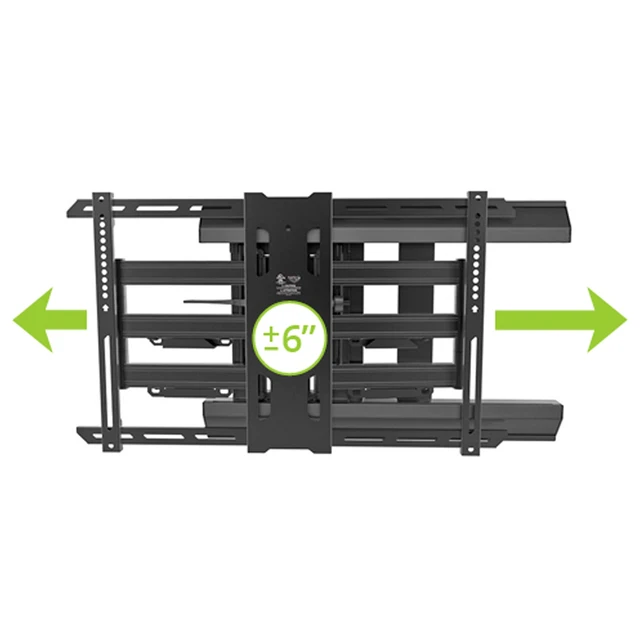

Wall studs do not always line up with the ideal centre point for your TV. The Kanto PMX660 addresses that problem by allowing its arm assembly to move 6 inches left or right, providing 12 inches of total horizontal offset.

This adjustment gives you more discretion over screen placement while still using compatible wall studs for support.

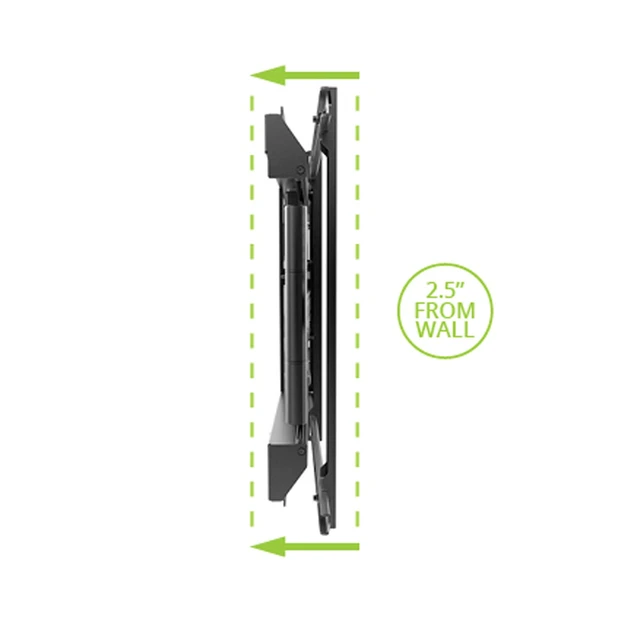

Despite its 22-inch extension, the Kanto PMX660 retracts to just 2.5 inches from the wall. This low-profile design keeps the television closer to the wall when you do not need the extra reach.

It is similar to folding an articulated arm back into a compact position: the movement remains available when you need it without adding unnecessary distance all the time.

The Kanto PMX660 includes four cable management raceways positioned along the bottom of its arms. These channels help guide cables and keep them from hanging loosely beneath the television.

Aluminum wall plate covers also conceal the lag bolts, helping the finished setup maintain a cleaner appearance.

The Kanto PMX660 includes hardware for both wood stud and concrete wall mounting. Its 23.2-inch wall plate accommodates dual studs with spacing up to 16 inches.

A paper wall template helps you mark pilot holes, while the included manual provides the mounting information needed for the setup.

TV mounting points can vary considerably between models, so the Kanto PMX660 comes with several bolt diameters, bolt lengths, and spacers. You can select the combination that best matches your compatible television.

The package also includes lag bolts and concrete anchors, reducing the need to source basic mounting hardware separately.

You can pair the Kanto PMX660 with a universal sound bar mount if you want your sound bar to move with the television. This setup can help keep the screen and audio positioned in the same direction as you adjust the TV.
