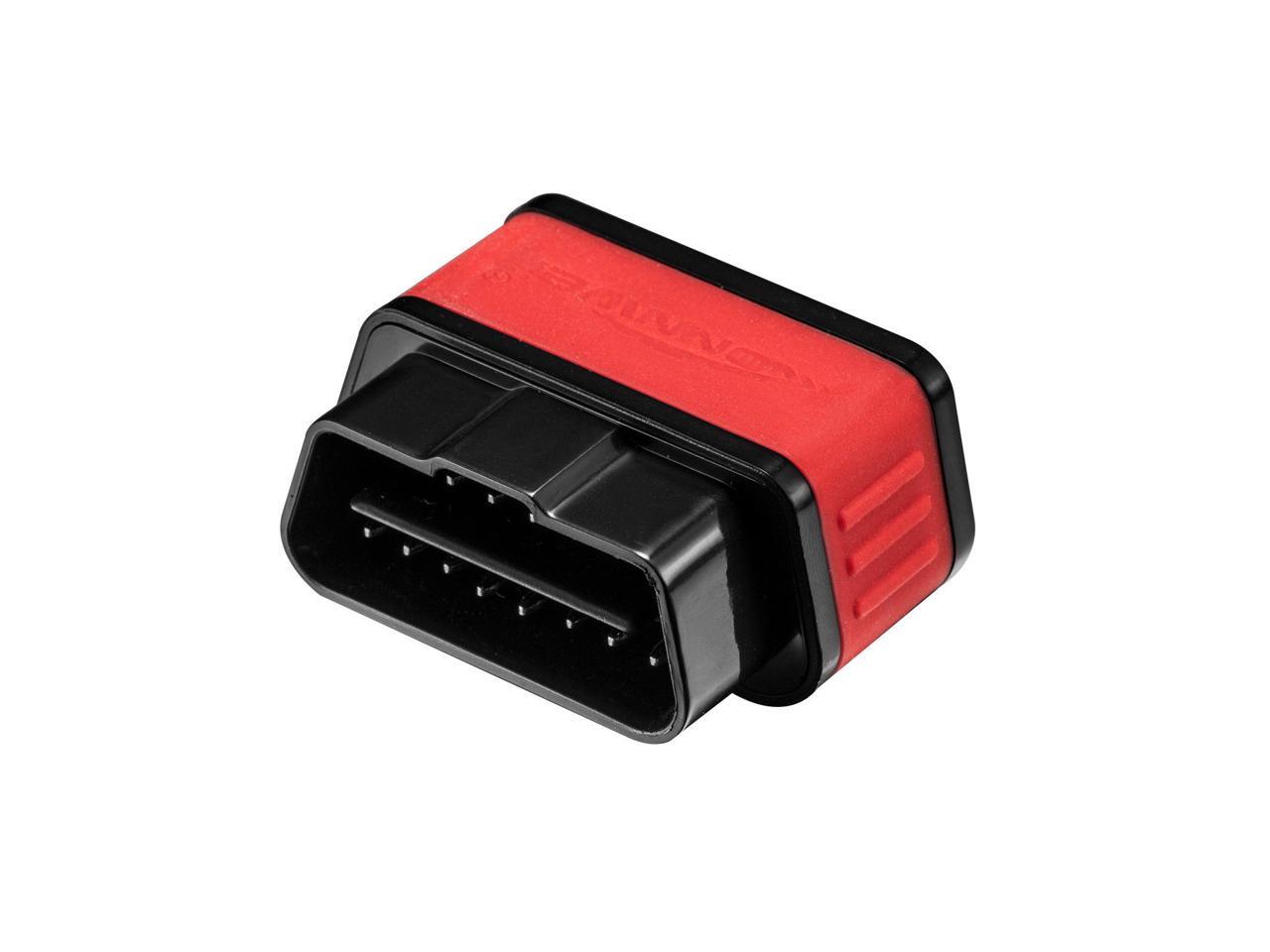

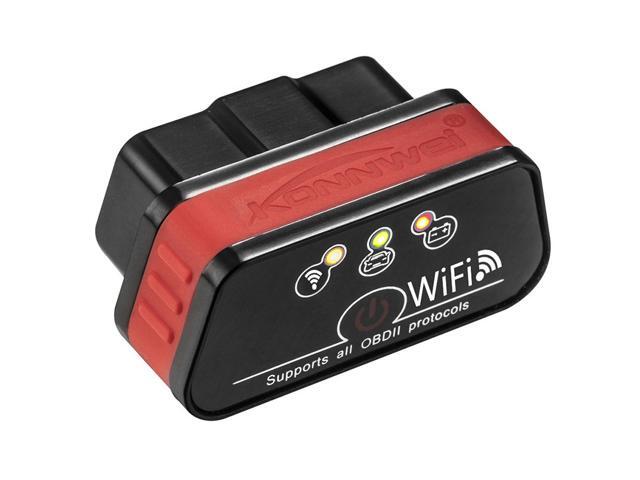

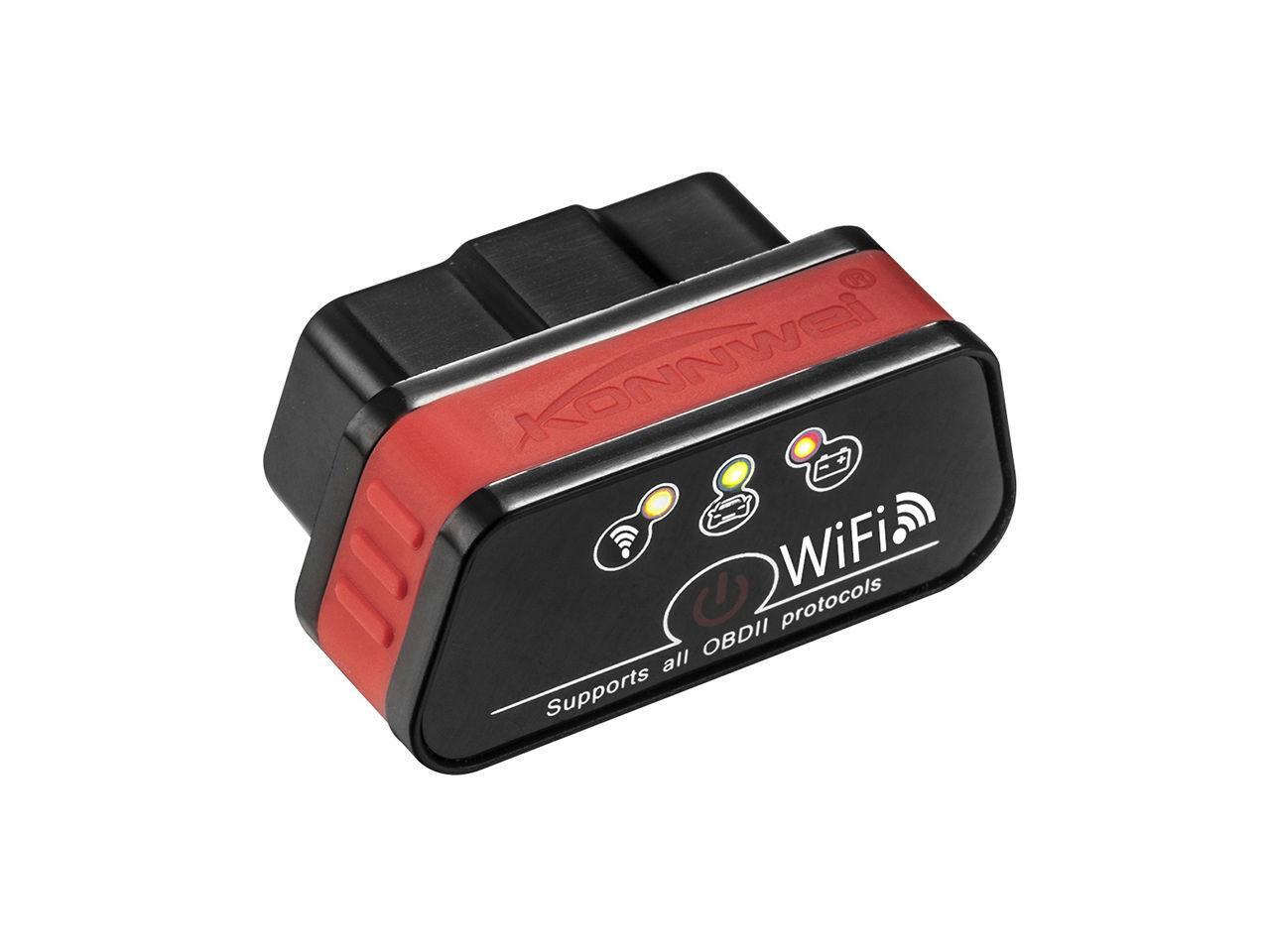

KW903 ELM327 WIFI OBD2 ODB2 II Detector General Motors Auto Fault Diagnostic Scanner Tool Supports IOS/Android

If you choice color out of stock, we will send a message to you. If you do not reply in 24h, we will send it random. New WIFI version KONNWEI OBDII scan tool, which is a high-quality automotive scanning tool that supports all OBD-II protocols, including SAE J1850 PWM ( 41.6K baud), SAE J1850 VPW ( 10.4K baud), ISO9141-2 (5 baud init, 10.4K baud) as well as USER2 CAN (11 bit ID, 50K baud). The KW903 OBDII scan tool allows for you to self diagnose issues with your vehicle therefore you will know what needs to be done next time you visit a mechanic.

You connect the KW903 tool to your car's OBDII Cable via the plug's 16 pin interface, and once connected the iCar scan tool will never have to be unplugged. As it uses WIFI, you have a stable wireless connectivity range of around 8 meters. In addition it does not require any wires or batteries since the adapter is powered by the diagnosis socket. Fault code Reader + WIFI network connection.
Specifications: General
Diagnose Interface: 16 Pin

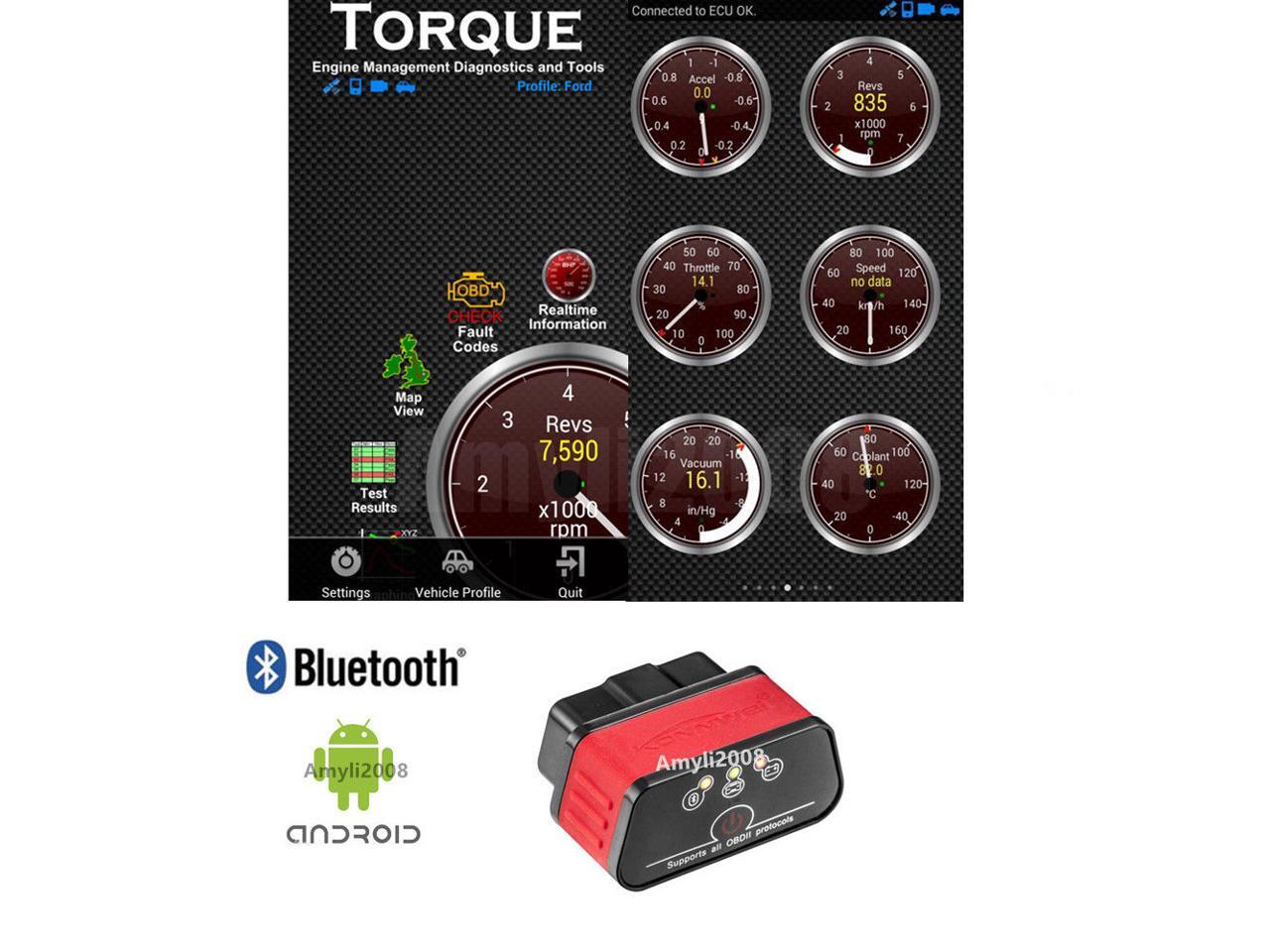

Software Platform Supported: Android, iPhone or iPad (CAN'T use for Mac) Android App in
Google Play: TORQUE (FREE) or Dashc

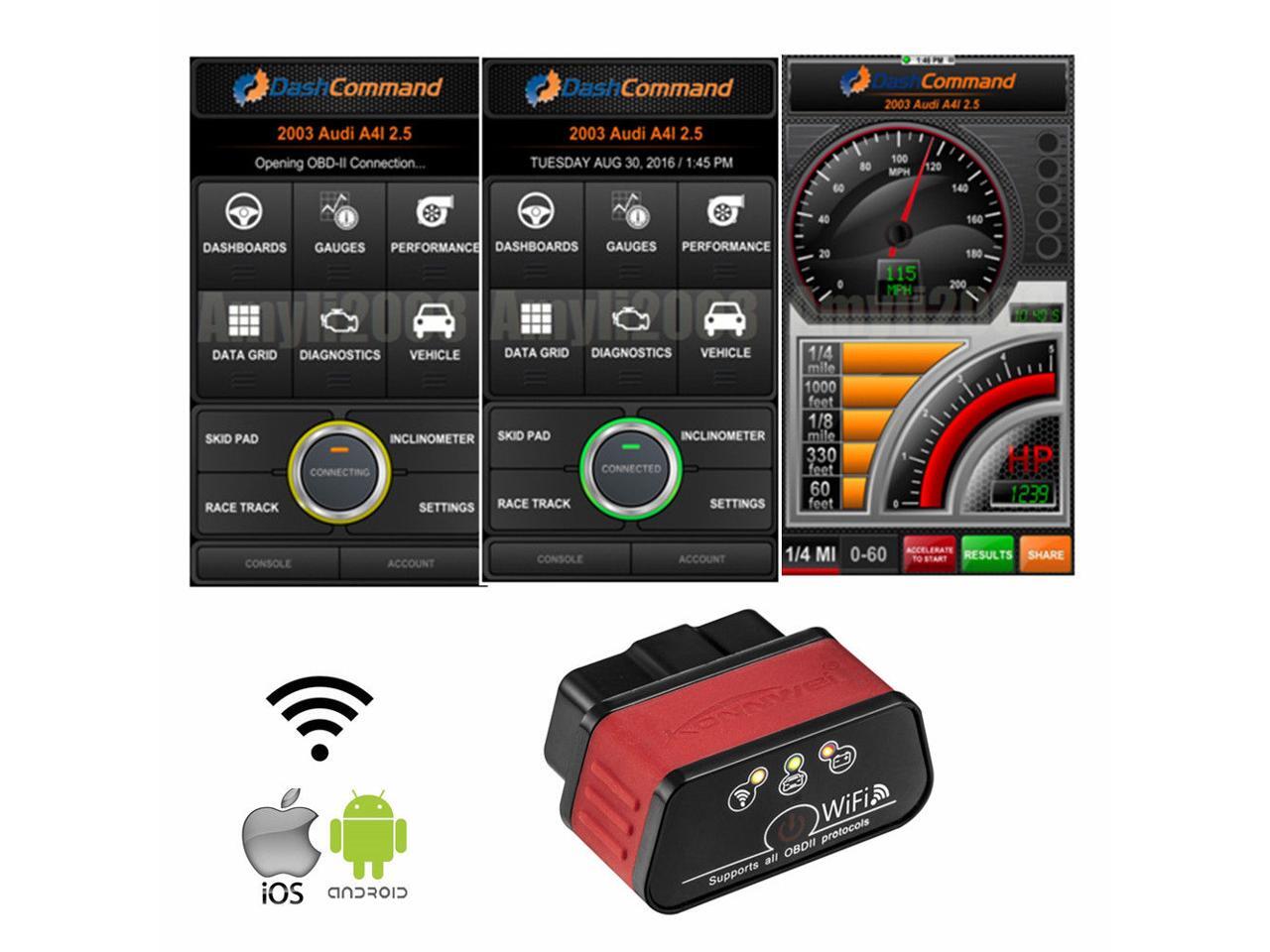

Command (NEED TO PAY EXTRA MONEY TO BUY THE App) iPhone or iPad APP in
Apple store: Dashc
Command (NEED TO PAY EXTRA MONEY TO BUY THE App)
Operating Voltage: 12V
SSID: CLK
Devices Port: 35000
Range: 50 ft (Line of sight)
Antenna: Internal
Power Consumption: 0.75 Watts (With Power Switch)
Wifi Standard: 802.11 a/b/g
Operating Temperature: -15 to 100
Deg Celsius Plastic: Automotive
Grade Physical Dimensions: 2.75 x 1.25 x 1.2 inches Description CLKis capable of communicating with vehicles which adopt following protocols: ISO 9141 ISO 11898(aka. CAN) ISO 14230(aka. KWP2000) ISO 15765(aka. CAN) SAE J1939 CLKis able to detect and interpret these protocols automatically. It also provides support for high speed communications and a low power sleep mode. It use AT commands to communicate with a host device (PC, notebook, iPhone, iPod touch, iPad and so on). There are plenty of software packages available, which are fully compatible with
CLK. Some of them have pretty useful features, such as engine running parameters monitoring, DTC reading and clearing, MPG meter, etc. You can even write your own software on a specified hardware platform if you wish, because the AT commands are fully documented and very well explained. CLKis measuring only 2.7 x 1.25 x 0.9 inches, and it comes attached with a 6 ft OBDII cable for easy installation. It also comes included with a power switch built-in to prevent the need for having to constantly disconnect your unit from the OBDII port. It is compatible with 1996 and later vehicles. Connecting to your iPhone / iPod touch is made by WIFI connection in adHoc mode. With proper software installed in the host device, you may have following parameters read out from your vehicle: Vehicle Speed RPM Fuel Consumption* Engine Coolant Temp Fuel Pressure Calculated Engine Load Throttle Position Intake Manifold Pressure Air Intake Temp Timing Advance Mass Air Flow Fuel Level Barometric Pressure EVAP System Vapor Pressure Fuel Trim Pls notice, Our product can't use for ECU, ECM, Airbag light or ABS Engine light. Also it can't wor
