WiFi KW902 ELM327 OBD2 OBDII Auto Fault Car Engine Diagnostic Scanner Tool For iPhone Android

If you choice color out of stock, we will send a message to you. If you do not reply in 24h, we will send it random.
SSID: CLK
Devices Port: 35000
Range: 50 ft (Line of sight)
Antenna: Internal
Power Consumption: 0.75 Watts (With Power Switch)
Wifi Standard: 802.11 a/b/g
Operating Temperature: -15 to 100
Deg Celsius Plastic: Automotive
Grade Physical Dimensions: 2.75 x 1.25 x 1.2 inches Description CLKis capable of communicating with vehicles which adopt following protocols: ISO 9141 ISO 11898(aka. CAN) ISO 14230(aka. KWP2000) ISO 15765(aka. CAN) SAE J1939 CLKis able to detect and interpret these protocols automatically. It also provides support for high speed communications and a low power sleep mode. It use AT commands to communicate with a host device (PC, notebook, iPhone, iPod touch, iPad and so on). There are plenty of software packages available, which are fully compatible with
CLK. Some of them have pretty useful features, such as engine running parameters monitoring, DTC reading and clearing, MPG meter, etc. You can even write your own software on a specified hardware platform if you wish, because the AT commands are fully documented and very well explained. CLKis measuring only 2.7 x 1.25 x 0.9 inches, and it comes attached with a 6 ft OBDII cable for easy installation. It also comes included with a power switch built-in to prevent the need for having to constantly disconnect your unit from the OBDII port. It is compatible with 1996 and later vehicles. Connecting to your iPhone / iPod touch is made by WIFI connection in adHoc mode. With proper software installed in the host device, you may have following parameters read out from your vehicle: Vehicle Speed RPM Fuel Consumption* Engine Coolant Temp Fuel Pressure Calculated Engine Load Throttle Position Intake Manifold Pressure Air Intake Temp Timing Advance Mass Air Flow Fuel Level Barometric Pressure EVAP System Vapor Pressure Fuel Trim

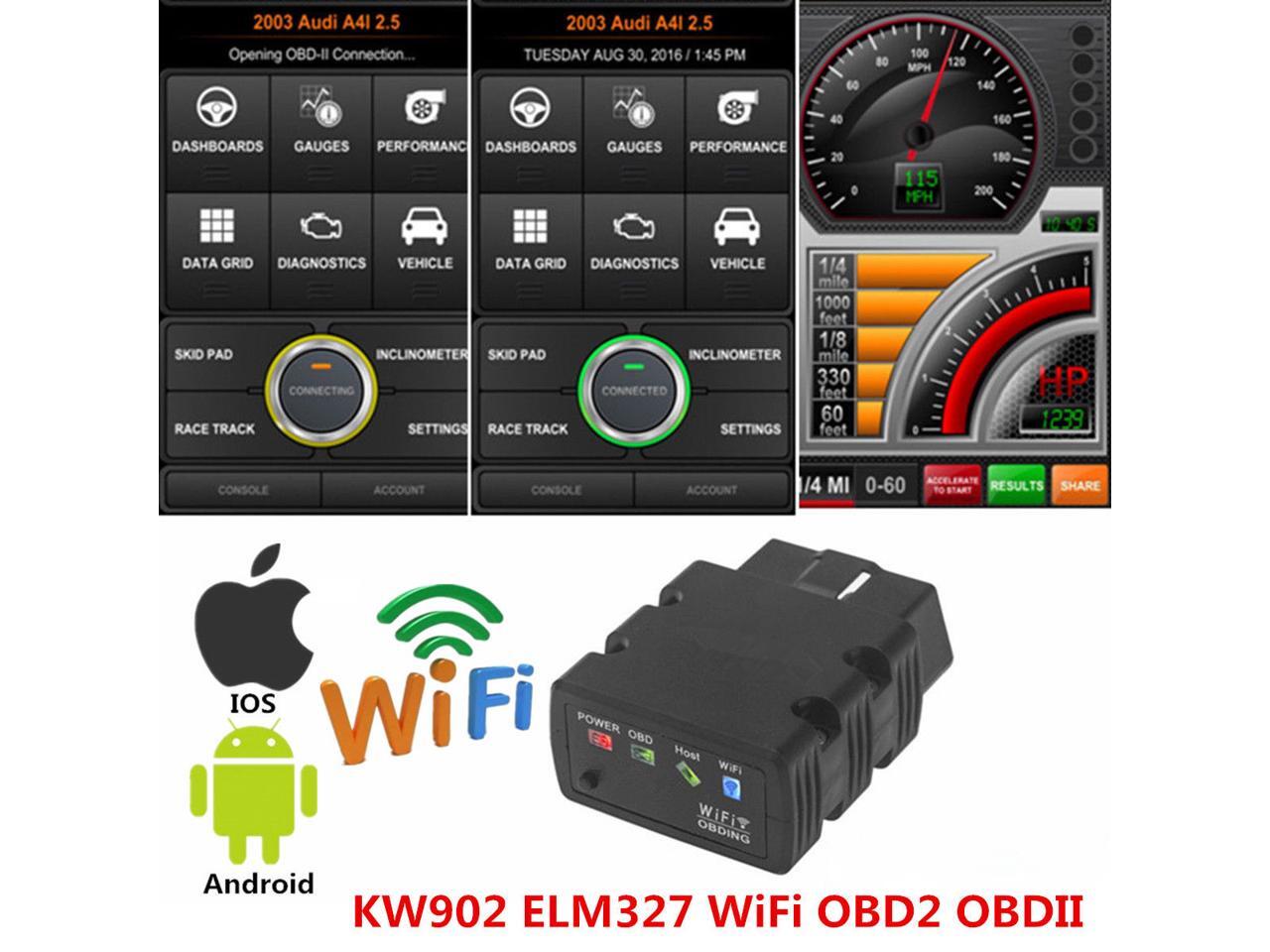

Software Platform Supported: Android, iPhone or iPad (CAN'T use for Mac) Android App in
Google Play: TORQUE (FREE) or Dashc
Command (NEED TO PAY EXTRA MONEY TO BUY THE App) iPhone or iPad APP in
Apple store: Dashc
Command (NEED TO PAY EXTRA MONEY TO BUY THE App) Pls notice, Our product can't use for ECU, ECM, Airbag light or ABS Engine light. Also it can't work for any Diesel vehicles.
Notice: The target car needs to be OBD2 complianced car, please check your car's ECU label or user manual to confirm its OBD2 compatibility. For Android users, please download the TORQUE or Dashc
Command app from the Google Play store. Torque is an OBD II performance and diagnostic tool for any device that runs the Android operating system. It will allow you to access the many sensors within your vehicles Engine Management System to view the trouble. For iPhone or iPad users, please download Dashc
Command in Apple store. (The software will require to pay the licence). if using a tablet to set tablet in discoverable mode in order to recieve a signal from the dongle.
