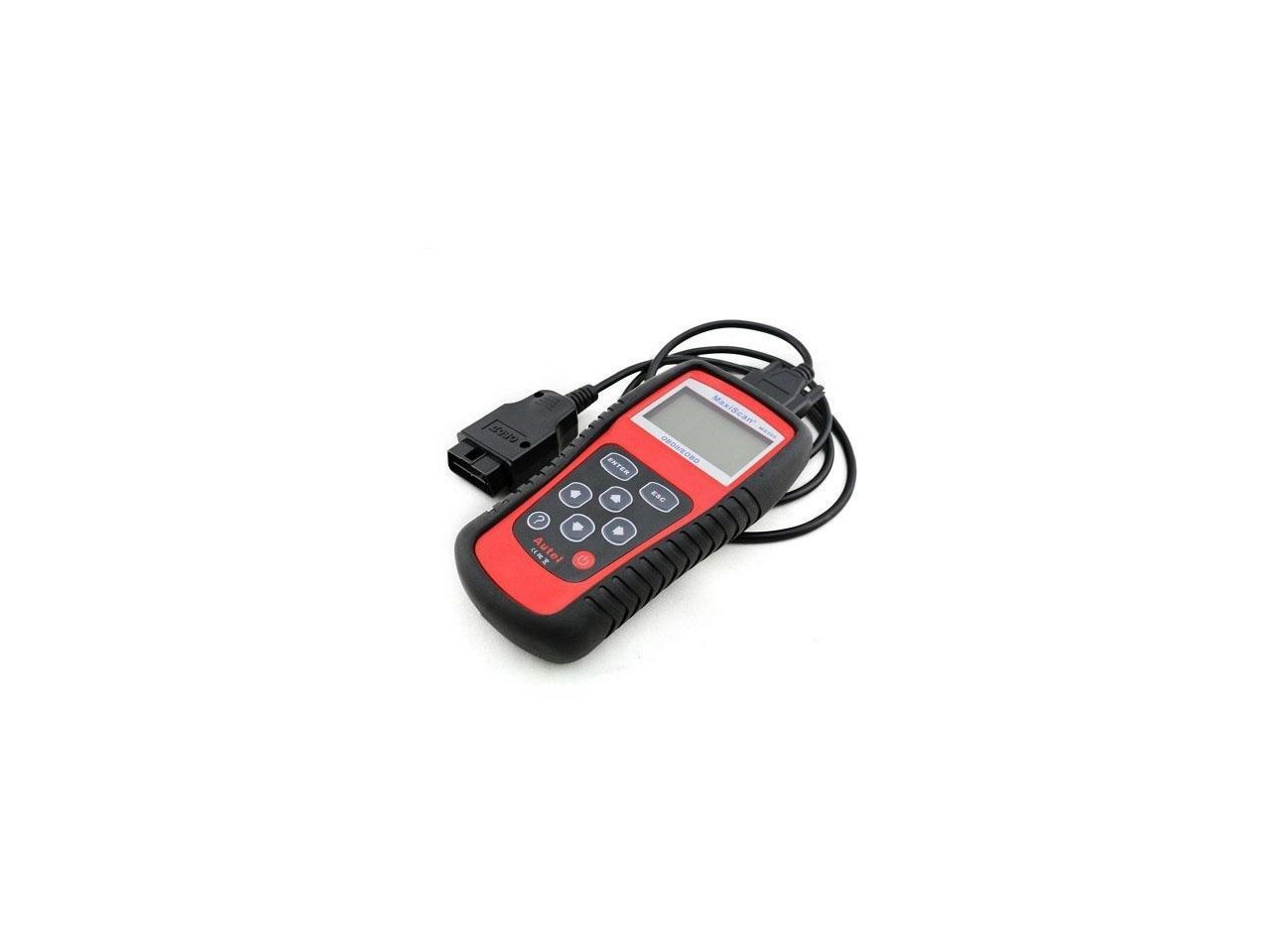

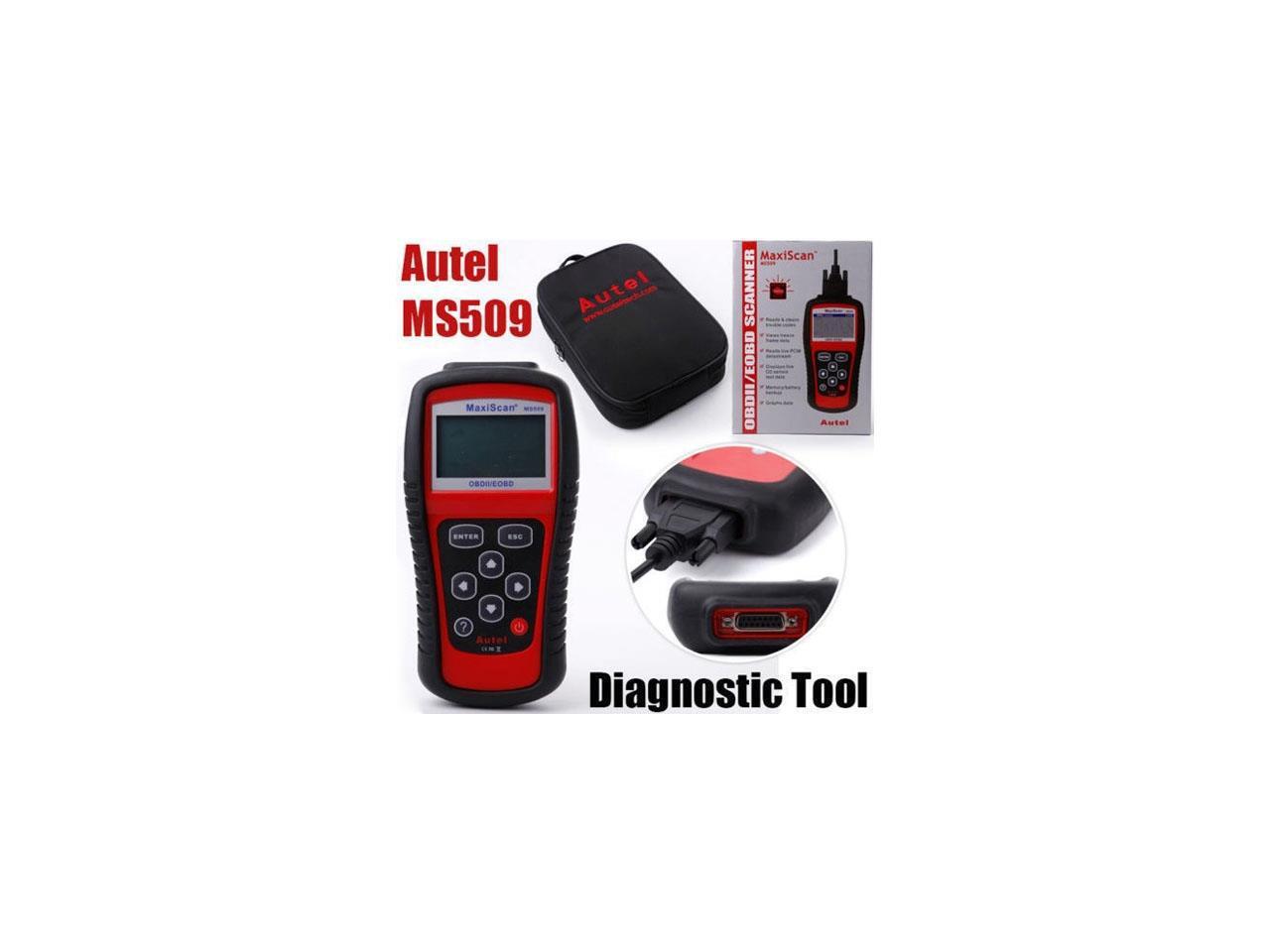

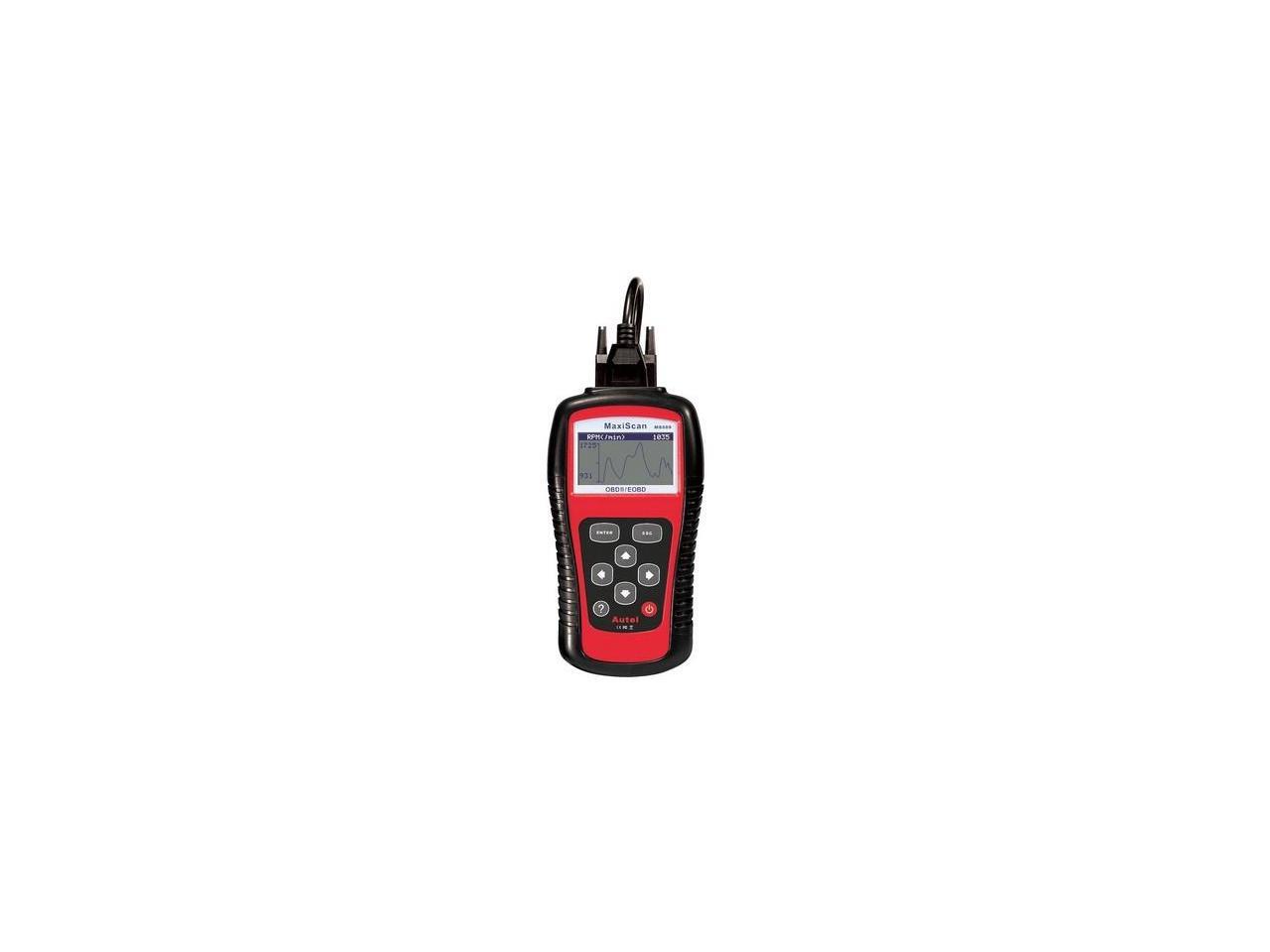

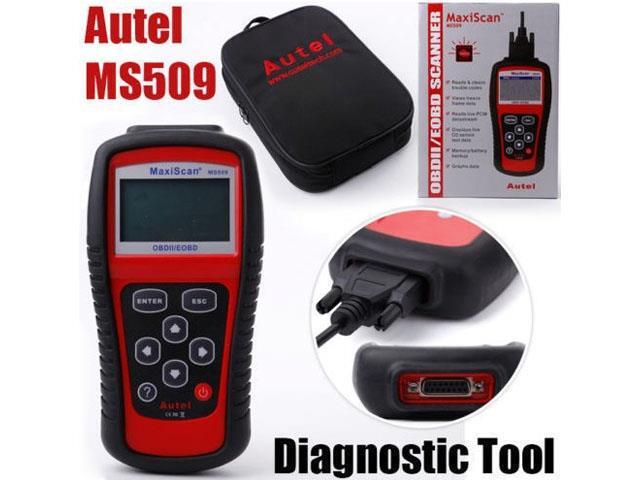

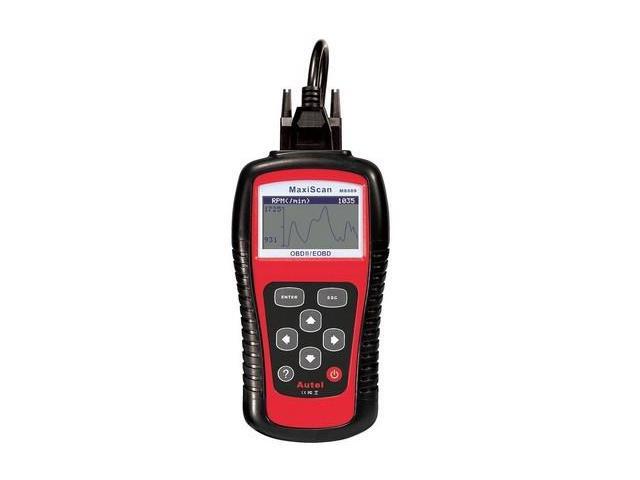

Autel MaxiScan MS509 OBDII/EOBD Complient Auto Code Reader Scanner Diagnostic

The MS509 OBD II/EOBD Scanner supports all nine OBD II test modes on all OBD II compliant vehicles to enable technicians to accurately diagnose complex

problems. This ergonomic scan tool, though sophisticated yet easy-to-use, makes your vehicle service experience much more pleasant!


Features & Benefits:

Works on all 1996 & later OBD2 compliant US, European & Asian vehicles.
Easily determines the cause of the “Check Engine Light”.
Retrieves generic (P0, P2, P3, & U0) & manufacturer specific (P1, P3, and U1) codes.
Turns off Check Engine Light, clears codes & resets monitors.
Displays DTC definitions onscreen.
Views freeze frame data.
Displays monitor & I/M readiness status (emissions).
Identifies pending codes.
Reads live PCM data stream.
Displays live O2 sensor test data.
Graphs data – (1996 and newer).
Reads, stores & playbacks live sensor data.
Memory/battery backup for off-vehicle data review & analysis.
Bilingual interface & definitions—English/Spanish.
Performs modules present test.
Retrieves vehicle information (VIN, CID and CVN).
Supports CAN (Controller Area Network) & all other current OBD2 protocols.
Built-in OBD2 DTC lookup library.
Large easy-to-read backlit LCD screen.
Software upgradeable via internet.
Prints data via PC.

Vehicle Covered:



GM '96 - Current Year (OBD-II)
Ford '96 - Current Year (OBD-II)
Chrysler '96 - Current Year (OBD-II)
Toyota '96 - Current Year (OBD-II)
Honda '96 - Current Year (OBD-II)
NISSAN '96 - Current Year (OBD-II)
All other Asian and European '96 - Current Year (OBD-II)

Specifications:
Display: Backlit,128×64pixel display with contrast adjustment.
Width*Height*Thickness: 10cm*20cm*4cm
Operating Temperature: 0 to 60?(32 to 140?)
Storage Temperature: -20 to 70?(-4 to 158?)
External Power: 8.0 to 18.0 V power provided via vehicle battery
Internal battery: 9V cell battery
Dimensions: shown in picture
NW: 0.38KG(0.84lb),GW:0.55KG(1.21lb)


Package Include:

1 x Main unit of Code Scanner
1 x 6-foot OBD II cable
1 x USB cable
1 x CD User's Manual
1 x Carrying Bag
