$130.57
Ships from United States.
Meet Your Seller

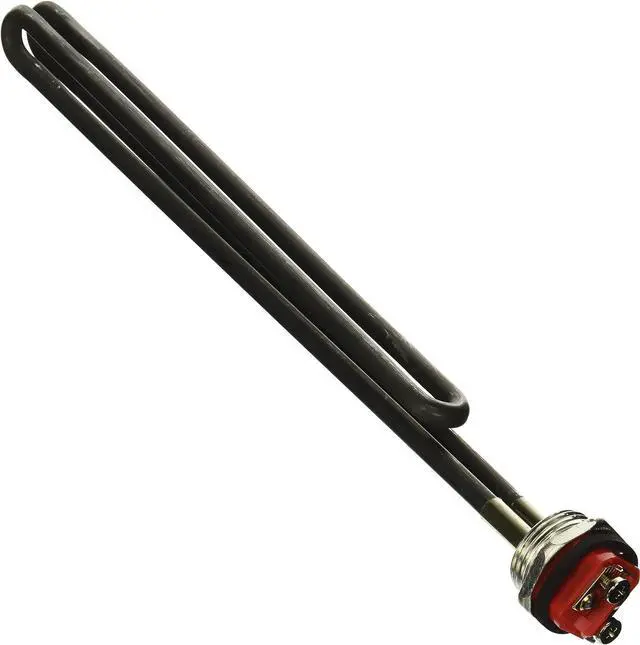

Rheem SP10869MM Screw-In 240-Volt by 4500-Watt Element, Premium Resistored Stainless Steel
- For best results, use only Rheem replacement parts for repairing your Rheem Water Heater
- Watt Density Classification: LWD, Input Voltage (V): 208, Input Voltage (V): 240, Wattage at 208V (W): 3380
- Watt Density at 208V (W/sq. in.): 70, Wattage at 240V (W): 4500, Watt Density at 240V (W/sq. in. ): 93, Cold Resistance (ohms): 12.80
- Element Diameter (in.): .316, Element Length - Flange to Tip (in.): 13.44, Mounting Type: Threaded, Actual Thread Size - Outside Diameter(in.): 1-9/32
- Thread Type Series Designation: NPSM, Configuration: Fold back, Nominal Thread Size - (in.): 1, Threads per Inch: 11-1/2
+
+
Overview
Specs
Reviews
For best results, use only Rheem replacement parts for repairing your Rheem Water Heater
Watt Density Classification: LWD, Input
Voltage (V): 208, Input
Voltage (V): 240, Wattage at 208V (W): 3380
Watt Density at 208V (W/sq. in. ): 70, Wattage
at 240V (W): 4500, Watt Density at 240V (W/sq. in. ): 93, Cold Resistance (ohms): 12.80
Element Diameter (in. ):. 316, Element Length - Flange to Tip (in. ): 13.44, Mounting
Type: Threaded, Actual Thread Size - Outside Diameter(in. ): 1-9/32
Thread Type Series Designation: NPSM, Configuration: Fold back, Nominal Thread Size - (in. ): 1, Threads per
Inch: 11-1/2
Watt Density Classification: LWD, Input
Voltage (V): 208, Input
Voltage (V): 240, Wattage at 208V (W): 3380
Watt Density at 208V (W/sq. in. ): 70, Wattage
at 240V (W): 4500, Watt Density at 240V (W/sq. in. ): 93, Cold Resistance (ohms): 12.80
Element Diameter (in. ):. 316, Element Length - Flange to Tip (in. ): 13.44, Mounting
Type: Threaded, Actual Thread Size - Outside Diameter(in. ): 1-9/32
Thread Type Series Designation: NPSM, Configuration: Fold back, Nominal Thread Size - (in. ): 1, Threads per
Inch: 11-1/2
