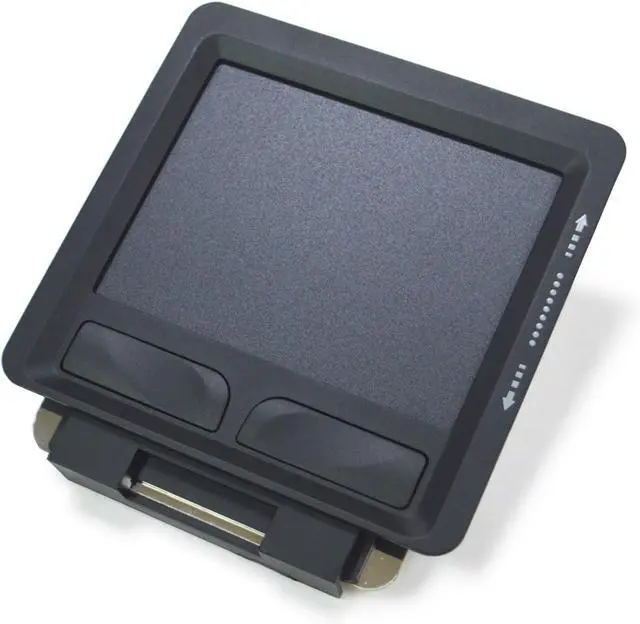

Main image of ELSRA PS/2 Touchpad Trackpad Board Module for KVM Console or Industrial Use TPM-3000 Black, ABS Cover with Capacity Sensor Board

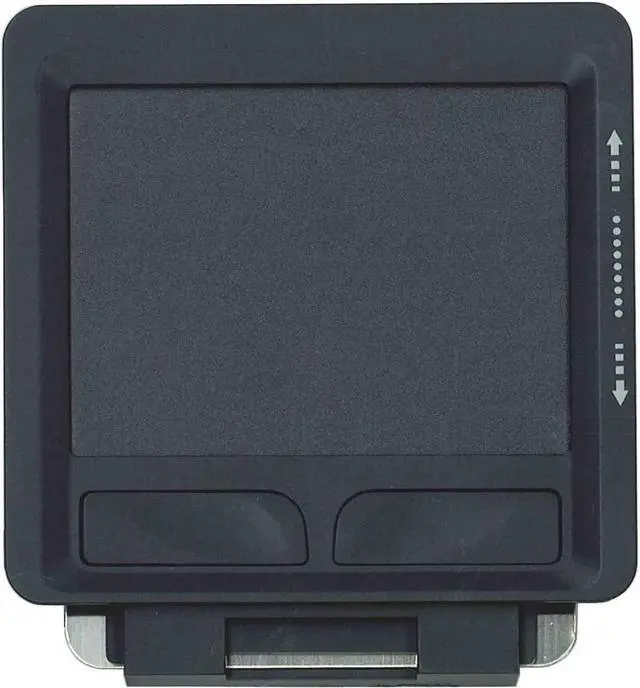

Alt view image 2 of 4 - ELSRA PS/2 Touchpad Trackpad Board Module for KVM Console or Industrial Use TPM-3000 Black, ABS Cover with Capacity Sensor Board

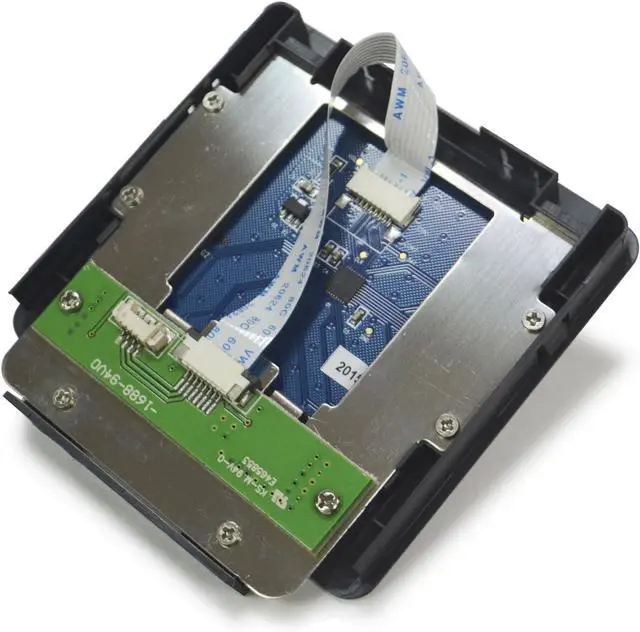

Alt view image 3 of 4 - ELSRA PS/2 Touchpad Trackpad Board Module for KVM Console or Industrial Use TPM-3000 Black, ABS Cover with Capacity Sensor Board

Alt view image 4 of 4 - ELSRA PS/2 Touchpad Trackpad Board Module for KVM Console or Industrial Use TPM-3000 Black, ABS Cover with Capacity Sensor Board

Shop All JAOCDOEN Products | Visit POLING Store

ELSRA PS/2 Touchpad Trackpad Board Module for KVM Console or Industrial Use TPM-3000 Black, ABS Cover with Capacity Sensor Board

PS/2 interface
300 dpi resolution
Emulation of the scrolling wheel with 2 control buttons
Compatible with Windows XP, Vista, Windows 7, Windows 8 or later

Overview

Specs

Reviews

Description:
TPM-3000 TouchPad Module is a pointing device that includes two switches, left button and right button. It also features an emulated scroll wheel of a mouse. To move the cursor, the user can just lightly slide on the device surface by finger. Thanks to modularize mechanical design, it provides flexible product configuration and easy maintenance.
Specifications:
Buttons/ Scrolling Wheel: Left & right buttons ; support emulation of the scrolling wheel
Resolution: 300 dpi
The Fast Speed: 117 cm/s
Displacement Magnification: 1.00 ~ 1.27
Sensor Area: 49mm/ 1.93 inch (D) x 65mm/ 2.56 inch (W)
Interface: PS/2 only
Operating Voltage / Current: 5V + 0.3V / 3.4mA
Voltage Rise Time: <1ms
Voltage Fluctuation: <100mA
Connector (to PS/2): Horizontal SMD 4-Pin connector, 1.25mm space
Operating Temperature: 0 to 50 degrees Celsius (10% to 85% RH, 25 degree Celsius)
Storage Temperature: -10 to 60 degrees Celsius (5% to 90% RH, 25 degree Celsius)

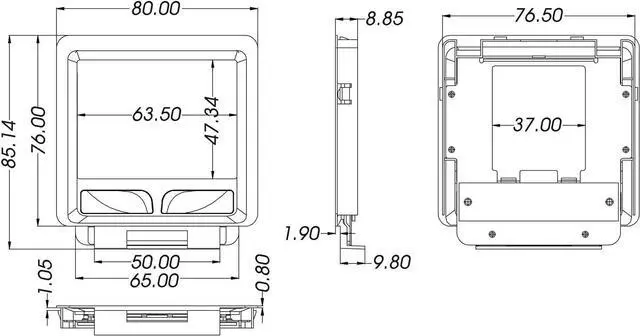

Module Dimension: 76mm/ 2.99inch (D) x 80mm/ 3.15inch (W) x 8.85mm/ 0.35inch (H)
Weight: 50 + 2gm (N.W.)
Package Includes:
1 x Touchpad Module
