Inverter Board, High Frequency and Low Power Inverter Module, Durable for Outdoor Use (DC24V)

1. SUPERIOR PERFORMANCE: High frequency inverter board with high energy efficiency, long life, low power consumption, easy and safe to use, energy efficient and durable.
2. MULTIPURPOSE: The inverter module can be used as a pure sine , modified sine , single silicon or four silicon pre stage inverter circuit.
3. PRACTICAL ACCESSORY: The inverter board is suitable for DIY production, repair and replacement for electronic hobbyists, as well as for manufacturers' control cabinets.
4. WIDE OCCASSION: High frequency inverter board is a good helper for wilderness, night camps, night market stalls and driving families.
5. APPLICABLE: inverter module can be used for lamps, noninductive household appliances, small rice cookers, energy saving lamps, soldering, switching power supplies, etc.
Specification:
Item Type: Inverter Board
Material: Metal, PCB
Power: 1000W
Output Voltage: Multi Voltage
V0-V1=220V V0-V2=330V V0-V3=380V V0-V4=420V
V1-V2=110V V1-V3=160V V1-V4=200V
V2-V3=50V V2-V4=110V
V5=18V
Static No Load Current: Approx. 0.35A
Output Frequency Waveform: Approx. 20KHZ High Frequency Quadrate
Protection: No Protection
How to Use:

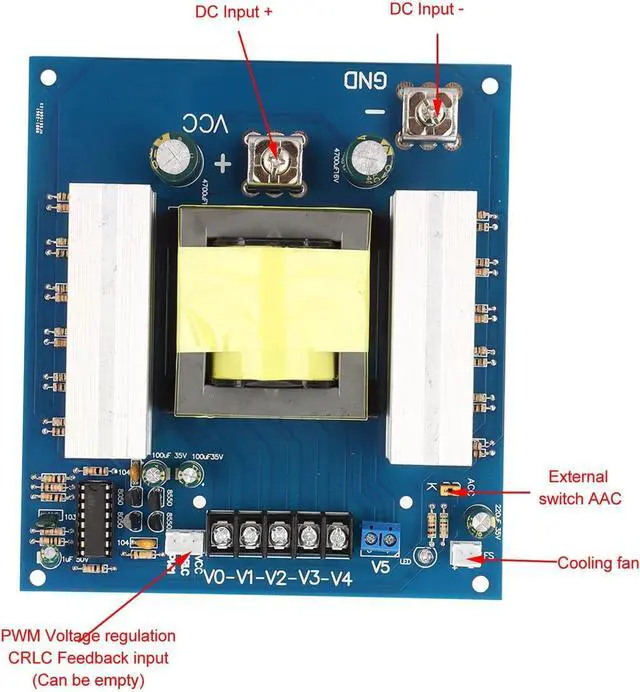

Start to use, just install according to the diagram.
Package List:
1 xInverter Board
Note:
1. This board is a high frequency quadrate AC output, which cannot be carried by general induction appliances. Such as: motors, electric fans, coil , etc. can not be used directly.
2. simple resistive small electrical appliances, cheap resistive LED lights may not be used.

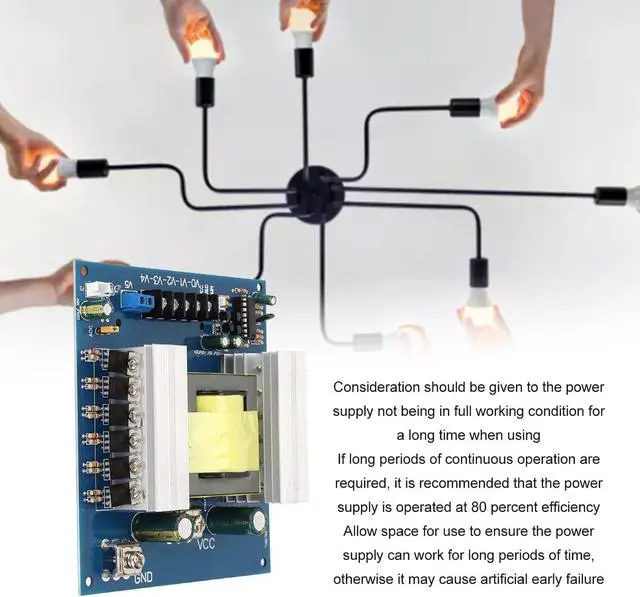

3. Consideration should be given to the fact that the power supply should not be at full load for a long period of time when in use. If it needs to work continuously for a long time, it is recommended to run at 80 percent efficiency.
4. Allow space for use to ensure that the power supply can work for long periods of time, otherwise it may cause artificial early failure.
5. The load is
