PCIe to M.2 Adapter with PoE Function Compatible with Raspberry Pi 5, Pi 5 POE HAT M.2-M-Key HAT+ Supports NVMe Protocol M.2 SSD 2230/2242, IEEE 802.3af/at Network Standard with Metal Heatsink

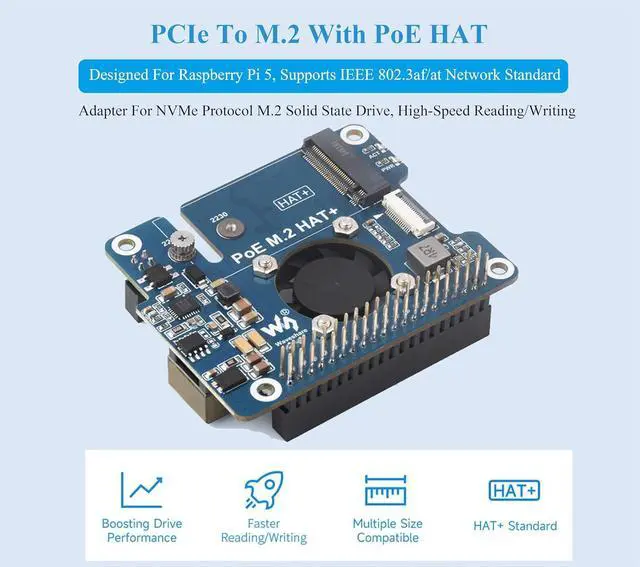

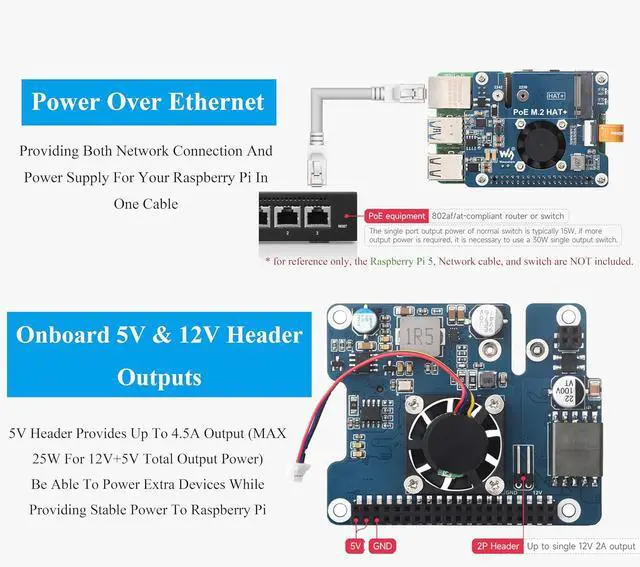

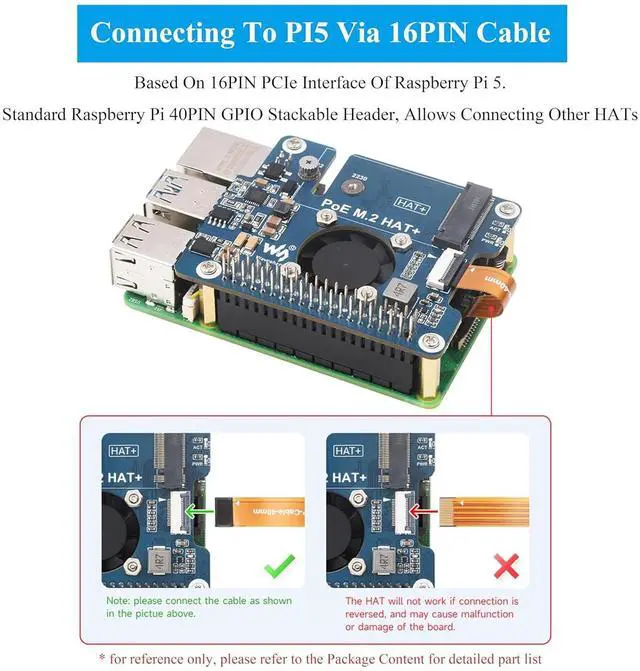

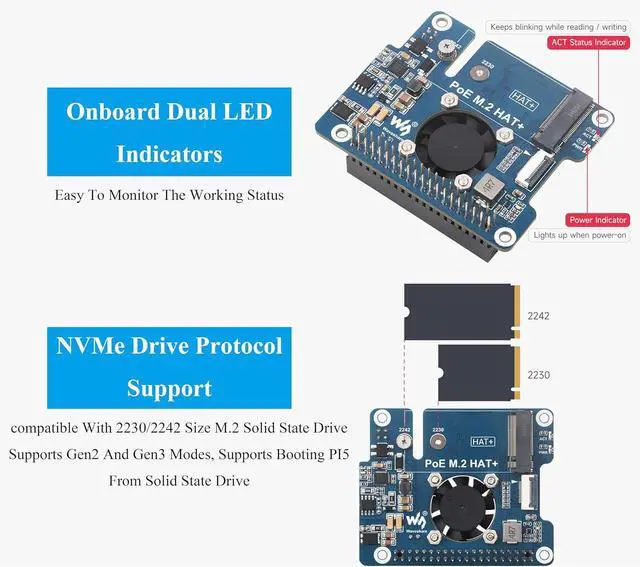

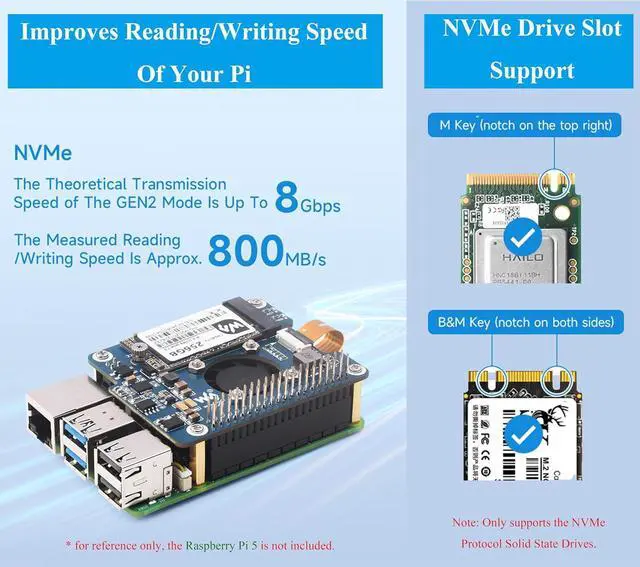

This is PCIe To M.2 Adapter With PoE Function compatible with Raspberry Pi 5. It combines Power over Ethernet (PoE) and PCIE to M.2 functions. Supports IEEE 802.3af/at network standards; Power Over Ethernet---Providing both network connection and power supply for your Raspberry Pi in one cable; Support NVMe Drive Protocol --- Compatible With 2230/2242 Size M.2 Solid State Drive. Supports Gen2 and Gen3 Modes, Supports Booting PI5 From Solid State Drive; Connecting to PI5 via 16PIN Cable---Based on 16PIN PCIe Interface of Raspberry Pi 5. Standard RPi 40PIN GPIO stackable header, allows connecting other HATs; With Active Cooling fan---Accelerate Cooling Effect, More Stable Performance. Onboard Dual LED Indicators--- Easy to monitor the Working Status
