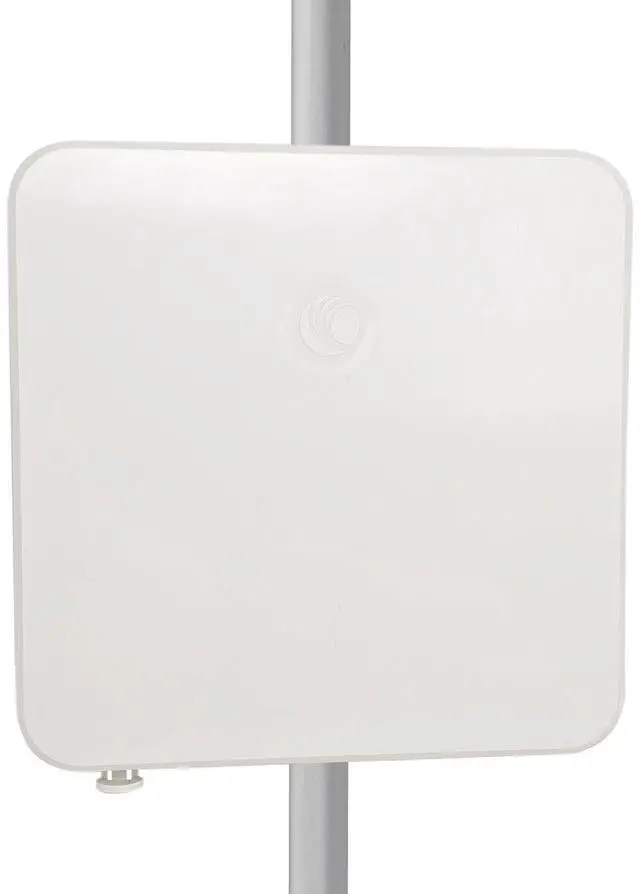

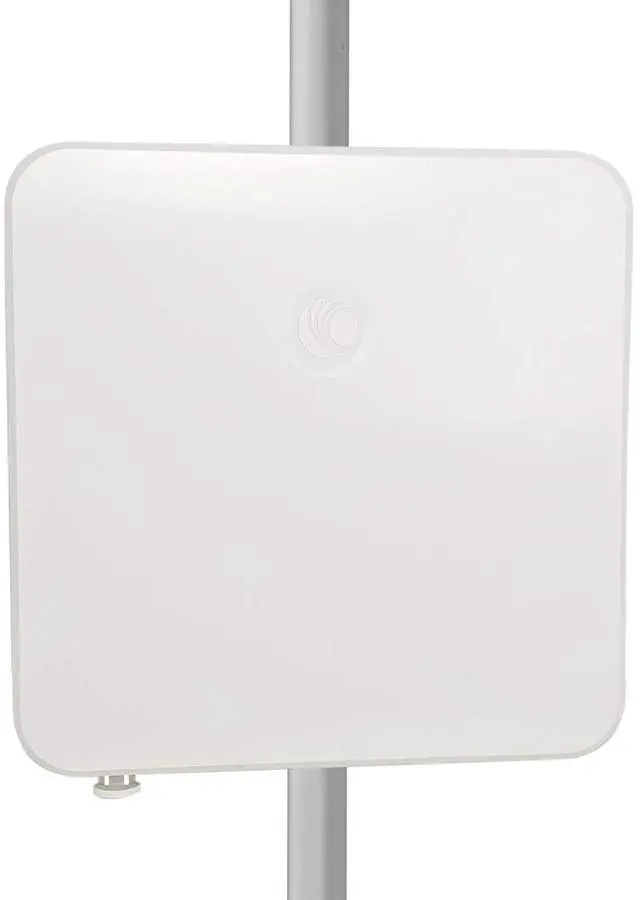

Cambium Networks - C058900C901A - ePMP Force 300-19R, 5GHz Subscriber Module with 19 dBi Integrated Antenna, FCC, IP67.

Cambium Networks C058900C901A (US Version) ePMP 5GHz Force 300-19R SM (FCC) (US cord) Wireless service providers and enterprises around the globe are challenged to deliver reliable connectivity in overcrowded RF environments. As spectrum increasingly becomes a scarce commodity, finding the right broadband connectivity solution is vital for all low and high-density deployments. Cambium Networks resolves this challenge with a breakthrough technology solution that delivers superior performance, resiliency and reach in the most congested environments. Combining the latest 802. llac Wave 2 technology and the field proven scalable performance of ePMP, the Force 300-19R delivers up to 600 Mbps of capacity.

The Force 300-19R is a powerful yet affordable subscriber module compatible with the ePMP 3000 Access Point and using the forward compatibility features also interoperates with the ePMP 2000 to ease the migration into the 802. llac Wave 2 technology. The Force 300-19R has a 19 dbi integrated antenna with a narrow beamwidth and reliable IP67 mechanics.
Features: Cambium Networks' ePMP Force 300-19R is designed to operate in high interference environments and provides superior throughput up to 600 Mbps of real user data. The Force 300-19R also supports narrow 5 and 10 MHz channels especially useful in 4. 9 GHz licensed bands and other areas where smaller channels are needed. The ePMP Force 300-19R supports real time spectrum monitoring without degradation in throughput. Configurable modes of operation ensure robust adaptivity to both symmetrical and asymmetrical traffic while providing high performance and round-trip latency as low as 3-5 ms. QoS management offers outstanding quality for triple play services - VoIP, video, and data - and provides three levels of traffic priority. The integrated 19 dBi panel antenna has a small form factor and provides excellent range. Refer to Cambium Networks LINK
Planner[tm] for estimating capacity and availability. Installations are quick and reliable with the IP67 ruggedized housing and easy to install mount, capable of pole and wall mounting
Product

Specifications

: Channel
Spacing: Configurable in 5 MHz increments
Frequency Spacing: Wide Band Operation 4910 - 5970
MHz (Note: Allowable frequencies and bands are dictated by individual country regulations. )
Channel Width: 20 / 40 / 80 MAC (Media
Access Control) Layer: Cambium
Proprietary Physical Layer: 802.11 ac Wave 2 (2x2 MIMO/OFDM)
Ethernet Interfaced: 10/100/1000 BaseT, Compatible with Cambium PoE & Standard PoE pinouts
Protocols Used: IPv4/IPv6 (Dual Stack), UDP, TCP, ICMP, SNM
Pv2c, NTP, STP, IGMP, SSH 1Q with 802.1 p priority
ARQ: Yes Nominal Receive Sensitivity (w/FEC) @20
MHz Channel: MCS0 = -89 dBm to MCS8 (256 QAM-3/4) = -68 dBm (per chain) Nominal Receive Sensitivity (w/FEC) @40
MHz Channel: MCS0 = -87 dBm to MCS9 (256 QAM-5/6) = -66 dBm (per chain) Nominal Receive Sensitivity (w/FEC) @80
MHz Channel: MCS0 = -84 dBm to MCS9 (256 QAM-5/6) = -61 dBm (per chain)
Modulation Levels (Adaptive): MCS0 (BPSK) to MCS9 (256 QAM-5/6)
Transmit Power Range: 0 to +28 dBm (combined up to the regional EIRP limit) (1 dB interval) Surge Suppression 1 Joule Integrated (C000000L065A - 30V Gigabit surge suppressor is recommended for optimum protection) Environmental IP67 Temperature -30°C to +60°C (-22°F to +140°F) Weight 1.45 kg ( 3.2 lbs. ) (includes mounting bracket) Wind Survival 180 km/hour (112 mi/hour) Dimensions (Diameter x Depth) 27.8 x 27.8 x 4.5 cm ( 10.9 x 10.9 x 1.8 in) without mounting bracket Pole Diameter Range 1 1.6 in ( 2.5 4.1 cm) with included clamp; up to 2.25 in ( 5.7 cm) with larger clamp Power Consumption 12 Watts Input Voltage Passive POE (30 VDC Nominal); 14-30 VDC range
Encryption: 128-bit AES (CCMP mode)
Certifications: FCCID Z8H89FT0048, Industry Canada Cert 109W-0048, CE EN 301 893 V 2.1. 1 ( 5.4 GHz), EN 302 502 V 2.1. 1 ( 5.8 GHz)
Frequency Range: 4.9 5.970 MHz
Antenna Type: Panel
Peak Gain: 19 dBi 3dB
Beam-width Azimuth:
