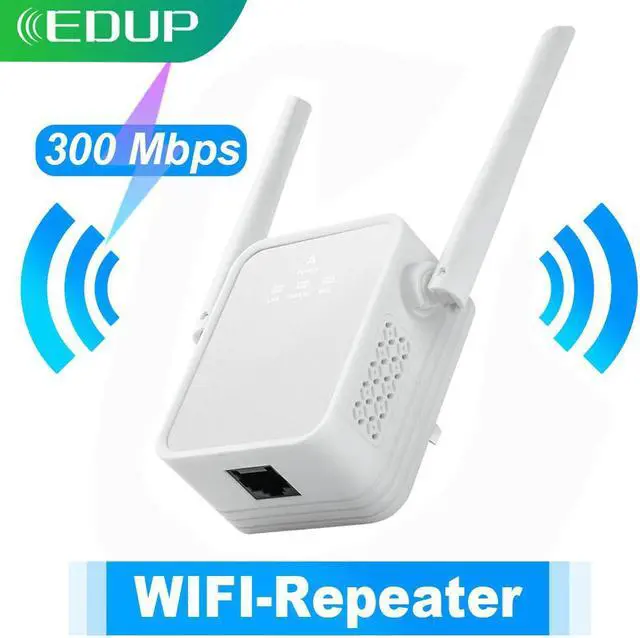

300Mbps Wifi Range Extender Repeater WPS Wireless Wi-Fi Signal Booster Amplifier Repetidor for wifi Router Access Point

NOTE

EU Plug:US Plug +EU Converter

Why buy our products?

1.Equipped with two gain rotatable antennasEasily omnidirectional Wifi coverage

2.Wall-plug design Plug in the power can beeasily used

3.one-click WPS connection Convenient andrapid expansion

4.Easily expand wireless coverage Bid farewelto the weak signal

Specification parameter

Main chip:MT7628KN

RAM:8MB

SPI FLASH:2MB

Network protocol:IEEE 802.11nIEEE 802.11gIEEE 802.11b

Channel Frequency band:Channel selection(1-13)

Antenna:2pcs 2dbi High gain omni-directional antenna

Port:RJ45

LED

POWER:power-on keeps on,System startup finished 5S

flashes once,Upgrade flash

SIGNAL:Signal light keeps on extended successful,Signal

light flashing too far from the router/main AP,Signal light put out Extended failure.

WPS:Start WPS flashing

Button switch:ResetWPS

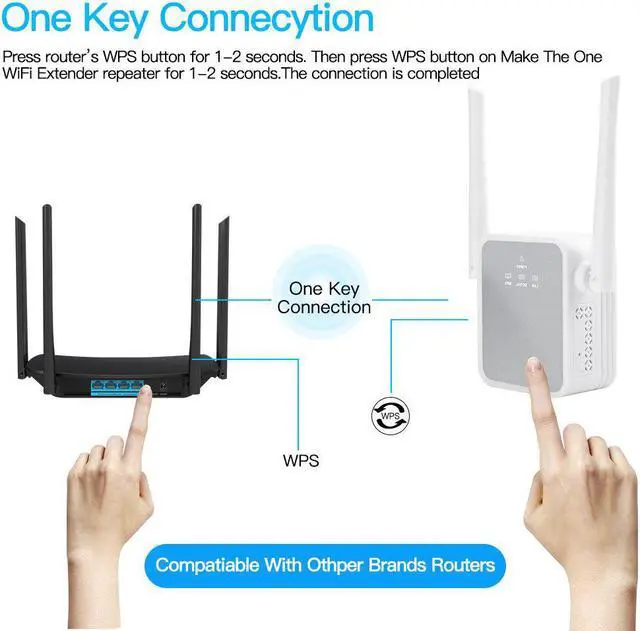

Special feature:One Key WPS repeater

Q&A

Q1. What is the wifi speed of this repeater ?

A1. The Speed is depend on the main router. If your router is dual band 2.4G & 5G wifi signal, this mode repeater can only received 2.4G wifi signal, and give 2.4G wifi speed.

Q2. Can't connect to internet after finished setting ?

A2. Please check whether you enter the same password as your router, and check is there any special characters in it, such as ~!@#$%^&*(). If yes, please change your router password. Repeater can not identify special characters.

Q3. How to reset the repeater ?

A3. Please long press the reset button for 10 seconds under powered. ( NOT WPS button, the reset button is at the side)

Precautions

Product List:

1*300Mbps Wifi Adapter
