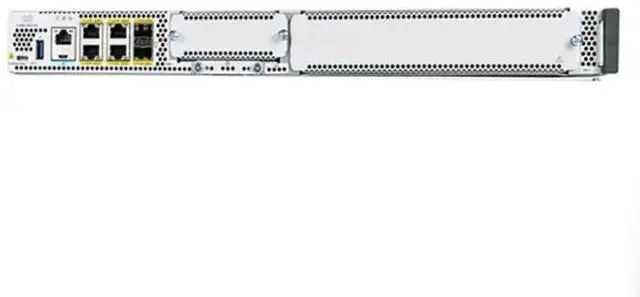

    Cisco Catalyst 8300-1N1S-6T - router - rack-mountable

    • Product Description: Cisco Catalyst 8300-1N1S-6T - router - rack-mountable
    • Device Type: Router
    • Enclosure Type: Rack-mountable - 1U
    • Data Link Protocol: Gigabit Ethernet
    • Performance: VPN throughput (IMIX IPSec): 5 Gbps ¦ VPN throughput (1400 B IPSec): 1.9 Gbps ¦ IPv4 forwarding throughput (1400-byte packet size): 19.7 Gbps
    • Capacity: Maximum overlay tunnels: 6000 ¦ ACL: 4000 ¦ Access Control Entries (ACEs) per system (IPv4): 72000 ¦ IPv4 routes: 1600000 ¦ IPv6 routes: 1500000 ¦ Queues: 16000 ¦ NAT sessions: 1200000 ¦ Firewall sessions: 512000 ¦ Virtual Routing and Forwarding (VRF) entries: 4000
    • Network / Transport Protocol: RSVP, NTP, IPSec, PPPoE, DHCP, DNS, L2TPv3, RTCP
    • Routing Protocol: OSPF, RIP, IS-IS, RIP-2, BGP, EIGRP, HSRP, DVMRP, VRRP, IGMPv3, GRE, OSPFv3, policy-based routing (PBR), MPLS, Bidirectional Forwarding Detection (BFD)
    • Remote Management Protocol: SNMP, SCP, OMP
    • VoIP Protocols: SRTP
    • Features: NAT support, PAT support, Syslog support, URL filtering, Class-Based Weighted
    +
    +
    Overview
    Specs
    Reviews
    • The Cisco Catalyst 8300 Series Edge Platforms are best-of-breed, 5G-ready, cloud edge platforms designed for accelerated services, multi-layer security, cloud-native agility, and edge intelligence to accelerate your journey to cloud.

      Cisco Catalyst 8300 Series Edge Platforms (Catalyst 8300) with Cisco IOS XE SD-WAN Software deliver Ciscos secure, cloud-scale SD-WAN solution for the branch. The Catalyst 8300 Series is purpose-built for high performance and integrated SD-WAN Services along with flexibility to deliver security and networking services together from the cloud or on premises. It provides higher WAN port density and a redundant power supply capability. The Catalyst 8300 Series Edge Platforms have a wide variety of interface options to choose from- ranging from lower and higher module density with backward compatibility to a variety of existing WAN, LAN, voice, and compute modules. Powered by Cisco IOS XE, fully programmable software architecture, and API support, these platforms can facilitate automation at scale to achieve zero-touch IT capability while migrating workloads to the cloud. Catalyst 8300 Series Edge Platforms also come with Trustworthy Solutions 2.0 infrastructure that secures the platforms against threats and vulnerabilities with integrity verification and remediation of threats.

      The Catalyst 8300 Series Edge Platforms are well suited for medium-sized and large enterprise branch offices for high WAN IPSec performance with integrated SD-WAN services.
