TP-Link AC750 Wireless Dual Band Router AC750 Wireless Dual Band Router

TP-Link Archer C20
Brand New
Includes Five Year WarrantyProduct # Archer C20

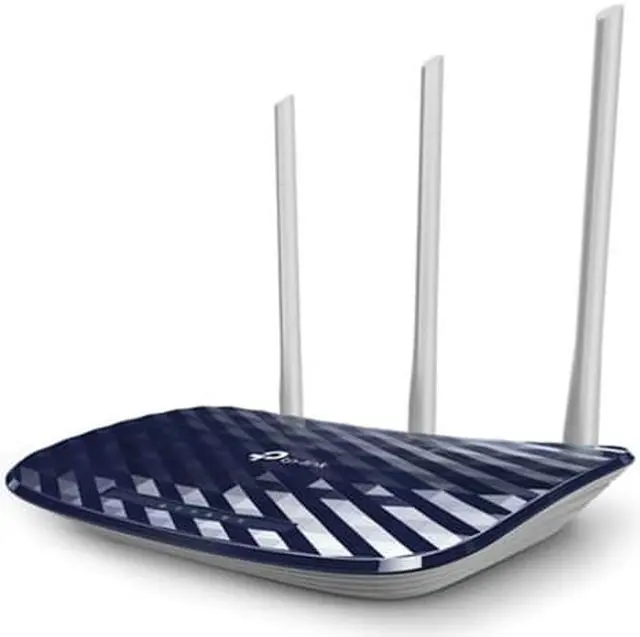

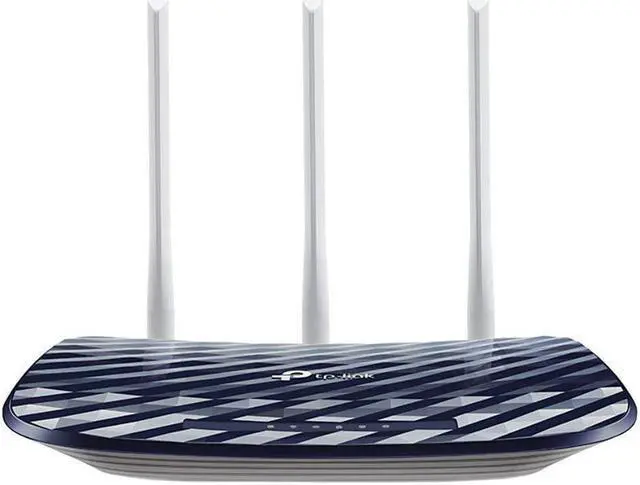

The TP-Link AC750 Wireless Dual Band Router comes with the next generation Wi-Fi standard. It features three external antennas with higher quality antenna technology that provide stable omnidirectional signal along with a incredible wireless coverage. Archer C20 offers you the flexibility of two dedicated networks and ensures amazing wireless performance. Simple tasks such as sending e-mails or web browsing can be handled by the 2.4GH z band while bandwidth intensive tasks like online gaming or HD video streaming can be processed by the 5GHz band all at the same time.


AC750 Wireless Dual Band Router Features:



HARDWARE FEATURES:

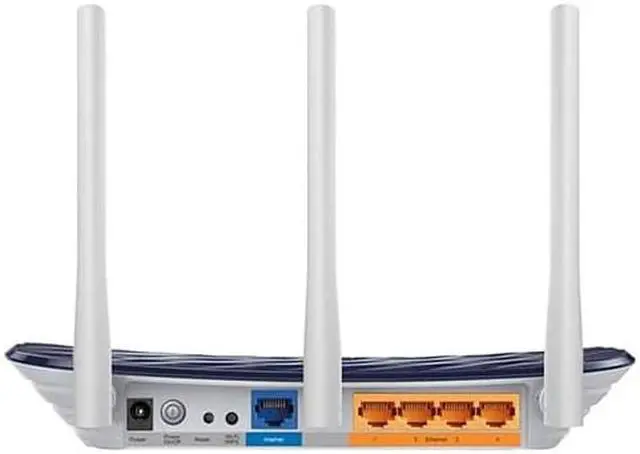

Interface:
- 4 10/100Mbps LAN ports
- 1 10/100Mbps WAN port
Buttons:
- WPS/Wi-Fi Button
- Reset Button
- Power On/Off Button
Antennas: 3 fixed Omni Directional Antennas
External Power Supply: 9VDC/ 0.6A (CE), 9VDC/ 0.85A (FCC
Dimensions (W x D x H): 9.1 x 5.7 x 1.4 in. (230 x 144 x 35mm)




WIRELESS FEATURES:


Wireless Standards:
- IEEE 802.11 ac/n/a 5GHz
- IEEE 802.11 b/g/n 2.4GH z
Frequency: 2.4GH z & 5GHz
Signal Rate
- 5 GHz
- 5GHz: Up to 433Mbps
- 2.4GH z: Up to 300Mbps

Reception Sensitivity
- 5GHz:
- 11a 54M: -76dBm; 11ac VHT20 MCS8: -70dBm;
- 11ac VHT40 MCS9: - 65.5 dBm; 11ac
VHT80 MCS9: - 61.5 dBm
- 2.4GH z:
- 11g 54M: -76dBm11n; HT20 MCS7: -74dBm;
- 11n HT40 MCS7: -71dBm

Wireless Function:
- Enable/Disable Wireless Radio
- WDS Bridge, WMM, Wireless Statistics
Wireless Security: 64/128-bit WEP, WPA / WPA2, WPA-PSK/WPA2-PSK encryption




SOFTWARE FEATURES:

WAN Type:
- Dynamic IP, Static IP, PPPoE, PPTP (Dual Access)
- L2TP (Dual Access), Bigpond
DHCP: Server, DHCP Client List, Address Reservation
Quality of Service: WMM, Bandwidth Control
Port Forwarding: Virtual Server, Port Triggering, UPnP, DMZ
Dynamic DNS: DynDns, NO-IP
Access Control:
- Parental Control
- Local Management Control, Host list
- Access Schedule, Rule Management
Firewall Security:
- DoS, SPI Firewall
- IP Address Filter/MAC Address
- Filter/Domain Filter, IP and MAC Address Binding

Protocols: IPv4, IPv6
Management:
- Access Control
- Local Management
- Remote Management
Guest Network: 2.4GH z guest network, 5GHz guest network





OTHERS:

Certification: CE, FCC, RoHS, Wi-Fi
Smartphone equirements:
- Microsoft Windows 10/ 8.1 /8/7/Vista/XP/2000/NT/98SE
- MAC OS, NetWare, UNIX or Linux
Environment:
- Operating Temperature: 0°C~40°C (32°F~104°F)
- Storage Temperature: -40°C~70°C (-40°F~158°F)
- Operating Humidity: 10%~90% non-condensing
- Storage Humidity: 5%~90% non-condensing
