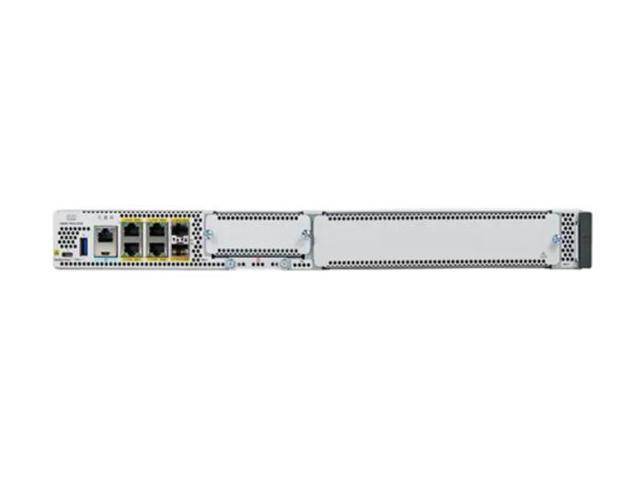

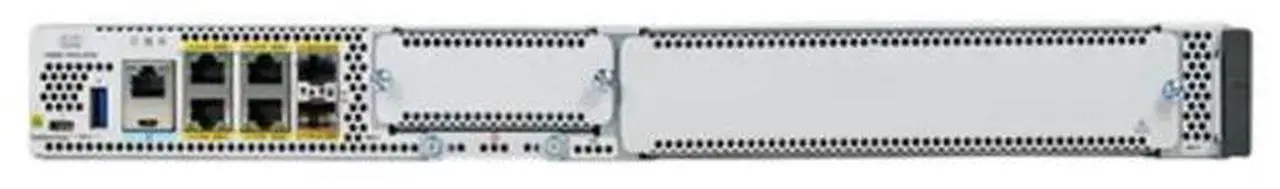

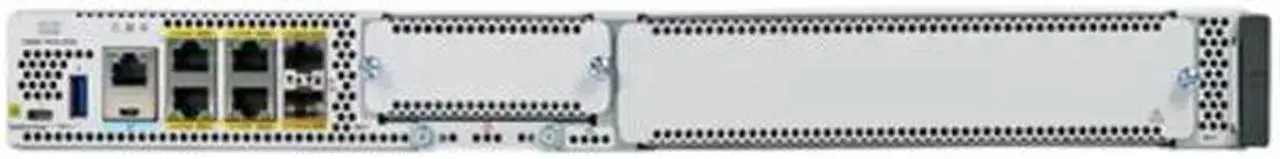

Cisco Catalyst 8300-2N2S-6T router rack-mountable

Be the first to review this product...
  • Brand Cisco,
  • Model C8300-2N2S-6T
  • Product Description: Cisco Catalyst 8300-2N2S-6T - router - rack-mountable
  • Device Type: Router,
  • Enclosure Type: Rack-mountable - 2U,
  • Data Link Protocol:Gigabit Ethernet,
  • Performance:SD-WAN IPsec throughput (1400Bytes, clear text): up to 1.9 Gbps ¦ SD-WAN IPsec throughput (IMIX, clear text): 1.75 Gbps ¦ IPv4 forwarding throughput (1400-byte packet size): 19.7 Gbps ¦ IPsec throughput (1400Bytes, clear text): up to 1.9 Gbps,
  • Capacity: SD-WAN overlay tunnels scale: 6000 ¦ IPsec SVTI tunnels: 4000 ¦ ACL: 4000 ¦ Access Control Entries (ACEs) per system (IPv4): 72000 ¦ IPv4 routes: 1600000 ¦ IPv6 routes: 1500000 ¦ Queues: 16000 ¦ NAT sessions: 1200000 ¦ Firewall sessions: 512000 ¦ Virtual Routing and Forwarding (VRF) entries: 4000,
  • Network / Transport Protocol: RSVP, NTP, IPSec, PPPoE, DHCP, DNS, L2TPv3, RTP, RTCP, IPv4, IPv6,
Overview
Specs
Reviews
  • Brand Cisco,
  • Model C8300-2N2S-6T
  • Product Description: Cisco Catalyst 8300-2N2S-6T - router - rack-mountable
  • Device Type: Router,
  • Enclosure Type: Rack-mountable - 2U,
  • Data Link Protocol:Gigabit Ethernet,
  • Performance:SD-WAN IPsec throughput (1400Bytes, clear text): up to 1.9 Gbps ¦ SD-WAN IPsec throughput (IMIX, clear text): 1.75 Gbps ¦ IPv4 forwarding throughput (1400-byte packet size): 19.7 Gbps ¦ IPsec throughput (1400Bytes, clear text): up to 1.9 Gbps,
  • Capacity: SD-WAN overlay tunnels scale: 6000 ¦ IPsec SVTI tunnels: 4000 ¦ ACL: 4000 ¦ Access Control Entries (ACEs) per system (IPv4): 72000 ¦ IPv4 routes: 1600000 ¦ IPv6 routes: 1500000 ¦ Queues: 16000 ¦ NAT sessions: 1200000 ¦ Firewall sessions: 512000 ¦ Virtual Routing and Forwarding (VRF) entries: 4000,
  • Network / Transport Protocol: RSVP, NTP, IPSec, PPPoE, DHCP, DNS, L2TPv3, RTP, RTCP, IPv4, IPv6,
  • Routing Protocol: OSPF, IS-IS, RIP-1, RIP-2, BGP, EIGRP, HSRP, DVMRP, VRRP, PIM-SM, static IP routing, IGMPv3, GRE, OSPFv3, PIM-SSM, policy-based routing (PBR), MPLS, Bidirectional Forwarding Detection (BFD), RSVP, LISP,
  • Remote Management Protocol:SNMP, SSH, CLI, SCP, NETCONF, NTP, DHCP, RADIUS, OMP,
  • VoIP Protocols: SIP, SRTP,
  • Features:Firewall protection, NAT support, PAT support, Syslog support, CBWFQ, WRED, ACL support, QoS, DHCP server, NTP server, DHCP client, FEC, IPFIX, CAC, FNF, AVC, AAA, DNS client, ERSPAN, EEM, EVC, Cisco IPSLA, NBAR, PPP, HDLC, MLPPP, MLFR, PfR, SD-WAN support, Cisco UADP, AAR, IVR, SAF, SUDI,
  • Compliant Standards: IEEE 802.1Q, IEEE 802.3ah, IEEE 802.1ag,
  • Dimensions (WxDxH): 17.2 in x 18.5 in x 3.5 in,
  • Weight: 39.9 lbs,
  • System Requirements:Cisco IOS XE 17.3.2,
  • Designed For:P/N: C8300-DNA, UCS-E1100D-M6,
  • Device Type: Router,
  • Enclosure Type: Rack-mountable - 2U,
  • Connectivity Technology: Wired,
  • Data Link Protocol: Gigabit Ethernet,
  • Processor: Intel,
  • RAM: 8 GB (installed) / 32 GB (max),
  • Flash Memory: 8 GB,
  • Hard Drive: 16 GB,
  • VoIP Protocols: SIP, SRTP,
  • Expansion / Connectivity
  • Interfaces: WAN / LAN: 6 x 1000Base-T ¦ USB: 1 x
  • Expansion Slots: 2 (total) / 2 (free) x service module (SM) ¦ 2 (total) / 2 (free) x NIM ¦ 1 (total) / 1 (free) x Pluggable Interface Module (PIM)
  • Installed Modules Qty (Max): 0 (installed) / 5 (max),
  • Power Device: Internal power supply,
  • MTBF: 710,300 hours,
  • Software / System Requirements
  • OS Required: Cisco IOS XE 17.3.2,
  • Dimensions & Weight
  • Width: 17.2 in,
  • Depth: 18.5 in,
  • Height: 3.5 in,
  • Weight: 39.9 lbs,
  • Environmental Parameters
  • Min Operating Temperature: 32 °F,
  • Max Operating Temperature: 104 °F,
  • Humidity Range Operating: 5 - 85% (non-condensing),
  • Compatibility Information
  • Designed For: P/N: C8300-DNA, UCS-E1100D-M6,
  • COO: CHINA / MEXICO / MEXICO,
  • TAA compliance: Yes,
