$14,710.99
Ships from United States.
Meet Your Seller

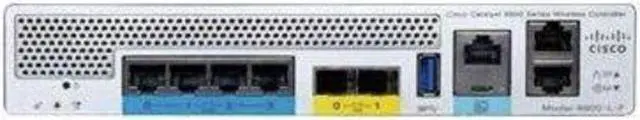

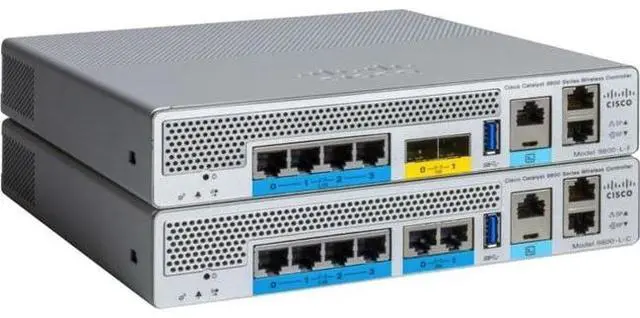

Cisco Catalyst 9800-L Wireless Controller network management device Wi-Fi 6
- Brand Cisco,
- Model C9800-L-F-K9
- Product Description: Cisco Catalyst 9800-L Wireless Controller - network management device - Wi-Fi 6,
- Device Type: Network management device,
- Form Factor: Rack-mountable - 1U,
- Data Link Protocol: Gigabit Ethernet, 10 Gigabit Ethernet, IEEE, 802.11ac Wave 2, IEEE 802.11ac Wave 1,
- Performance: Throughput: 5 Gbps,
- Capacity: Maximum number of access points: 250 ¦ Maximum number of clients: 5000 ¦ Wireless LANs: 4096 ¦ VLANs supported: 4096,
- Power: AC 120/230 V (50/60 Hz),
- Dimensions (WxDxH): 8.5 in x 9.1 in x 1.6 in,
- Weight: 4.01 lbs,
- Manufacturer Warranty: 1-year warranty,
- Device Type: Network management device,
- Height (Rack Units): 1U,
- Width: 8.5 in,
- Depth: 9.1 in,
- Height: 1.6 in,
- Weight: 4.01 lbs,
- Form Factor: Rack-mountable,
- Connectivity Technology: Wireless, wired,
- Data Link Protocol: Gigabit Ethernet, 10 Gigabit Ethernet, IEEE 802.11ac Wave 2, IEEE 802.11ac Wave 1,
- Network / Transport Protocol: TCP/IP, UDP/IP, ICMP/IP, IPSec, ARP, BOOTP, DHCP, Bonjour,
+
+
Overview
Specs
Reviews
- Brand Cisco,
- Model C9800-L-F-K9
- Product Description: Cisco Catalyst 9800-L Wireless Controller - network management device - Wi-Fi 6,
- Device Type: Network management device,
- Form Factor: Rack-mountable - 1U,
- Data Link Protocol: Gigabit Ethernet, 10 Gigabit Ethernet, IEEE, 802.11ac Wave 2, IEEE 802.11ac Wave 1,
- Performance: Throughput: 5 Gbps,
- Capacity: Maximum number of access points: 250 ¦ Maximum number of clients: 5000 ¦ Wireless LANs: 4096 ¦ VLANs supported: 4096,
- Power: AC 120/230 V (50/60 Hz),
- Dimensions (WxDxH): 8.5 in x 9.1 in x 1.6 in,
- Weight: 4.01 lbs,
- Manufacturer Warranty: 1-year warranty,
- Device Type: Network management device,
- Height (Rack Units): 1U,
- Width: 8.5 in,
- Depth: 9.1 in,
- Height: 1.6 in,
- Weight: 4.01 lbs,
- Form Factor: Rack-mountable,
- Connectivity Technology: Wireless, wired,
- Data Link Protocol: Gigabit Ethernet, 10 Gigabit Ethernet, IEEE 802.11ac Wave 2, IEEE 802.11ac Wave 1,
- Network / Transport Protocol: TCP/IP, UDP/IP, ICMP/IP, IPSec, ARP, BOOTP, DHCP, Bonjour,
- Remote Management Protocol:SNMP 1, RMON, Telnet, SNMP 3, SNMP 2c, HTTP, HTTPS, TFTP, SSH,
- Performance:Throughput: 5 Gbps,
- Capacity:Maximum number of access points: 250 ¦ Maximum number of clients: 5000 ¦ Wireless LANs: 4096 ¦ VLANs supported: 4096
- Status Indicators: Power, system, link/activity,
- Features: VLAN support, Syslog support, IPv6 support, SNTP support, Wi-Fi Multimedia (WMM) support, RADIUS support, CAPWAP support, Internet Control Message Protocol (ICMP), User Datagram Protocol (UDP), Datagram Transport Layer Security (DTLS),
- Encryption Algorithm: Triple DES, AES, IKE, SSL, TLS, WPA, WPA2, PKI, ESP, CRL, CCM, CCMP,
- Authentication Method:RADIUS, Extensible Authentication Protocol (EAP),
- Compliant Standards: IEEE 802.3, IEEE 802.3u, IEEE 802.1Q, IEEE 802.11b, IEEE 802.11a, IEEE 802.11d, IEEE 802.11g, IEEE 802.11h, IEEE 802.11e, IEEE 802.11n, IEEE 802.11k, IEEE 802.1AX, IEEE 802.11w, IEEE 802.11r, IEEE 802.11u, IEEE 802.11ac Wave 2, IEEE 802.11ac Wave 1, IEEE 802.11ax,
- Interfaces: 1 x console - RJ-45 ¦ 1 x management - RJ-45 ¦ 1 x USB - Type A ¦ 1 x mini-USB - Type B ¦ 1 x redundancy ¦ 4 x 10Gb Ethernet - RJ-45 ¦ 4 x 1/2.5GBase-T - SFP (mini-GBIC),
- Compliant Standards: VCCI, EN 61000-3-2, EN55022, ICES-003, EN 61000-3-3, CISPR 22, EN50082-1, EN 61000-6-1, AS/NZS 60950-1, FCC CFR47 Part 15, AS/NZS CISPR 22, CNS 13438, EN 300 386, KN32, UL/CSA60950-1, IEC/EN 61000-4-3, IEC/EN 61000-4-4, IEC/EN 61000-4-5, IEC/EN 61000-4-6, IEC/EN 61000-4-8, IEC/EN 61000-4-11, IEC/EN 61000-4-2, EN 55032, IEC/EN 60950-1, CAN/CSA-C22.2 No. 60950-1, IEEE 802.3, IEEE 802.1x,
- Power Device: External power adapter,
- Installed Qty: 1,
- Voltage Required: AC 120/230 V (50/60 Hz),
- Power Consumption Operational: 84.5 Watt,
- Power Provided: 110 Watt,
- OS Provided: Cisco IOS XE,
- Service & Support: Limited warranty - 1 year,
- Environmental Parameters
- Min Operating Temperature: 32 °F,
- Max Operating Temperature: 104 °F,
- Humidity Range Operating: 10 - 95% (non-condensing),
- Special Feature
- COO: BRAZIL / CHINA / MEXICO / UNITED STATES / MEXICO / UNITED STATES,
- TAA compliance: Yes,
