Features

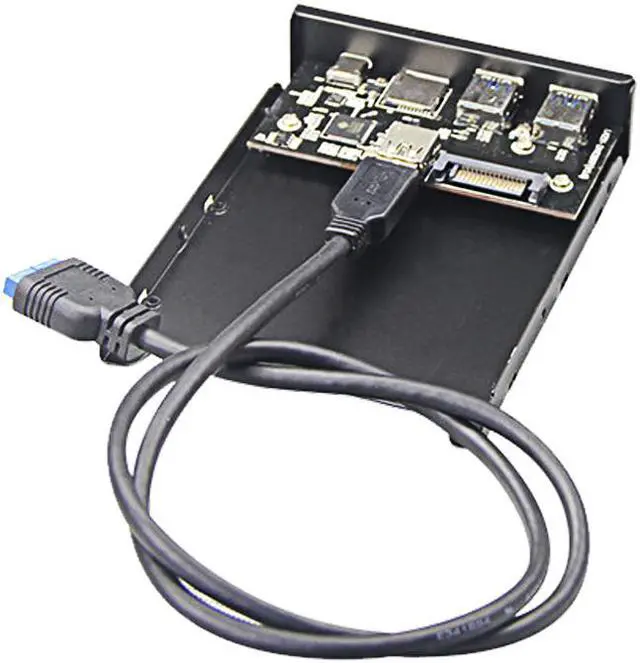

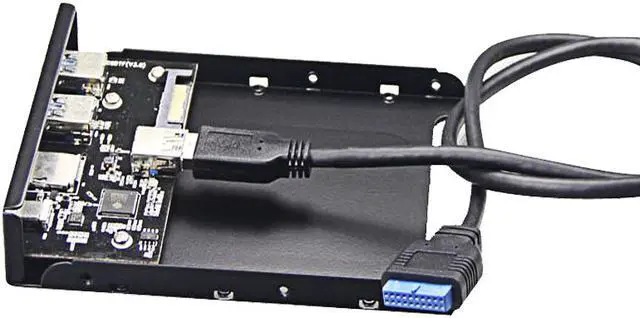

- 3.5 inch USB Hub Front Panel & Internal Card Reader - Convert your 3.5 inch floppy disk drive space into 2 USB 3.0 ports, 1 SD slot, 1 Micro SD slot and 1 type-c port. Increase the scalability of desktop computers to meet various needs.
- Super Speed Data Transfer - The USB 3 front panel uses the latest USB 3.0 high quality chip with a maximum transmission speed of 5Gbps. It is backward compatible with USB 2.0/1.1/1.0 devices. Support fast charging and high speed transmission simultaneously.
- USB 3.0 Card Reader - Fast data/ files access and transfer rate up to super-speed (5GPS) through SD/Micro SD/TF slots
- USB 20pin Motherboard Header - 1 x USB motherboard 20pin headers on motherboard is needed for the hub connection
- Easy Installation - Installation is quick and easy, and the unit is plug and play.
- Great compatibility and easy to use - Compatible with Windows 10/8/8. 1/7/ Vista/ XP and Mac OS X, Linux and chrome OS.
- Metal Case - Stable performance and durable
- Front Panel USB Hub for PC
- Internal USB 3.0 Card Reader
- 2x USB 3.0 Type-A Female Ports
- 1x USB-C 3.1 GEN1 5Gbps Female Port
- 1x USB 3.0 SD Card Slot
- 1x USB 3.0 Micro SD/TF Card Slot
- USB motherboard 20pin headers on motherboard is needed
- 3.5 Inch Front Panel with Metal Case
- 1.64FT USB 20pin to USB-A Male Cable
- Screws for Mounting
Specification
| Type | 3.5" USB 3.0 Front Panel & Internal USB Card Reader |
|---|---|
| Input | 1x USB 20pin Motherboard Header |
| Output-A | 2x USB 3.0 Type-A Female |
| Output-B | 1x USB 3.1(Gen 1) Type-C Female |
| Output-C | SD Card Slot |
| Output-D | Micro SD/FT Card Slot |
| Powered | SATA Power Interface |
| USB Ports Data Transfer Speed | 5Gbps |
| Watt. | 5V 900mA each port |
| USB Card Reader Slots | 5Gbps |
| OS Requirement | Compatible with Windows 10/8/8. 1/7/ Vista/ XP and Mac OS X, Linux and chrome OS. |
| Installation | 3.5" Open Bay Space |
| USB Cable | 1.64 Feet USB 20pin to USB-A Cable |
| Package Contents | USB Front Panel Bay,USB Cable & Screws |
