5.25 inch PC Computer Front panel All-in-1 Multifunction USB 2.0 card reader with 3 ports USB3.0,Type-C, eSATA ,Support MD,SD/MMC,XD,TF,M2,MS,64G CF card (STW-3125)

Limited time offer, ends 12/31 By EN Labs Marketplace

#1 Best Seller
Best Seller
in Card Readers
  • 5.25" internal All-in-one USB 2.0 card reader,
  • Supports CF/MD,SD/MMC,XD,TF,M2,MS cards
  • Maximum capacity of the memory read up to 32GB
  • w/ 3 x USB 3.0 & Type-C Hub
  • 1 x eSATA port
  • USB3.0 20pin and USB 2.0 10pin header on motherboard is needed
+
+
Overview
Specs
Reviews (17)
image for this item
  • Multi-function front panel gives you direct access to your memory cards, USB 3.0, USB C, and eSATA ports on your PC. Easily transfer your videos, music, photos, data with this blazing fast gadget.
  • It provides easy access of your data through the front panel, with it is convenient design it is a must have solution with all your PC components.
  • It supports Super Speed USB 3.0 up to 5 Gbps with three front accessible USB Type-A ports, one front accessible USB 3.1 Type-C port
  • The USB 3.0 hub is also backwards compatible with USB 2.0 /USB 1.0 /USB 1.1.
  • One front accessible eSATA port support eSATA device data transfer speed up to 6Gbps, backward SATA 3Gbps and 1.5Gbps
  • Equipped a 6slots all in 1 high speed  USB 2.0 card reader.
  • The high speed card reader is compatible with most popular formats of flash media on the market, SD/MMC/SDHC, CF/CF II/HS CF/MD, MS/MS Duo/MS Pro, XD, TF/T-Flash, M2.

Features

  • Multi-function 5.25 front panel,Fit any 5.25 inch computer case front bay
  • USB Ports are Super Speed USB 3.0, supports up to 5 Gbps of data transfer speed, Backward compatible with USB 2.0 /USB 1.0 /USB 1.1
  • Three front accessible USB 3.0 Type-A ports
  • One front accessible USB 3.1 Type-C port
  • One front accessible eSATA port
  • All in 1 high speed card reader
  • Support SD/MMC/SDHC, CF/CF II/HS CF/MD, MS/MS Duo/MS Pro, XD, TF/T-Flash, M2
  • Maximum capacity of the memory read up to 64GB
image for this item

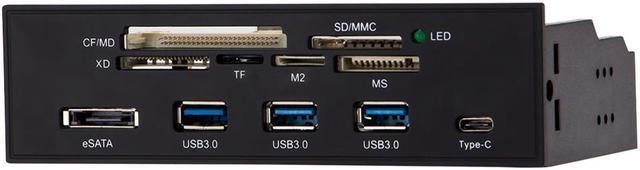

Multi-function 5.25 front panel
  • Special design front panel for multi-function purpose
  • Offers 3 x USB 3.0, 1 x USB C,1 x eSATA, interface
  • Up to 5 Gbps data transfer rate for all USB type-A and type-C ports
  • USB 3.0 ports are backwards compatible with USB 2.0 & 1.1
  • eSATA port support SATAIII data transfer speed up to 6Gbp,backward to SATA 3Gbps and SATA 1.5 Gbps
  • 6 card reader slots for complete accessibility
  • High quality material ensure durability, LED indicator make you keep an eye on work status. Can be easily and neatly installed into a 5.25in drive bay on your desktop PC to give you convenient access
image for this item

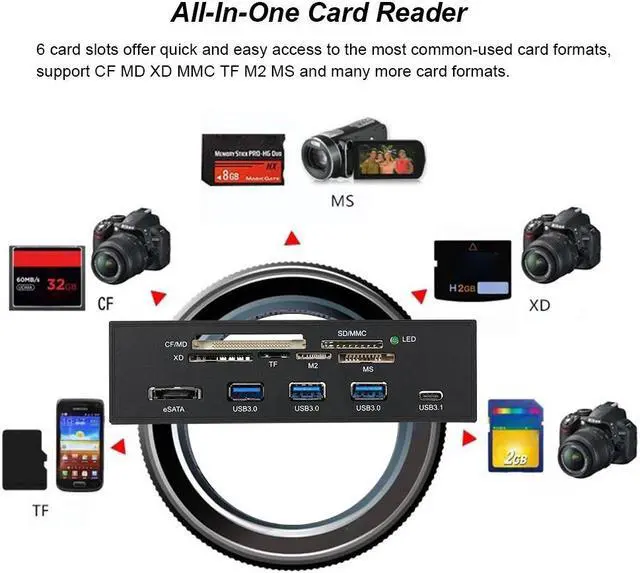

USB 2.0 Internal Card Reader
  • 6 card slots offer quick and easy access to the most common-used card formats, support SD/MMC/SDHC, CF/CF II/HS/ CF/MD, MS/MS Duo/MS Pro, XD, TF/T-Flash, M2 card
  • This high speed card reader writer, let you transfer files between your flash media and computer easily and quickly
  • Data transfer speed up to 480Mbps
  • Maximum capacity of the memory read up to 64GB
image for this item
Motherboard Connection
  • USB 3.0 20pin motherboard header is needed for 3x USB 3.0 Type-A and USB-C ports
  • SATA 7pin data header is needed for eSATA port(Just for data transfer, an extra eSATA power is necessary for eSATA device).
  • USB 2.0 10pin motherboard header is needed for high speed 6 slot internal card reader
image for this item
image for this item

Specifications

  • Product Name: 5.25 inch USB 3.0 Hub & Internal Card Reader Multi-function front panel
  • Output-A: 3x USB 3.0 Type-A
  • Output -B: 1 USB 3.1 (GEN 1 5Gbps) Type-C
  • Output-C: 1x eSATA
  • USB ports Transfer Rate: Up to USB 3.0 supper speed 5 Gbps, backward compatible with USB 2.0 USB 1.1 and USB 1.0
  • eSATA port  Transfer Rate: Up to 6 Gbps
  • 6 Slots Card Reader
  • Supported Systems: Windows 10/8/7/Vista/XP, Mac OSX 10.2 +
  • Material: ABS/Plastic
  • Color: Black
  • Dimensions: 5 7/8" W x 1 11/16" H x 3" D
  • Weight: 0.45 lbs
A multi-function front panel device with USB 3.0 hub, card reader, USB 3.1 port, and eSATA port. It supports Super Speed USB 3.0 up to 5 Gbps bandwidth with three front accessible USB Type-A ports, one front accessible USB 3.1 Type-C port, one front accessible eSATA port, and all in 1 high speed card reader. The high speed card reader is compatible with most popular formats of flash media on the market, SD/MMC/SDHC, CF/CF II/HS CF/MD, MS/MS Duo/MS Pro, XD, TF/T-Flash, M2. The USB 3.0 hub is also backwards compatible with USB 2.0 /USB 1.0 /USB 1.1.

It provides easy access of your data through the front panel, with it’s convenient design it is a must have solution with all your PC components.
Features
• Super Speed USB 3.0 supports up to 5 Gbps of bandwidth
• Three front accessible USB 3.0 Type-A ports
• One front accessible USB 3.1 Type-C port
• One front accessible eSATA port
• All in 1 high speed card reader
• Support SD/MMC/SDHC, CF/CF II/HS CF/MD, MS/MS Duo/MS Pro, XD, TF/T-Flash, M2
• Maximum capacity of the memory read up to 32GB
• Backward compatible with USB 2.0 /USB 1.0 /USB 1.1
• Fit any 5.25 ” computer case front bay
Specifications
Product Name: USB 3.0 Hub w/ Card Reader Includes 1 USB 3.1 Port
Material: ABS/Plastic
Interface: USB 3.0 / USB 3.1
Dimensions: 5 7/8" W x 1 11/16" H x 3" D
Output Interface: USB 3.0
Input Interface: 1 x eSATA Port
3 x USB 3.0 Type-A Ports
1 x USB 3.1 Type-C Port
6 Slots Card Reader
Transfer Rate: Up to 5 Gbps
Weight: 0.45 lbs
Color: Black
Supported Systems: Windows 10/8/7/Vista/XP, Mac OSX 10.2 +
