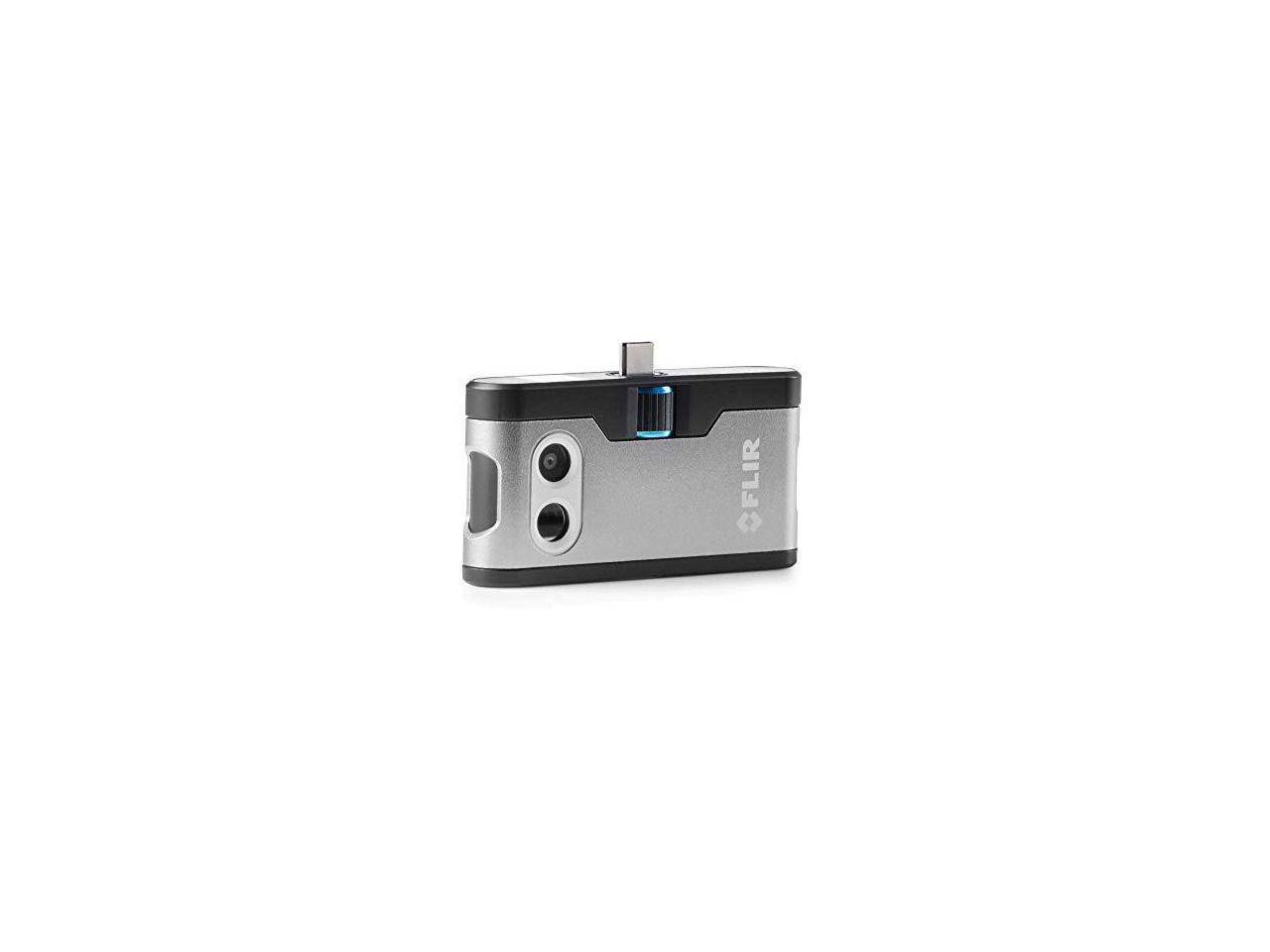

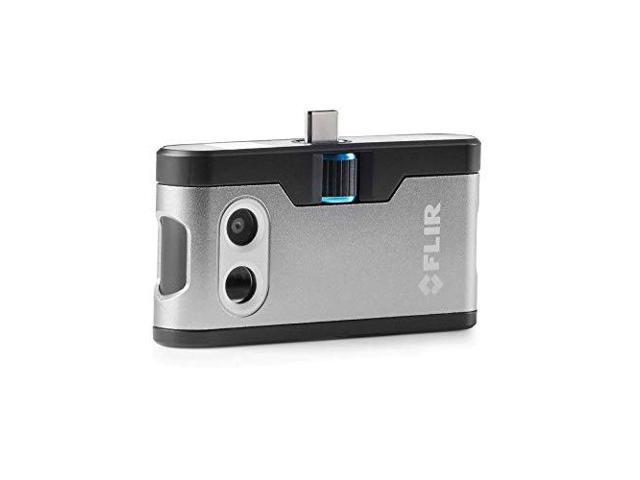

FLIR ONE Gen 3 - Android (USB-C)

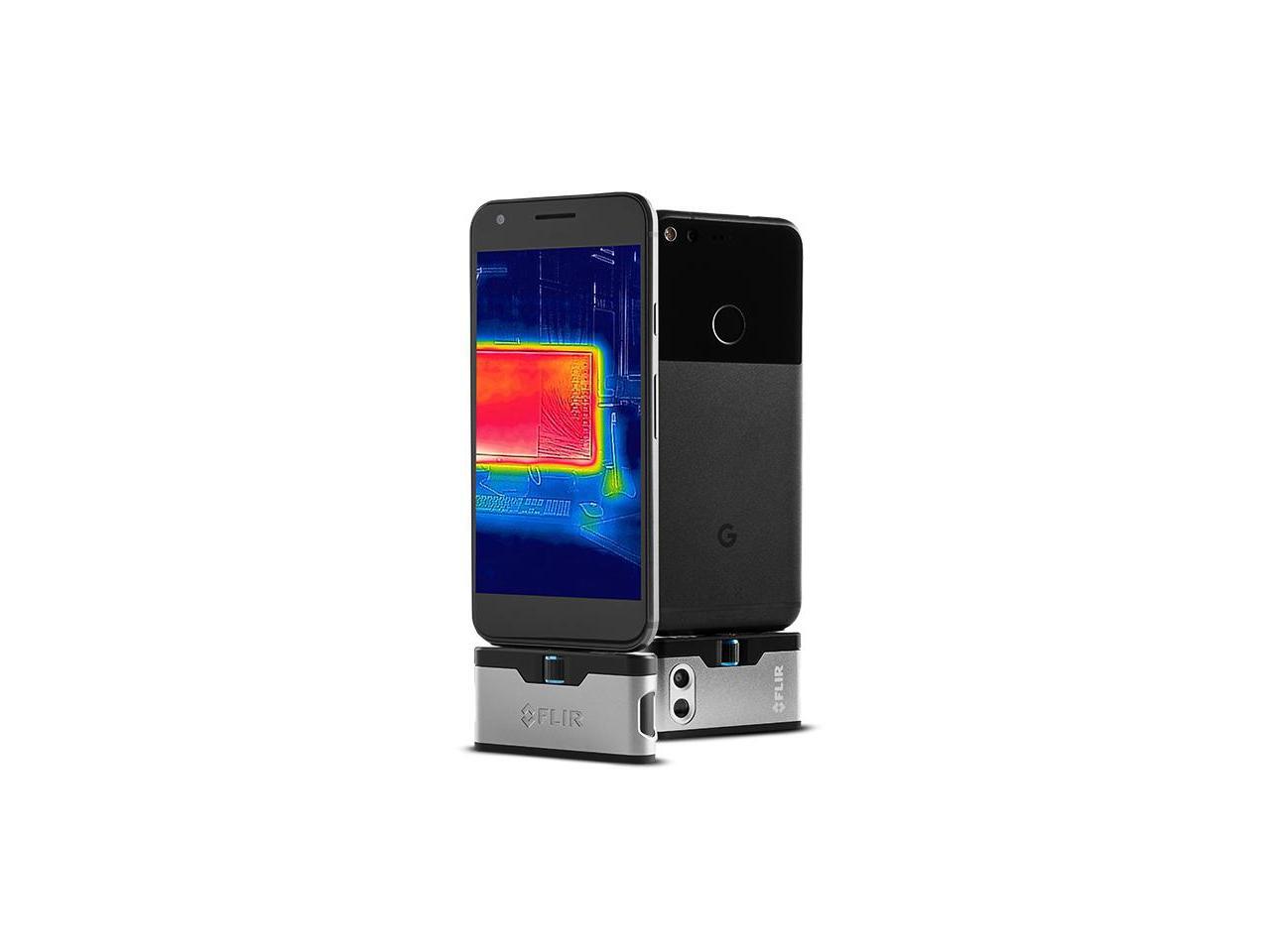

The FLIR ONE Gen 3 is an affordable smartphone attachment thermal imaging camera designed to help professionals find problems faster and get more work done in less time. With MSX® (Multi-Spectral Dynamic Imaging) technology, which enhances thermal images by embossing details from the visual camera onto the thermal image, you’ll easily recognize where problems are located. FLIR ONE Gen 3 cameras also provide a OneFit™ connector that adjusts and extends up to 4 mm to fit many popular protective cases. Whether inspecting electrical panels, looking for HVAC problems, or finding water damage, FLIR ONE Gen 3 thermal imaging cameras enable users of all experience levels to work efficiently while on-the-go.

SPECIFICATIONS OVERVIEW Dimensions (H x W x D) 34 x 67 x 14mm ( 1.3 x 2.6 x 0.6 in) Non-Operating Temperature -20 °C – 60 °C (-4°F – 140°F) Phone Android Weight 34.5 g COMPLIANCE & CERTIFICATIONS Certifications MFi (iOS version), RoHS, CE/FCC, CEC-BC, EN61233 CONNECTIONS & COMMUNICATIONS Charging Female USB-C (5V/1A) Video Male Lightning (iOS), Male USB-C (Android) ENVIRONMENTAL Drop test Drop from 1.5 m
Emissivity Settings Matte: 95%, Semi-Matte: 80%, Semi-Glossy: 60%, Glossy: 30% Reflected background temperature is 22°C Operating Temperature 0 °C – 35 °C (32°F – 95°F), battery charging 0 °C – 30 °C (32°F – 86°F) IMAGING & OPTICAL Focus Fixed 15cm – Infinity Frame Rate 8.7H z HFOV/VFOV 50° ± 1° / 38° ± 1° Palette Gray (white hot), Hottest, Coldest, Iron, Contrast, Arctic, Lava and Color Wheel Shutter Automatic/Manual Thermal Resolution 80x60 Thermal Sensor Pixel size 17µm, 8 – 14µm spectral range Video and Still Image Display/Capture Saved as 1440x1080 Visual Resolution 1440x1080 MEASUREMENT & ANALYSIS Accuracy ±3°C or ±5%, typical Percent ofthe difference between ambient and scene temperature. Applicable 60s after start-up when the unit is within 15 °C – 35 °C and the scene is within 5 °C – 120 °C. Object Temperature Range -20°C — 120°C (–4°F — 248°F) Spot Meter Hottest, Coldest and 3 spot measurement OTHER Adjustable MSX distance 0.3 m – Infinity Battery charge monitor 0 – 100% Capture modes Video, Still image POWER Battery charge time 40min Battery Life Approximately 1h RADIOMETRY Thermal Sensitivity [MRDT] 150mK STORAGE MEDIA File Formats Still images – radiometric jpeg Video – MPEG-4 (file format MOV (iOS), MP4 (Android) )
