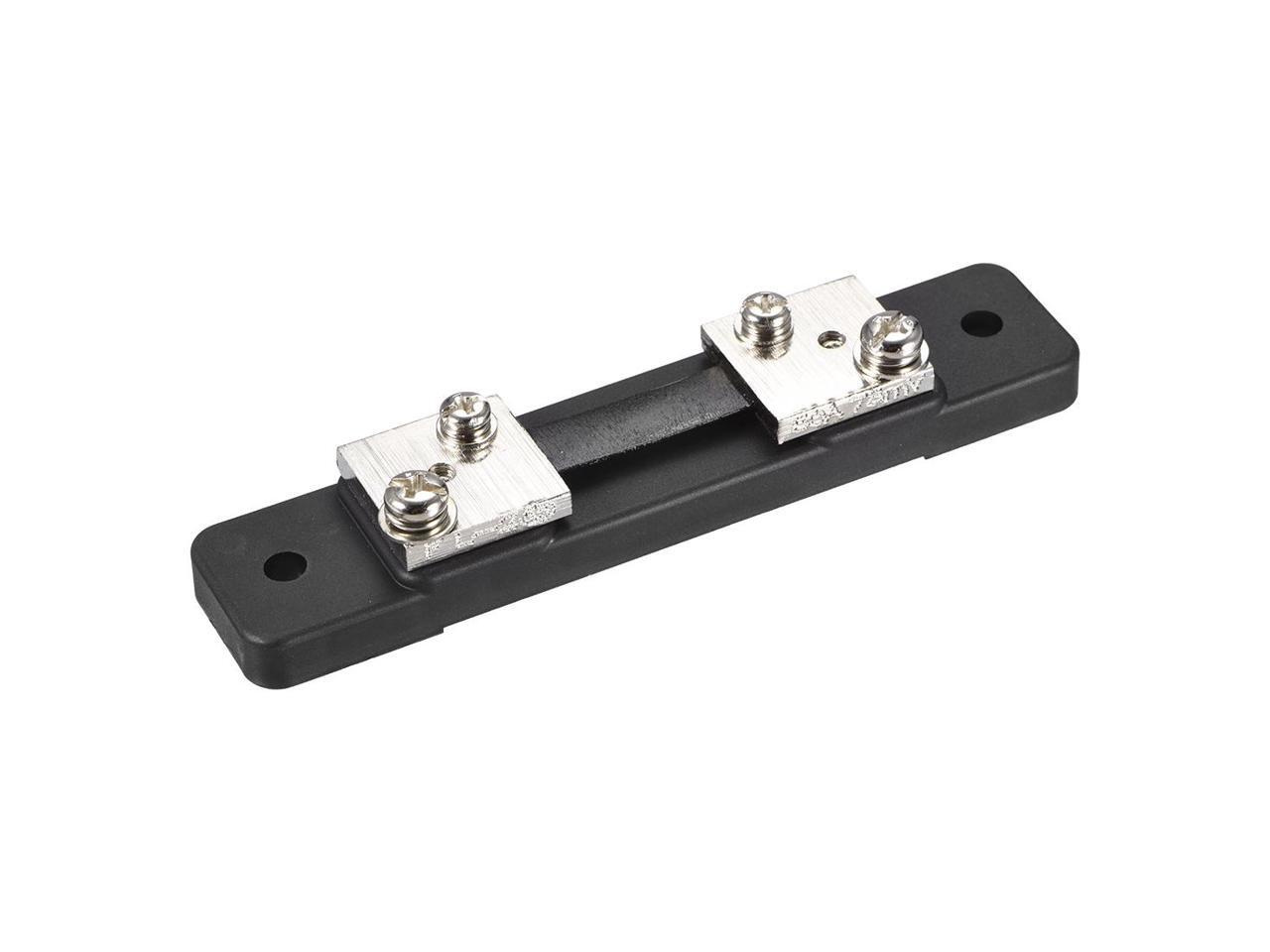

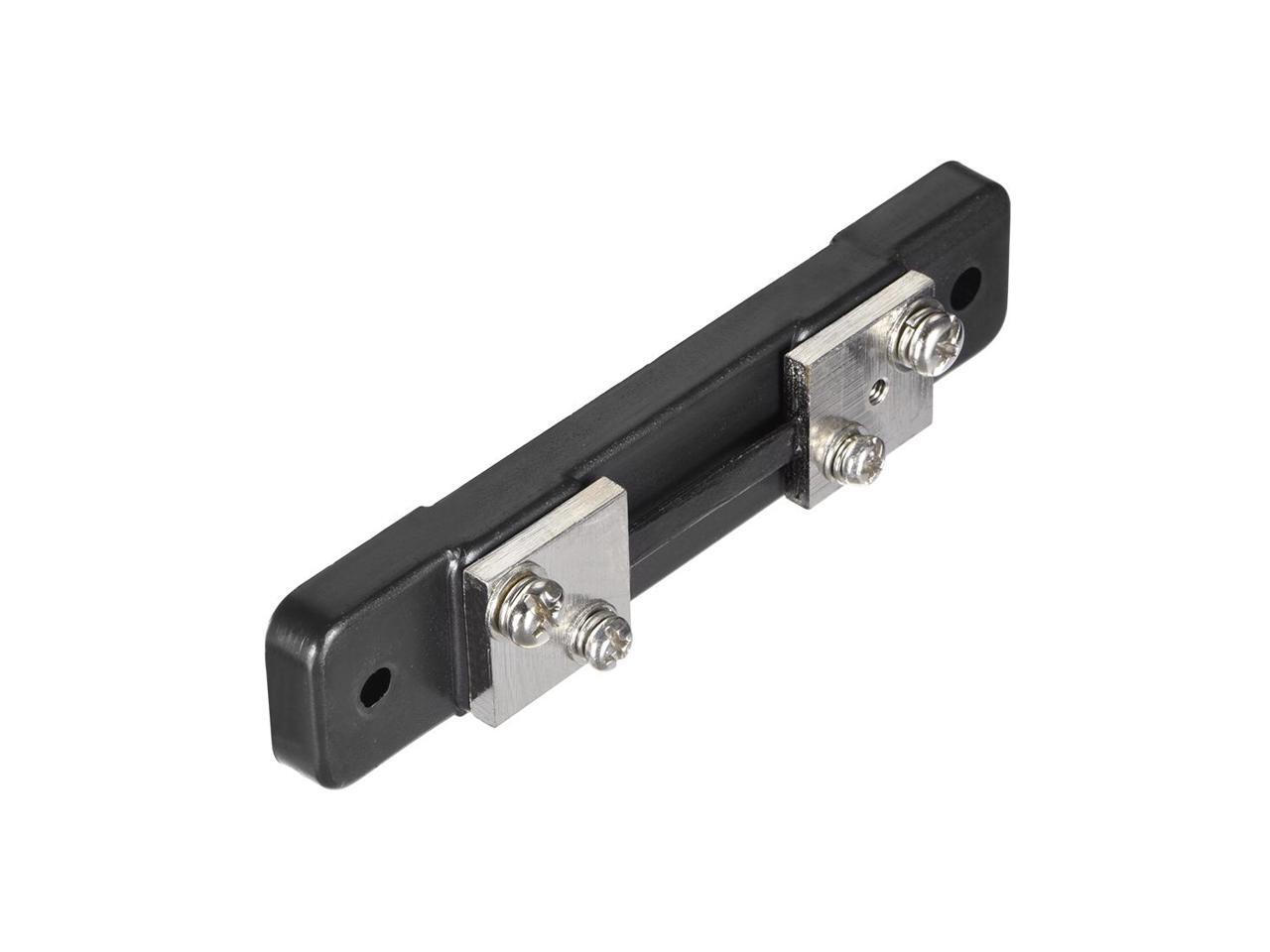

Shunt Resistor 150A 75mV for DC Current Ammeter Analog Panel Meter External FL-2 Shunt Divider
In stock.
Ships from United States.
Fees for brokerage and duty included in price.
- 75mV Voltage Drop and 150A Rated(Maximum) Current, 75mV satisfies most of the DC ammeter.Made of Copper with Anti-Rust plated, ensures the performance of stability and durability.
+
+
Overview
Specs
Reviews
Rated Current: 150A
Voltage Drop: 75mV
Materials: Copper
Overload Rated Current: 120%(2 Hours)
Accuracy: 0.5%
Working Temp: -40C to 60C(-40F to 140F)
Type: FL-2 External
Length: 113mm
Width: 17mm
Height: 21mm
Weight: 145g
Package Content
1 pcs x 150A/75mV Shunt
