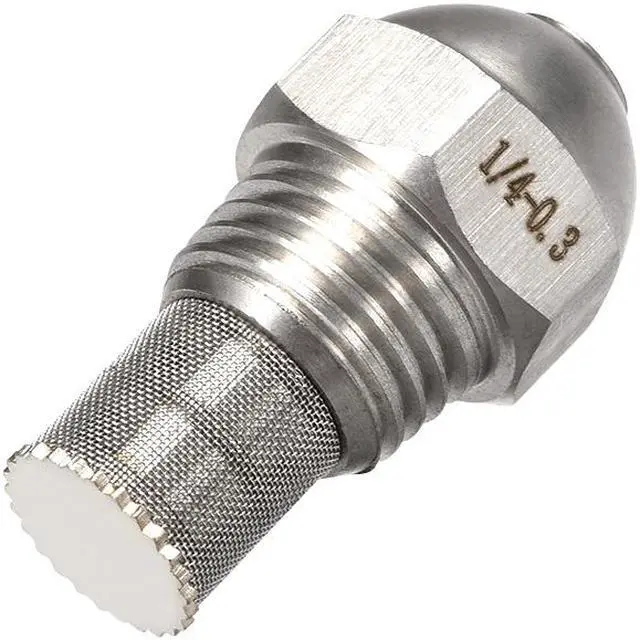

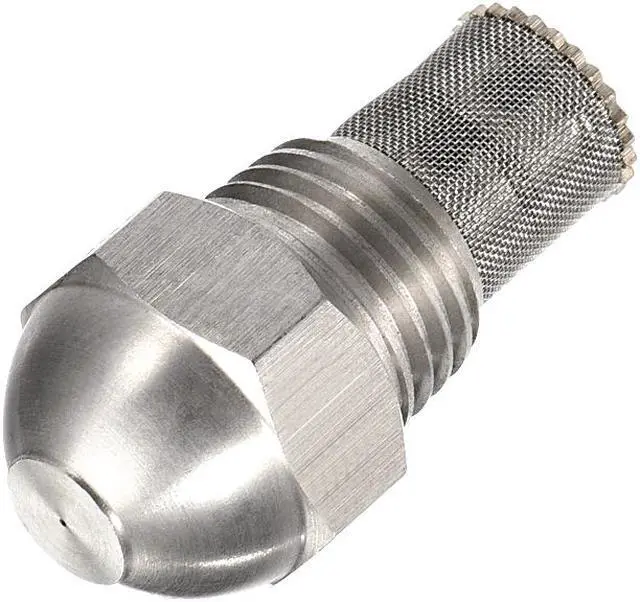

Mist Nozzle - 1/4BSPT 0.3mm Orifice Dia 304 Stainless Steel Fine Atomizing Spray Tip

• Made of stainless steel 304, strong and corrosion resistant.
• Coverage area: no wind or breeze under the condition of a nozzle 1-3 meters height cover about 1-2 square feet.
• Filter: nozzle inlet is equipped with high quality stainless steel filter.
• Pattern: solid cone / conical.
• When the liquid in the 2-10bar pressureKEY_TAB is medium, the pressure reaches 10-20bar, the atomization particle is about 50um, 20bar can reach the suspended fog.The greater the pressure, the better atomization effect, the maximum pressure 50-70bar.
• The normal spray angle is 60-80 degrees.
• Widely used in humidification cooling, dust cooling, fog test, artificial fog, atomized fuel, evaporation, cleaning and disinfection, and landscape fog and so on.

KEY_TAB

Specification:

Material: 304 Stainless Steel

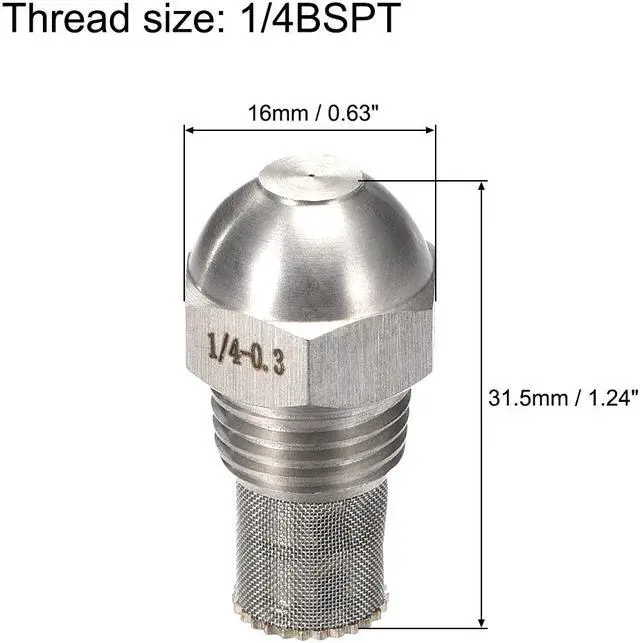

Thread size: 1/4BSPT

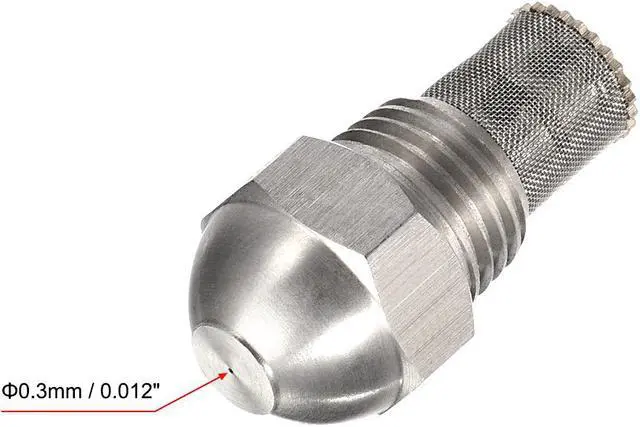

Orifice Diameter: 0.3mm / 0.012"

Total Size: 16mm x 31.5mm / 0.63" x 1.24" (Hex.Width*H)

KEY_TAB

Package Content:

1 x Misting Nozzle
