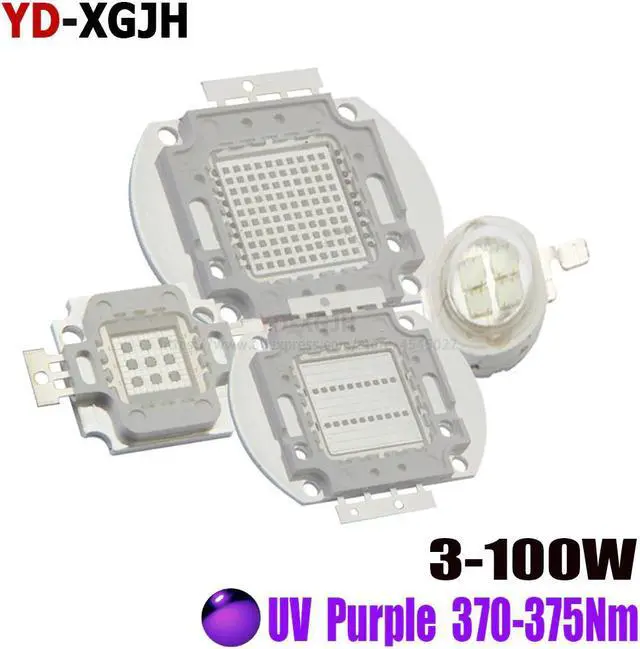

Power LED Chip UV Purple 370Nm 375Nm 3W 5W 10W 20W 30W 50W 100W COB Ultraviolet Lights 3W 5W 10W 20W 30W 50W 100W Watt

UV Purple 370Nm 375Nm Power LED Chip 3W 5W 10W 20W 30W 50W 100W  COB Ultraviolet Lights 3W 5W 10W 20W 30W 50W 100W Watt

Production details:

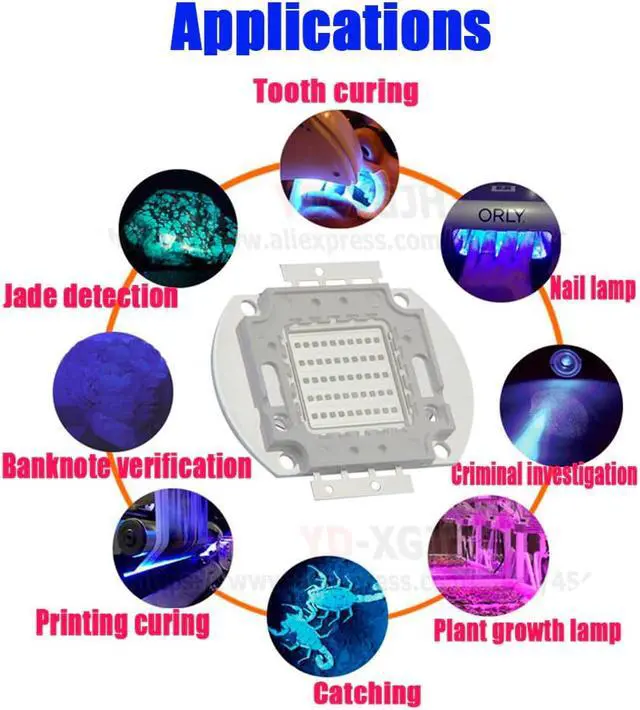

The main purpose

Portable money detector flashlight and nail light

Medical lights, beauty lights, mosquito traps, trap lights

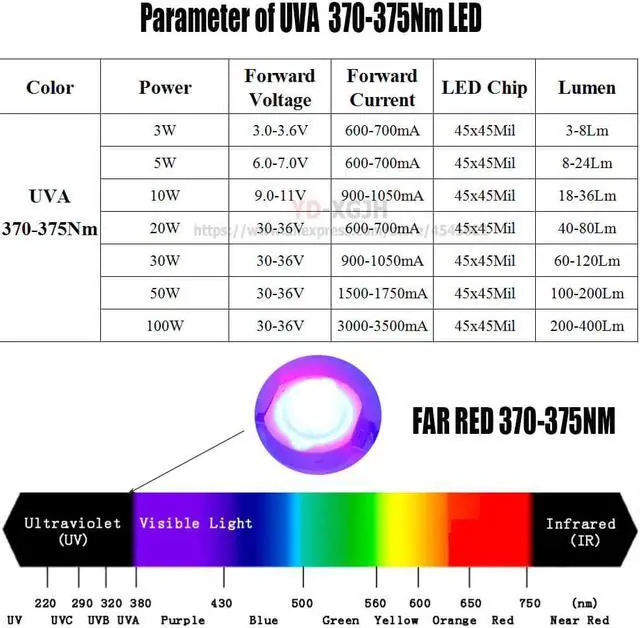

Rated Power: 3W 5W 10W 20W 30W 50W 100W

Power supply current: 600mA-3000mA

Forward Voltage: 3.0V-3.6V 9-11V 30-36V

Beam Angle: 140 degree

Sealing Material: Two golden wires and copper bracket sillica gel

anti-static

Static electricity or voltage can damage the lamp bead. When using the lamp bead, it is recommended to wear anti-static ring or anti-static gloves.

When soldering iron, the machine is grounded; all drive equipment should be grounded to ensure that the lamp voltage is within the normal range.

Heat dissipation

When the lamp is energized, the er the current, the greater the heat generated by the lamp bead; the excessively temperature will damage the lamp bead and the current needs to be controlled properly.

Need to add heat sink and heat sink, the ambient temperature is controlled at 40~60°C

Take the lamp beads

When taking the lamp beads, it is recommended to use tools such as tweezers.

Try to avoid touching the surface of the lamp with your hands to prevent contamination of the lamp beads and affect the optical effect.

Please take the lamp beads on the side
