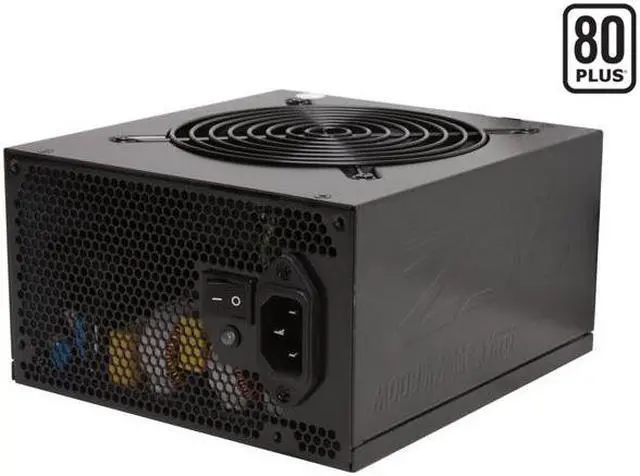

OCZ EliteXStream OCZ800EXS 800 W ATX12V v2.2 / EPS12V SLI Certified CrossFire Ready 80 PLUS Certified Active PFC Power Supply
- ATX12V v2.2 / EPS12V
- 80 PLUS Certified
- 90 - 264 V 50/60 Hz
- +3.3V@28A, +5V@30A, +12V@62A, [email protected], [email protected]
Specs
Reviews (46)
Learn more about the OCZ Storage Solutions OCZ800EXS
| Brand | OCZ |
|---|---|
| Series | EliteXStream |
| Model | OCZ800EXS |
| Type | ATX12V v2.2 / EPS12V |
|---|---|
| Maximum Power | 800 W |

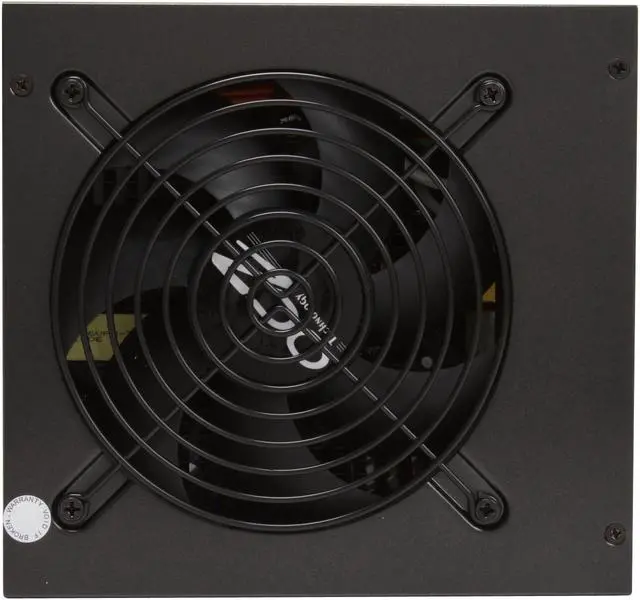

| Fans | 1 x 120mm Fan |
| PFC | Active |

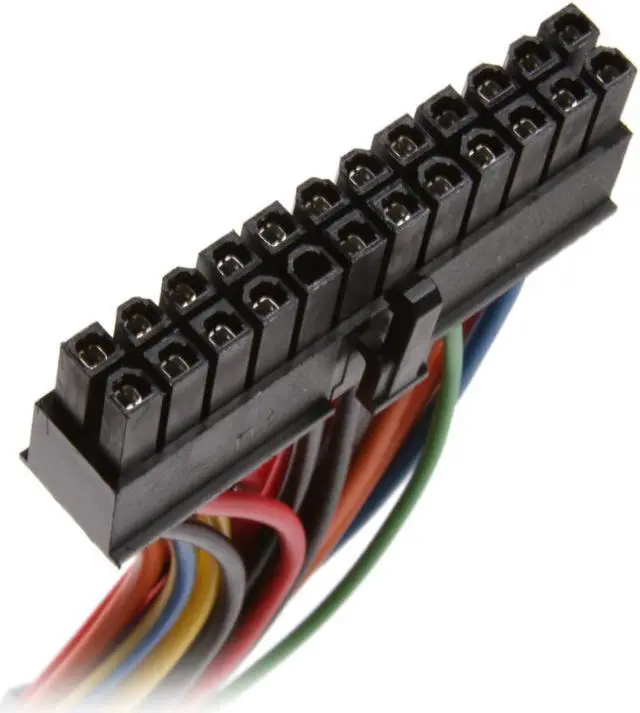

| Main Connector | 20+4Pin |
| +12V Rails | Single |
| PCI-Express Connector | 4 x 6+2-Pin |
| SATA Power Connector | 8 |
| SLI | SLI Certified |
| CrossFire | CrossFire Ready |
| Efficiency | 82% |
| Energy-Efficient | 80 PLUS Certified |
| Over Voltage Protection | Yes |
| Input Voltage | 90 - 264 V |
| Input Frequency Range | 50/60 Hz |
| Input Current | 10A - 5A |

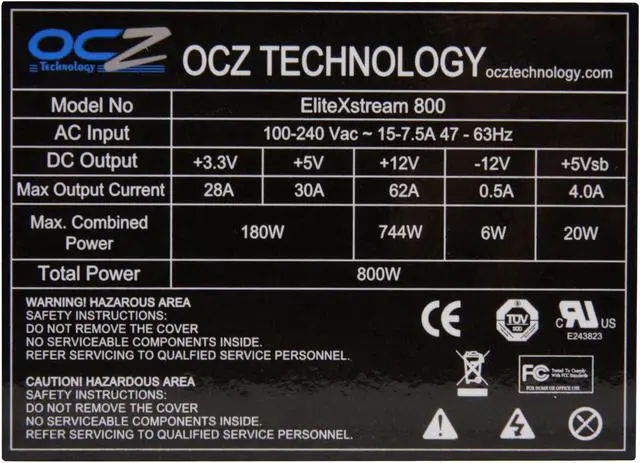

| Output | +3.3V@28A, +5V@30A, +12V@62A, [email protected], [email protected] |
| MTBF | >100,000 Hours |

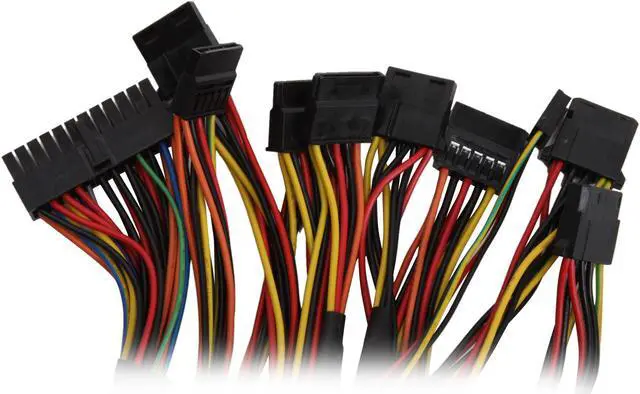

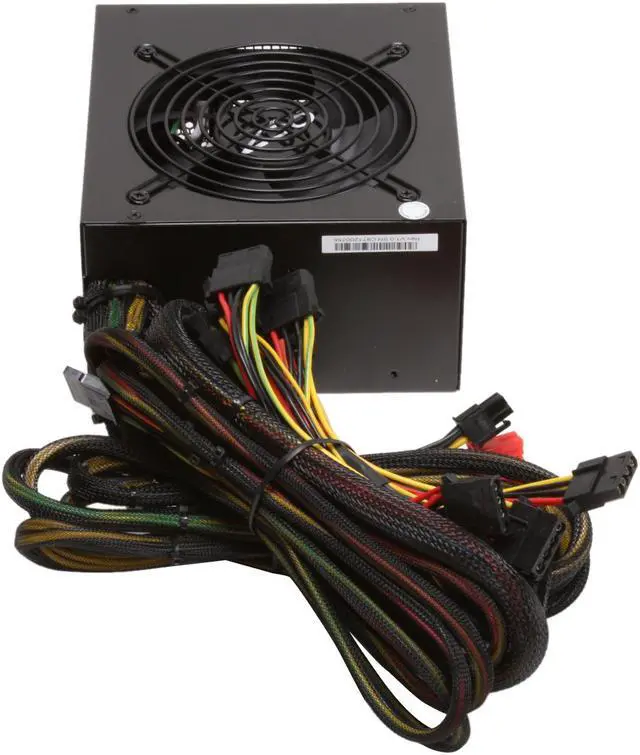

| Connectors | 1 x Main connector (24 Pin) 1 x 8 Pin CPU 8 x Peripheral 8 x SATA 1 x Floppy 4 x PCI-E |
| Features | ATX12V v2.2 High efficiency 82% 80+Certified Overvoltage/Overcurrent/Short-Circuit protection Active PFC (.99) |
|---|
| Dimensions | 5.91" x 6.30" x 3.89" |
|---|
| First Listed on Newegg | April 30, 2008 |
|---|
