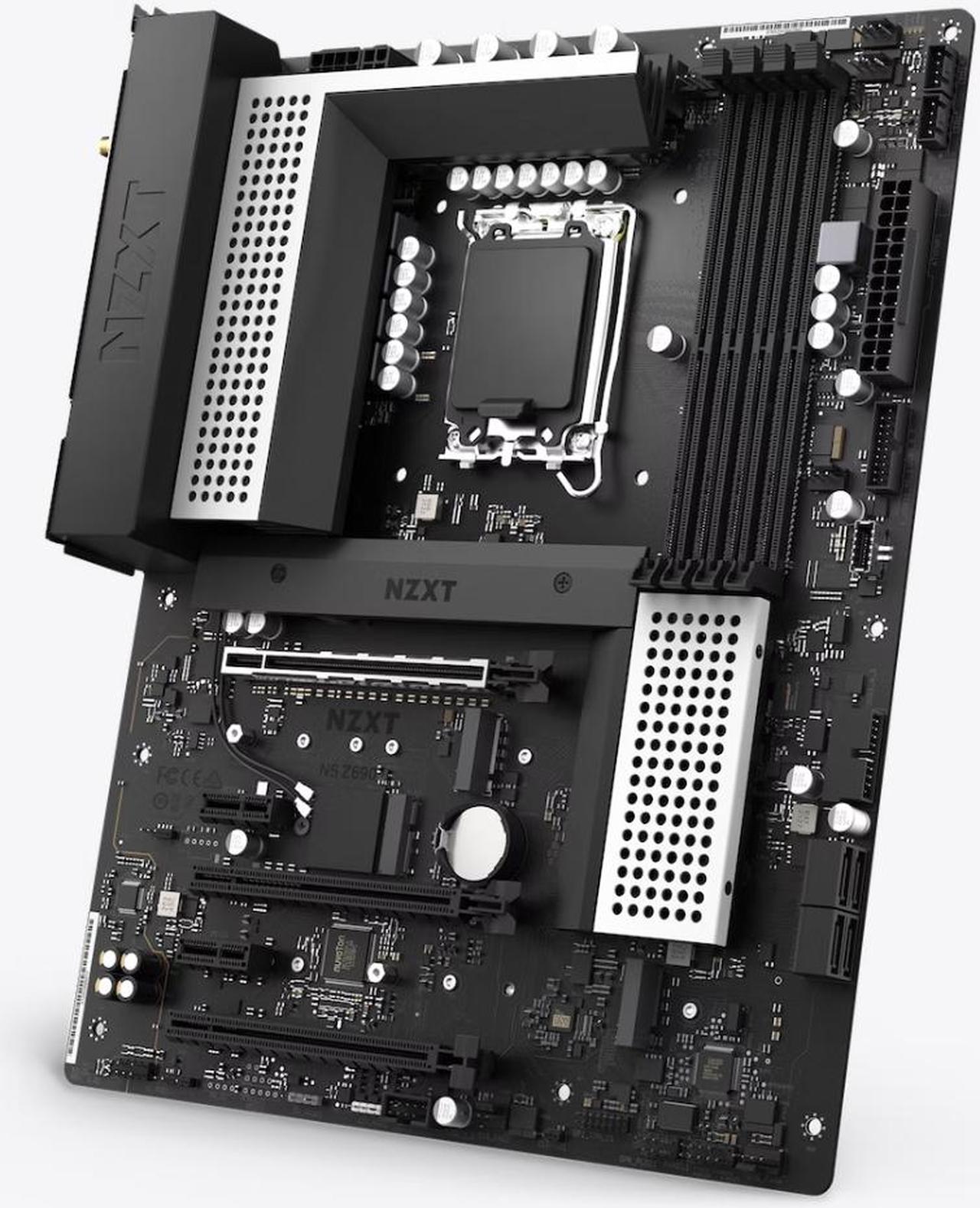

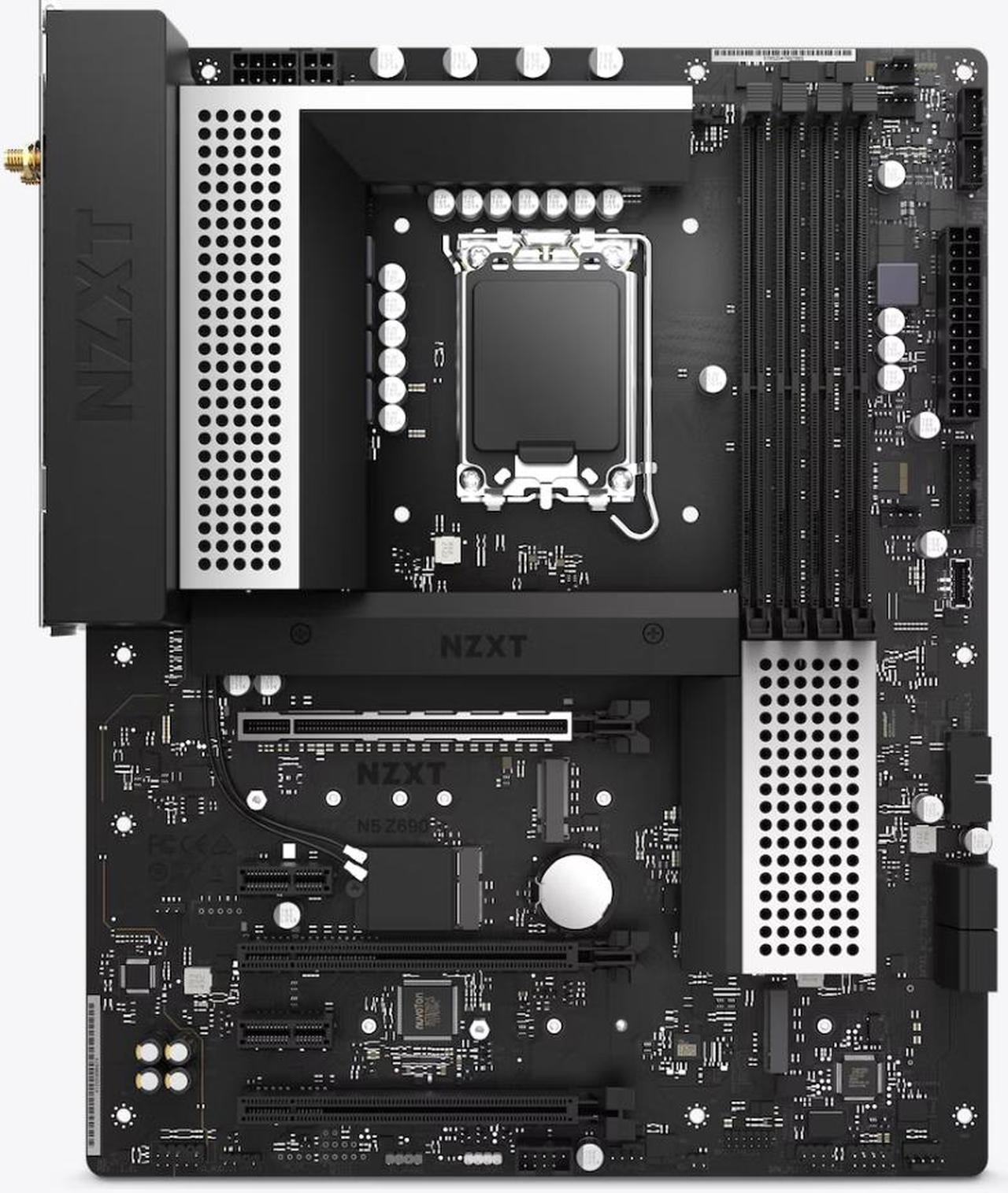

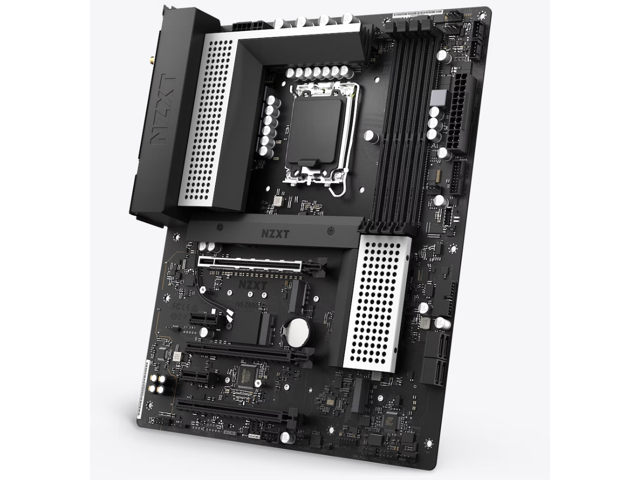

    NZXT N5 Z690 LGA 1700 (Intel 12th Gen) ATX Intel Motherboard with Wi-Fi N5-Z69XT-W1

    Be the first to review this product...
    • The N5 is a modern platform for a powerful build, driven by the latest Z690 chipset.
    • Wi-Fi 6E connectivity with updated specs for Z690 chipset
    • Digital RGB lighting control through NZXT CAM
    • Digital fan control with profiles within NZXT CAM for six independent fan channels
    • Integrated rear I/O shield and efficient layout ensures optimal setup with upgradeability
    +
    +
    Specs
    Reviews

    Learn more about the NZXT N5-Z69XT-W1

    Model
    Brand NZXT
    Series N5 Z690
    Model N5-Z69XT-W1
    Part Number N5-Z69XT-W1
    Supported CPU
    CPU Socket Type LGA 1700
    CPU Type Intel Core 12th Gen (LGA 1700)
    Supported CPU Technologies Intel® Hybrid Technology Supported
    Turbo Boost Max 3.0 Technology Supported
    Chipsets
    Chipset Intel Z690
    Onboard Video
    Onboard Video Chipset Intel Iris Xe Graphics
    Memory
    Number of Memory Slots 4x288pin (DDR4)
    Memory Standard DDR4 only (3200 / 2933 / 2800 / 2666 / 2400 / 2133 MHz)
    Maximum Memory Supported 128GB
    Channel Supported Dual Channel
    Expansion Slots
    PCI Express 5.0 x16 3 x PCIe x16
    Single - PCIe_1: Gen 5 x16 mode
    Dual - PCIe_1: Gen 5 x16; PCIe_3: Gen 4 x4
    Triple - PCIe_1: Gen 5 x16; PCIe_3: Gen 4 x4; PCIe_5: Gen 3 x1
    PCI Express x1 2 x PCIe 3.0 x1
    Storage Devices
    SATA 6Gb/s 4 x SATA 6Gb/s
    M.2 4 x M.2
    M.2_1 Type 2242/2260/2280 (PCIe 4.0 x4 mode):1
    M.2_2 Type 2242/2260/2280 (PCIe 4.0 x4 mode):1
    M.2_3 Type 2242/2260/2280/22110 (PCIe 4.0 x4 & SATA mode):1
    M.2_4 Type 2242/2260/2280 (PCIe 3.0 x 4 & SATA mode):1
    Intel Optane Ready Yes
    SATA RAID 0/1/5/10
    Onboard Audio
    Audio Chipset Realtek ALC897
    Audio Channels 8 Channels
    Onboard LAN
    Second LAN Chipset Realtek RTL8125BG 2.5G
    Max LAN Speed 2.5Gbps
    Wireless LAN Wi-Fi 6E
    Bluetooth V5.2
    Rear Panel Ports

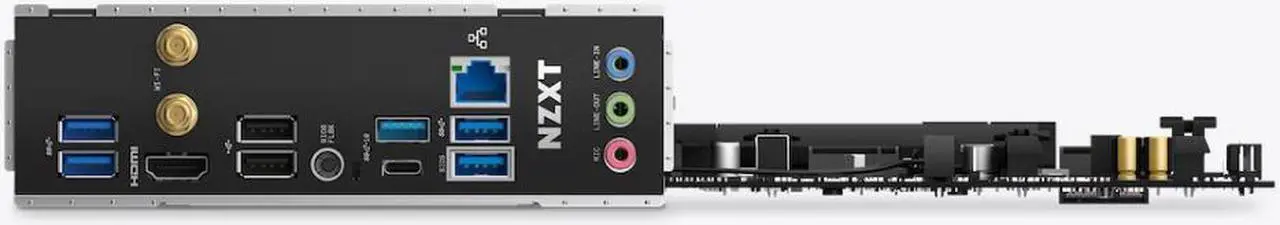

    Back I/O Ports 1 x HDMI / 1 x LAN (RJ45) / 1 x USB 3.2 Gen 2 Type-A / 1 x USB 3.2 Gen 2 Type-C / 2 x Antenna Bracket / 2 x Audio Jacks / 2 x USB 2.0/1.1 / 4 x USB 3.1 Gen 1 Type-A
    Physical Spec
    Form Factor ATX
    Power Pin 24 Pin
    Additional Information
    Date First Available June 28, 2023
