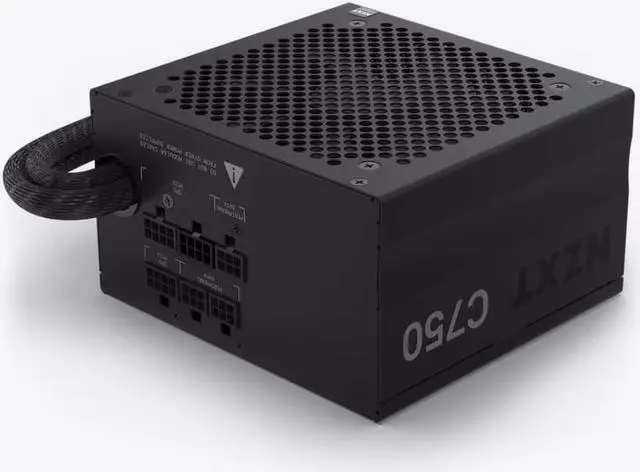

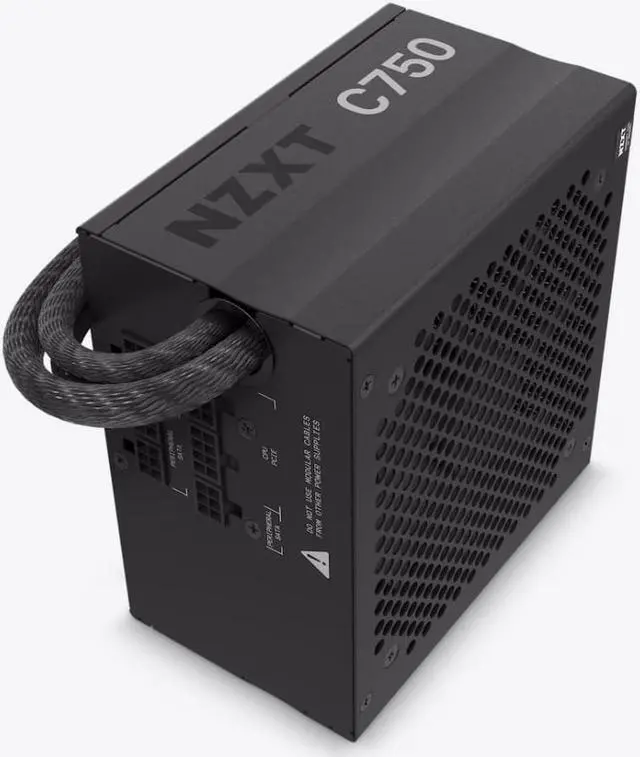

NZXT C750 Bronze - PA-7B1BB-US - 750 Watt PSU - 80 Plus Bronze Certified - DC-DC Technology - Semi Modular Design - Sleeved Cables - ATX Gaming Power Supply
- 80+ BRONZE CERTIFIED: This series gives you the safe and reliable power you need while generating less heat to keep your system quiet and efficient
- SILENT OPERATION: The 120mm FDB silent fan ensures the power supply can silently operate at high load. Capacitors, transformers, and coils have undergone treatment to reduce electromagnetically induced acoustic noise

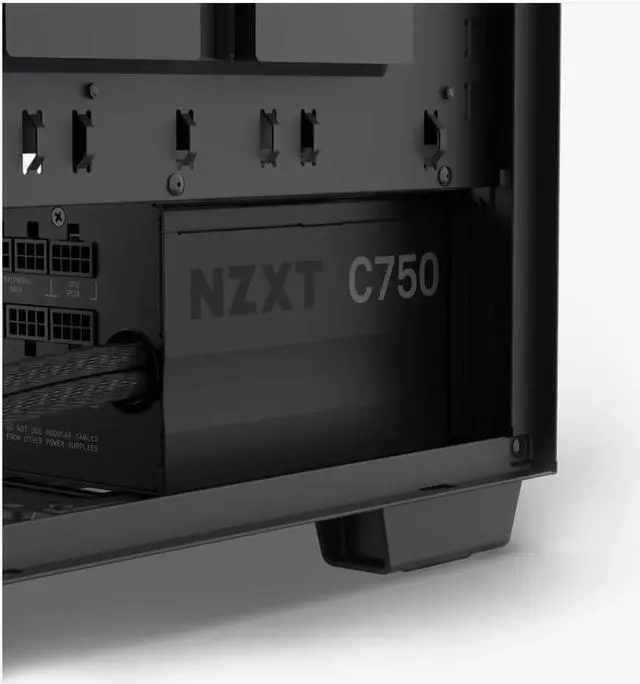

- COMPATIBLE AND EFFICIENT: The C Series Bronze fits any case supports ATX PSU, supporting most of the latest NVIDIA 30 series and AMD 6000 series GPUs
- BUILT FOR BUILDERS: The semi-modular design ensures easier installation and less clutter. The stylish matte black sleeved main cables resist heat damage and fraying, delivering better durability and longevity
- MAXIMUM EFFICIENCY: At 50% Load, power conversion efficiency reaches 2% higher than 80 plus Bronze Standard
+
+
Overview
Specs
Reviews
KEY SPECS:
Dimensions: W 150mm x L 140mm x H 86mm
Material (s): Steel, PCB and plastic
Compliance Standard: ATX12V v 2.4 / EPS12V v 2.92
AC Input Rating: 10A/115V; 5A/230V 47Hz ~ 63Hz
DC OUTPUT RATING:
Voltage: + 3.3V / +5V / +5VSB /+12V / -12V
Max Load: 20A / 20A / 2.5A / 62.5A / 0.3A
Voltage Regulation: ±5% / ±5% / ±5% / ±5% / ±10%
Ripple & Noise: < 50 mV p-p / < 50 mV p-p / < 50 mV p-p / < 120 mV p-p / < 120 mV p-p
Output Power (watt): 120 / 120 / 12.5 / 750 / 3.6
Total: 750

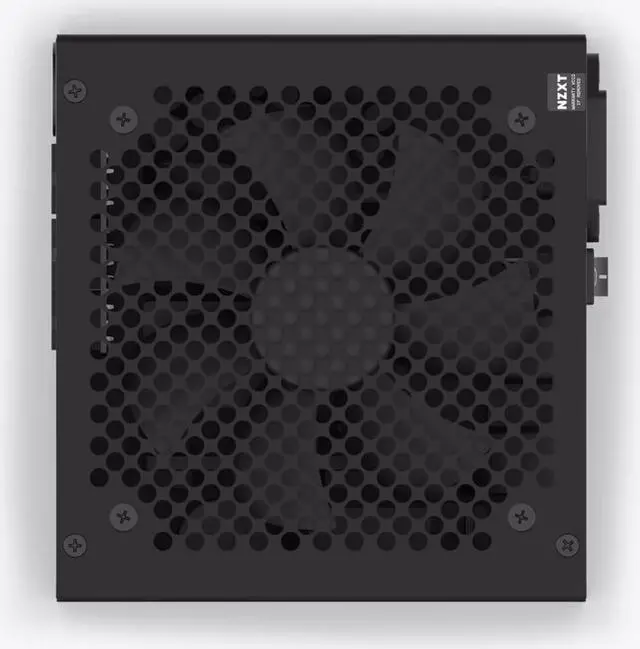

FAN SPECS:
Dimensions: 120 x 120 x 25 (mm)
Speed: 2400 ±10% RPM
Airflow: 72.90 CFM
Noise: <44 dBA
Bearing: FDB (Fluid Dynamic Bearing)
ENERGY EFFICIENCY:
Rating: 80 Plus Bronze
10% loading: 82%
20% loading: 83%
50% loading: 87%
100% loading: 83%
OPERATION:
PF Correction: Active@ 0.96
MTBF: 100, 000 hours
Operation Temperature: 0 to 40°C

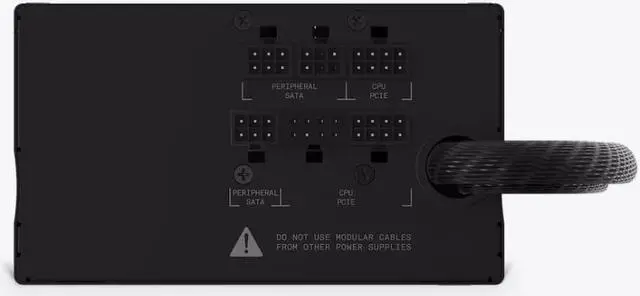

OUTPUT CONNECTOR (S):
24-pin ATX Power: 1
4+4-pin CPU power: 2
6+2-in PCIe power: 6
SATA Power: 6
Dimensions: W 150mm x L 140mm x H 86mm
Material (s): Steel, PCB and plastic
Compliance Standard: ATX12V v 2.4 / EPS12V v 2.92
AC Input Rating: 10A/115V; 5A/230V 47Hz ~ 63Hz
DC OUTPUT RATING:
Voltage: + 3.3V / +5V / +5VSB /+12V / -12V
Max Load: 20A / 20A / 2.5A / 62.5A / 0.3A
Voltage Regulation: ±5% / ±5% / ±5% / ±5% / ±10%
Ripple & Noise: < 50 mV p-p / < 50 mV p-p / < 50 mV p-p / < 120 mV p-p / < 120 mV p-p
Output Power (watt): 120 / 120 / 12.5 / 750 / 3.6
Total: 750
FAN SPECS:
Dimensions: 120 x 120 x 25 (mm)
Speed: 2400 ±10% RPM
Airflow: 72.90 CFM
Noise: <44 dBA
Bearing: FDB (Fluid Dynamic Bearing)
ENERGY EFFICIENCY:
Rating: 80 Plus Bronze
10% loading: 82%
20% loading: 83%
50% loading: 87%
100% loading: 83%
OPERATION:
PF Correction: Active@ 0.96
MTBF: 100, 000 hours
Operation Temperature: 0 to 40°C
OUTPUT CONNECTOR (S):
24-pin ATX Power: 1
4+4-pin CPU power: 2
6+2-in PCIe power: 6
SATA Power: 6
