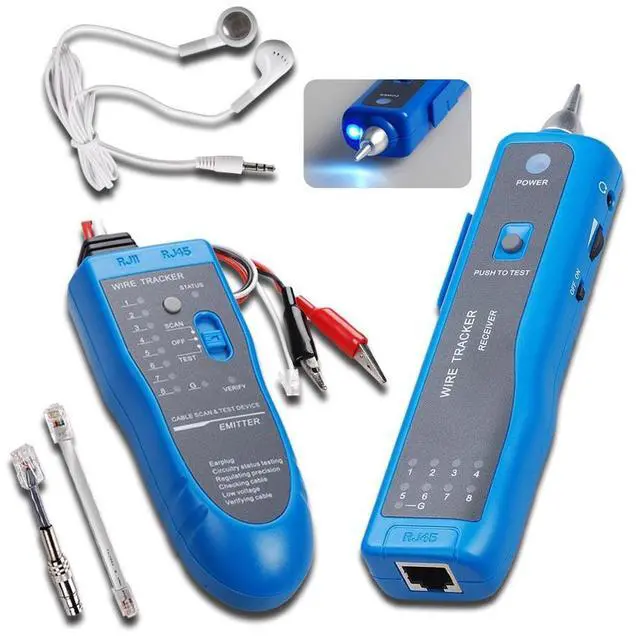

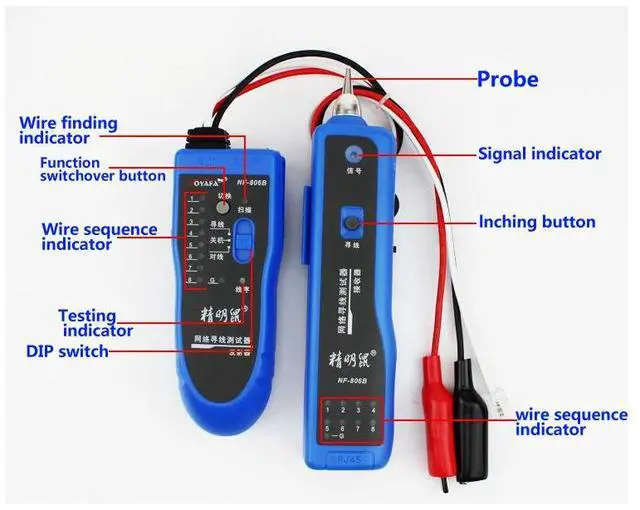

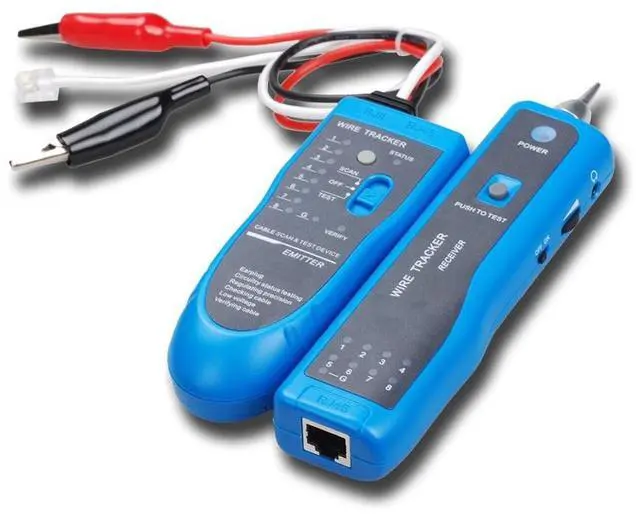

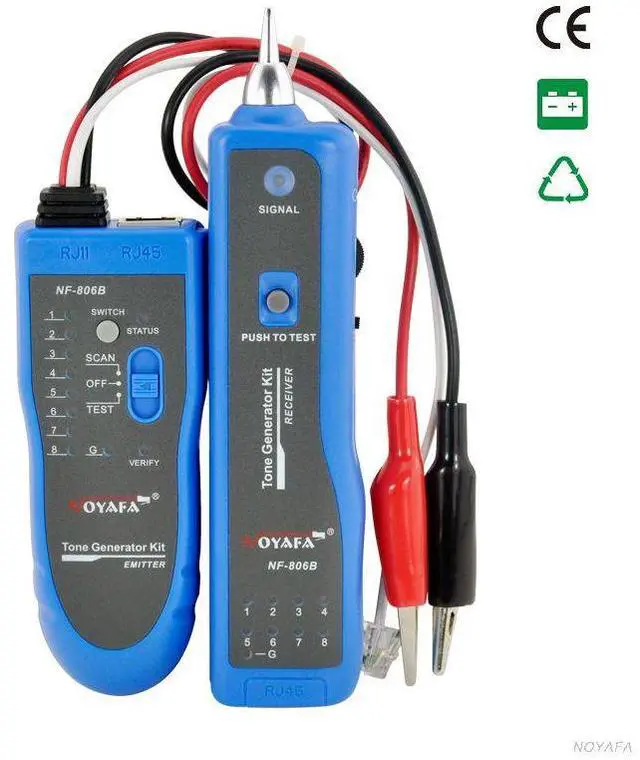

NOYAFA NF-806B Network Tester Tool Network wire Cable Tester Line Tracker Telephone RJ11 RJ45 ,Wire Finder Tracker Tester Network LAN TV RJ11 RJ45 BNC Telephone Electric Cable
Limited time offer, ends 01/29 By ElectroWorks JV
- Noyafa NF-806B Network Wire Tracker handy support Trace telephone wire/LAN cable
+
+
Overview
Specs
Reviews
Product description
Features
-Rapidly identify the target wire among plenty of wires
-Telephone wire, network cable and other electric wires scanning & finding
-Locating target wire in wall without drilling
-Network wire collation function:
-According to 16 wire sequences, you can judge the characteristics of short-circuit, breaking circuit, open circuit and crossing
-Auto scan mode rapidly test corresponding double-twisted cables (1,2,3,4,5,6,7,8 and G) to judge wrong connection, short/open circuit
-Network wire sequence collation supports direct wire collation of operating switch
-Continuity testing
-Open / short circuit testing
-DC level testing
-Cable assignment test
-Open, short and cross of LAN cable
-2-wire (RJ11)/4-wire (RJ45) telephone cable
-Cable status testing (2-wire):
-Line DC detecting, anode and cathode determination
-Ringing signal detecting
-Open, short, and cross test
-High sensitivity & strong anti-jamming ability

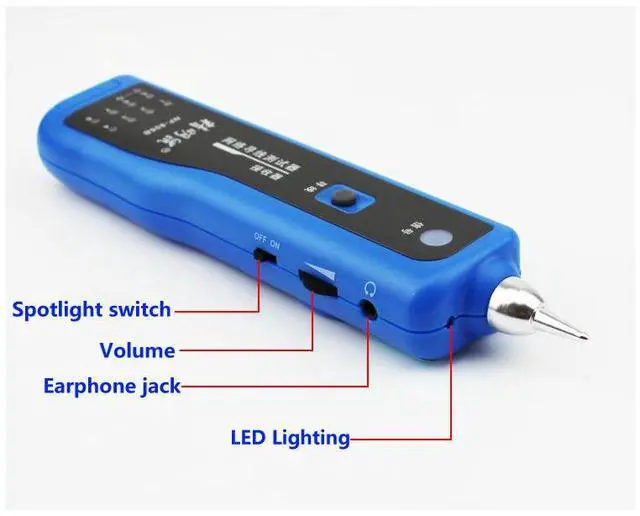

-Bright white LED spotlight for dark environments
Specifications
-Max working current:
-Emitter: 10 mA
-Receiver: 30 mA
-Signal output electric status: 8Vp-p
-Signal transmission format: Multi-frequency impulse
-Induction distance less than 20mm
-Distance of signal transmission: ?3 km
-Power supply: DC, 2 x 9V battery (Not Included)
-Battery life: 50 hours continuously
-Storage Temperature: -20 ~ 50 C
-Operating Temperature: -10 ~ 40 C

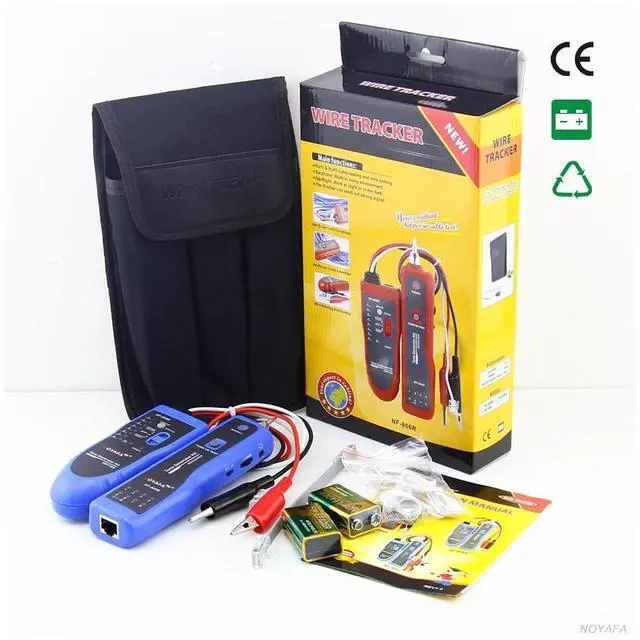

Package Included
-1 x Emitter
-1 x Receiver
-1 x RJ45 Network Cable
-1 x BNC and RJ45 Converting Cable
-1 x Earphone
-1 x Toolkit Bag
-1 x Instruction Manual
-Standard Factory Package
Features
-Rapidly identify the target wire among plenty of wires
-Telephone wire, network cable and other electric wires scanning & finding
-Locating target wire in wall without drilling
-Network wire collation function:
-According to 16 wire sequences, you can judge the characteristics of short-circuit, breaking circuit, open circuit and crossing
-Auto scan mode rapidly test corresponding double-twisted cables (1,2,3,4,5,6,7,8 and G) to judge wrong connection, short/open circuit
-Network wire sequence collation supports direct wire collation of operating switch
-Continuity testing
-Open / short circuit testing
-DC level testing
-Cable assignment test
-Open, short and cross of LAN cable
-2-wire (RJ11)/4-wire (RJ45) telephone cable
-Cable status testing (2-wire):
-Line DC detecting, anode and cathode determination
-Ringing signal detecting
-Open, short, and cross test
-High sensitivity & strong anti-jamming ability
-Bright white LED spotlight for dark environments
Specifications
-Max working current:
-Emitter: 10 mA
-Receiver: 30 mA
-Signal output electric status: 8Vp-p
-Signal transmission format: Multi-frequency impulse
-Induction distance less than 20mm
-Distance of signal transmission: ?3 km
-Power supply: DC, 2 x 9V battery (Not Included)
-Battery life: 50 hours continuously
-Storage Temperature: -20 ~ 50 C
-Operating Temperature: -10 ~ 40 C
Package Included
-1 x Emitter
-1 x Receiver
-1 x RJ45 Network Cable
-1 x BNC and RJ45 Converting Cable
-1 x Earphone
-1 x Toolkit Bag
-1 x Instruction Manual
-Standard Factory Package
