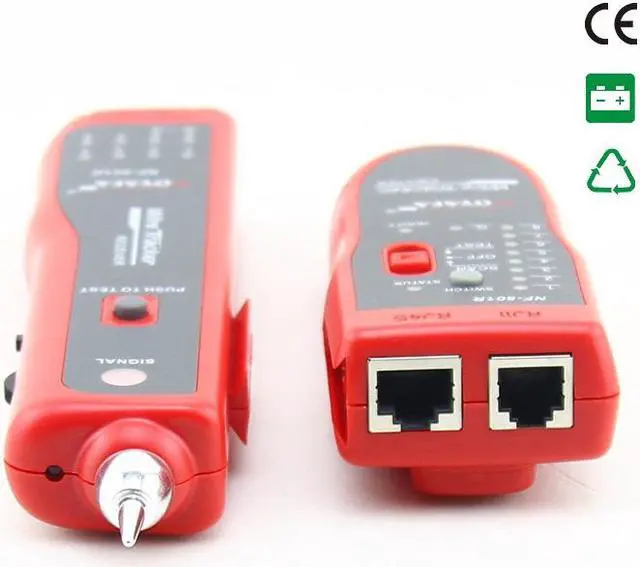

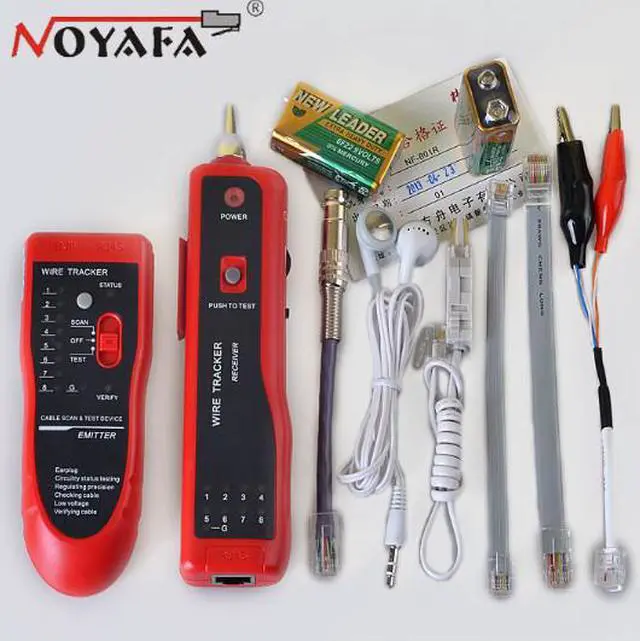

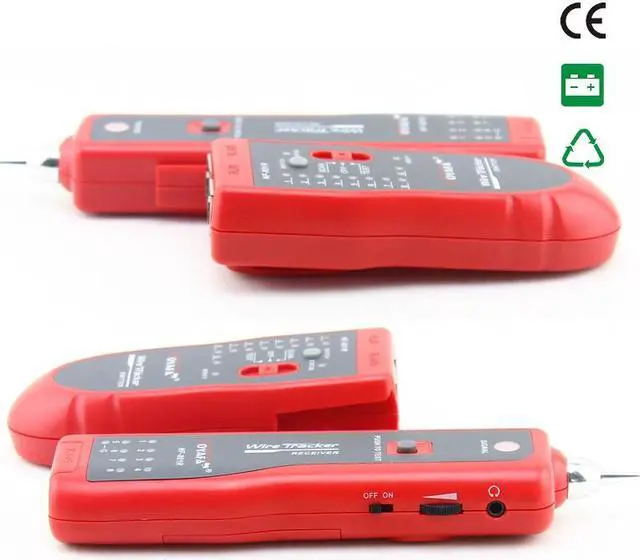

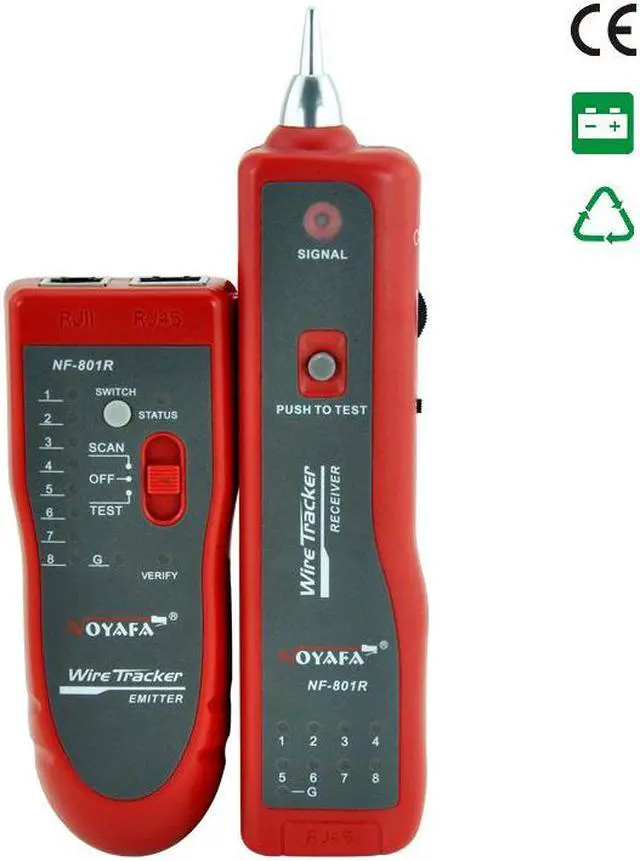

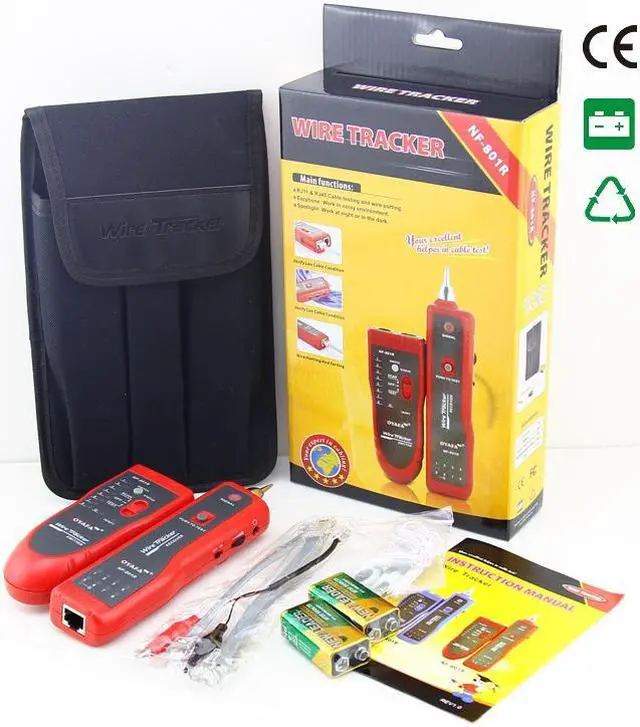

Multifunctional cable detector NF-801R,Network RJ11 RJ45 lan wire tracker Fault locator and cable tester LAN Cable Tester

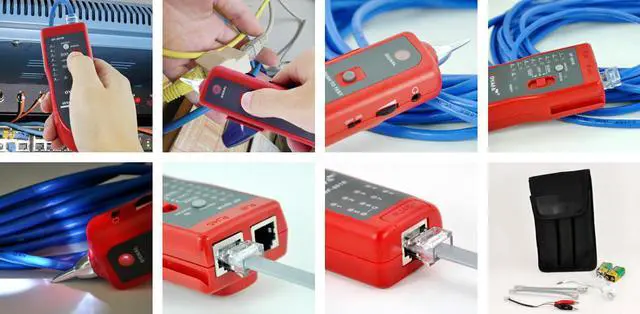

Multifunctional cable detector NF-801R Main functions 1. Quickly trace and identify cables among lots of unknown cables. 2. Check continuity of Lan cables. 3. Track the cables or wires, and diagnose the breakage. 4.
Visible indication: pin-to-pin cable map for individual cable (not by pairs). 5. Low Voltage alarm function. 6. Earphone permits use in noisy environments. 7. LED light assists use in dark corners.
Attention: 1. Don't connected high voltage lines to avoid buring out the machine. 2. Put into the right place to avoid hurting others, because of the sharp part. 3. Connected the cable to the right port. 4. Read the user manual before use it.

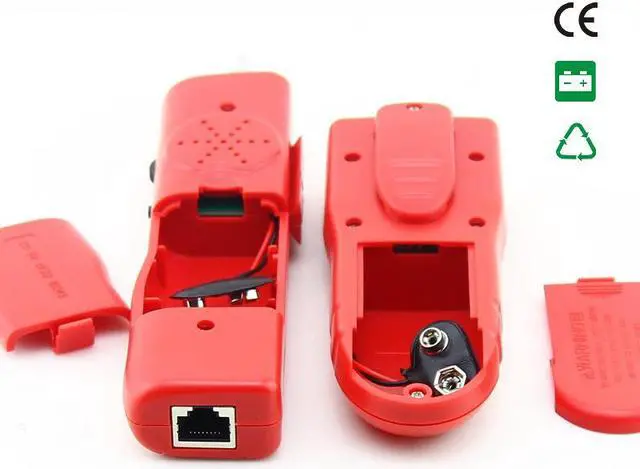

Technical parameters: NF-801 Transmitter specifications Tone frequency 200Hz Max. distance of transmission Up to 2 kilometers Max. working current Less than 10mA Volume Regulate Function Audio volume level control Tone mode 2 Tones, adjustable Compatible connectors RJ11, RJ45 Max. signal voltage 8Vp-p LED lights display Wiremap, tone, tracing Voltage protection AC 60V/DC 42V Battery Type DC 9.0V (NEDA 1604/6F22) x 1pc Dimensions (LxWxD) 15 x 3.7 x 2cm NF-801 Receiver specifications Frequency 200kHz The Max. working current Less than 30mA Earphone jack 1 Battery Type DC 9.0V (NEDA 1604/6F22) x1pc (NO included) Dimensions (LxWxD) 12.2 x 4.5 x 2.3 cm
