Noyafa NF-8601W Multi-functional Nework cable tester For RJ45, RJ11, BNC, PING/POE 8 Identif, Network Cable Tester LAN RJ11 RJ45 BNC STP/UTP 5E,6E LAN Cable Tester FOR 8 pc ports
- High quality Network Cable Tester Tester LAN RJ11 RJ45 BNC STP/UTP 5E,6E LAN Cable Tester FOR 8 pc port
Overview
Specs
Reviews (1)
NEW NOYAFA-NF-8601W Network Cable Tester Tester LAN RJ11 RJ45 BNC STP/UTP 5E, 6E LAN Cable Tester FOR 8 pc ports English version
Main function: 1. Check the PING, POE and cross-talk functions for Network cable.
2. Hunt the target cable from a bundle of cables, such as RJ11 / RJ45 / BNC. 3. Under the situation of connecting Ethernet switches / router to find target cable. 4. Locate the short circuit location for 2 cores cable. 5. Wiremap the short, open, cross, reverse circuit for RJ11 / RJ45 / BNC cables. 6. Test the RJ11, RJ45, BNC cable length under open circuit.
Application: 1. 3.7V lithium battery power supply, Convenient, durable, and durable. 2. 2.8 inches LCD Color screen, Clear, intuitive and personalization.
3. Mian tester can save and export 160 groups of data.
Technical indexes:
Attention: 1. Don't connected high voltage lines to avoid buring out the machine. 2. Put into the right place to avoid hurting others, because our item with sharp part. 3. Connected the cable to the right port. 4. Read the user manual before use it.
Main functions:
1. Check the PING, POE and cross-talk functions for Network cable.
2. Hunt the target cable from a bundle of cables, such as RJ11 / RJ45 / BNC.
3. Under the situation of connecting Ethernet switches / router to find target cable.
4. Locate the short circuit location for 2 cores cable.
5. Test the RJ11, RJ45, BNC cable length under open circuit.
6. Wiremap the short, open, cross, reverse circuit for RJ11 / RJ45 / BNC cables.
Application: 1. 3.7V lithium battery power supply, Convenient, durable, and durable. 2. 2.8 inches LCD Color screen, Clear, intuitive and personalization.
3. Mian tester can save and export 160 groups of data.
Technical indexes: NF-8601W Transmitter specifications Indictor LCD 320x240 mm, with back light Cable test types STP/UTP 5E, 6E network, telephone, coacial Max. distance of wiremap 2000 m Max. distance of hunting for RJ11 1000m Max. distance of hunting for RJ45 1000m Max. distance of hunting for BNC 1000m Max. distance of cable length for RJ11 2000 m Max. distance of cable length for RJ45 2000 m Max. distance of cable length for BNC 2000 m Min. distance of calibration 10 m Accuracy for RJ11 3% ( after calibration ) Accuracy for RJ45 5% ( after calibration ) Accuracy for BNC 5% ( after calibration ) Compatible connectors RJ11, RJ45, Coacial, PING/POE, BNC Cable map indication LCD (#1-#8) Battery Type 3.7V lithium battery 1800mAh Work temperature / humidity 10 C ~ -60 C / 0 C~70 C Dimension (LxWxD) 173x92x34mm NF-8601W Receiver specifications Cable hunting RJ11, RJ45, BNC Types of cable = 1 cores Battery Type 3.7V lithium battery 1800mAh Dimension (LxWxD) 183x58x35 mm NF-8601W Remote unit specifications Compatible connectors RJ11, RJ45, BNC Remote 8 Dimension (LxWxD) 106x32x30mm

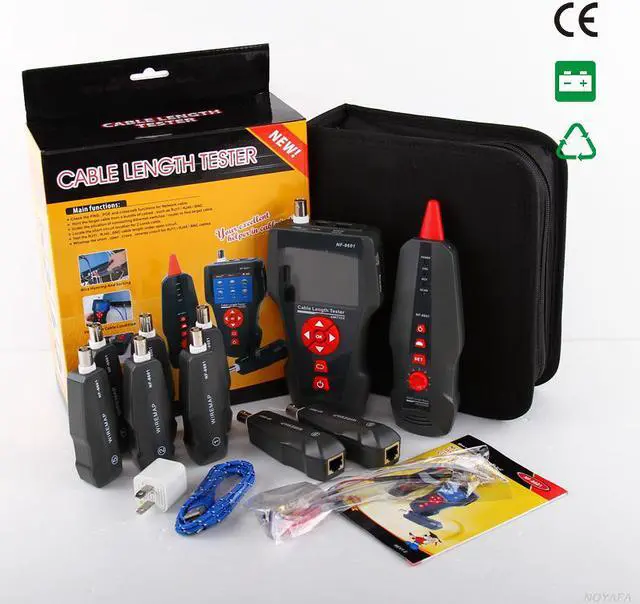

Accessories Included: telephone line adapter x 1 set network cable adapter x 1 set Cable clips x 1 set
Main function: 1. Check the PING, POE and cross-talk functions for Network cable.
2. Hunt the target cable from a bundle of cables, such as RJ11 / RJ45 / BNC. 3. Under the situation of connecting Ethernet switches / router to find target cable. 4. Locate the short circuit location for 2 cores cable. 5. Wiremap the short, open, cross, reverse circuit for RJ11 / RJ45 / BNC cables. 6. Test the RJ11, RJ45, BNC cable length under open circuit.
Application: 1. 3.7V lithium battery power supply, Convenient, durable, and durable. 2. 2.8 inches LCD Color screen, Clear, intuitive and personalization.
3. Mian tester can save and export 160 groups of data.
Technical indexes:
Attention: 1. Don't connected high voltage lines to avoid buring out the machine. 2. Put into the right place to avoid hurting others, because our item with sharp part. 3. Connected the cable to the right port. 4. Read the user manual before use it.
Main functions:
1. Check the PING, POE and cross-talk functions for Network cable.
2. Hunt the target cable from a bundle of cables, such as RJ11 / RJ45 / BNC.
3. Under the situation of connecting Ethernet switches / router to find target cable.
4. Locate the short circuit location for 2 cores cable.
5. Test the RJ11, RJ45, BNC cable length under open circuit.
6. Wiremap the short, open, cross, reverse circuit for RJ11 / RJ45 / BNC cables.
Application: 1. 3.7V lithium battery power supply, Convenient, durable, and durable. 2. 2.8 inches LCD Color screen, Clear, intuitive and personalization.
3. Mian tester can save and export 160 groups of data.
Technical indexes: NF-8601W Transmitter specifications Indictor LCD 320x240 mm, with back light Cable test types STP/UTP 5E, 6E network, telephone, coacial Max. distance of wiremap 2000 m Max. distance of hunting for RJ11 1000m Max. distance of hunting for RJ45 1000m Max. distance of hunting for BNC 1000m Max. distance of cable length for RJ11 2000 m Max. distance of cable length for RJ45 2000 m Max. distance of cable length for BNC 2000 m Min. distance of calibration 10 m Accuracy for RJ11 3% ( after calibration ) Accuracy for RJ45 5% ( after calibration ) Accuracy for BNC 5% ( after calibration ) Compatible connectors RJ11, RJ45, Coacial, PING/POE, BNC Cable map indication LCD (#1-#8) Battery Type 3.7V lithium battery 1800mAh Work temperature / humidity 10 C ~ -60 C / 0 C~70 C Dimension (LxWxD) 173x92x34mm NF-8601W Receiver specifications Cable hunting RJ11, RJ45, BNC Types of cable = 1 cores Battery Type 3.7V lithium battery 1800mAh Dimension (LxWxD) 183x58x35 mm NF-8601W Remote unit specifications Compatible connectors RJ11, RJ45, BNC Remote 8 Dimension (LxWxD) 106x32x30mm
Accessories Included: telephone line adapter x 1 set network cable adapter x 1 set Cable clips x 1 set
