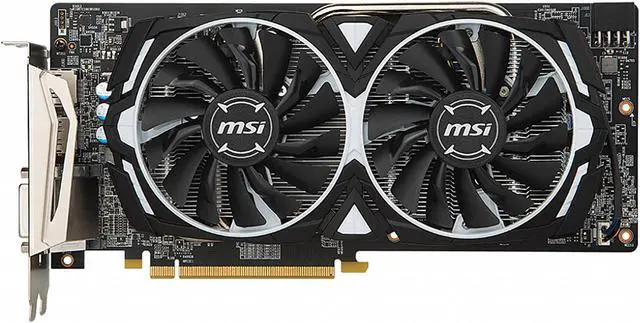

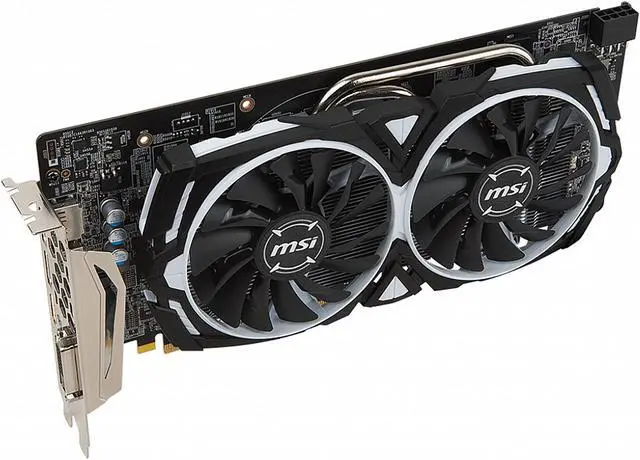

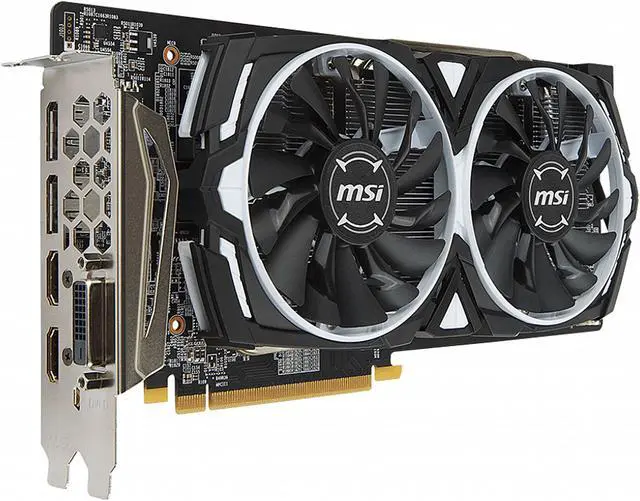

MSI Radeon RX 580 DirectX 12 RX 580 ARMOR 8G 8GB 256-Bit GDDR5 PCI Express x16 HDCP Ready CrossFireX Support Video Card

OPEN BOX Product Type
  • 8GB 256-Bit GDDR5
  • Boost Clock 1340 MHz

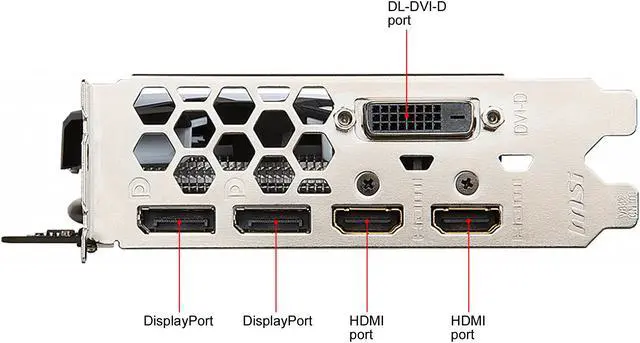

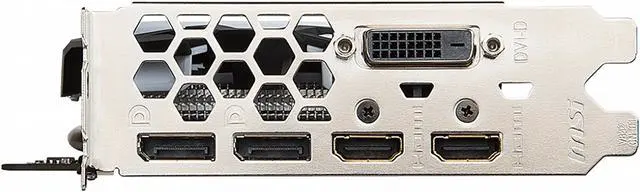

  • 1 x DL-DVI-D 2 x HDMI 2 x DisplayPort
  • 2304 Stream Processors
  • PCI Express x16
The Open Box Product Disclaimer applies to this product. Please note that this product is non-returnable and non-refundable.
Specs

Learn more about the MSI RX 580 ARMOR 8G

Model
Brand MSI
Model RX 580 ARMOR 8G
Interface
Interface PCI Express x16
Chipset
Chipset Manufacturer AMD
GPU Series AMD Radeon RX 500 Series
GPU Radeon RX 580
Boost Clock 1340 MHz
Stream Processors 2304 Stream Processors
Memory
Effective Memory Clock 8000 MHz
Memory Size 8GB
Memory Interface 256-Bit
Memory Type GDDR5
3D API
DirectX DirectX 12
OpenGL OpenGL 4.5
Ports
Multi-Monitor Support 4
HDMI 2 x HDMI
DisplayPort 2 x DisplayPort
DVI 1 x DL-DVI-D
Details
CrossFireX Support Crossfire, 2-Way
Virtual Reality Ready Yes
Cooler Double Fans
Thermal Design Power 185W
System Requirements Recommended PSU: 500W
Recommended PSU Wattage 500W
Power Connector 8-Pin
Dual-Link DVI Supported Yes
HDCP Ready Yes
Features
Features Armor 2X Thermal Design
TORX Fan:
- Dispersion: fan blade Steep curved blade accelerating the airflow.
- Traditional fan blade: Provides steady airflow to massive heat sink below.
Zero Frozr: Stopping the fan in low-load situations, keeping a noise-free environment.
Advanced Airflow Control technology: Improves cooling efficiency by using advanced aerodynamics to focus airflow.

Afterburner Overclocking Utility
Wireless control through Android/iOS devices.
Predator: In-game video recording.
Kombustor: DirectX12 benchmark.
Supports multi-GPU setups.

Military Class 4 Components
Certified to MIL-STD-810G standards for top stability and quality.
Built with Hi-c CAP, Solid CAP, and New SFC components.
Form Factor & Dimensions
Max GPU Length 269 mm
Card Dimensions (L x H) 10.59" x 4.92"
Slot Width 2 Slots
Additional Information
First Listed on Newegg June 22, 2020

Warranty & Returns

Warranty, Returns, And Additional Information

Return Policies

  • Return for refund within: non-refundable, this item is Final Sale
  • Return for replacement within: non-replaceable, this item is Final Sale
  • This item is covered by Newegg.ca's Final Sale Return Policy.
  • 15% restocking fee may apply.
  • Read full return policy for details.
